Features:
- It adopts an integrated design, equipped with dual start buttons, safety light curtains and other protective devices, ensuring safe and reliable operation.
- The pressure plate is made of aviation aluminum alloy, featuring excellent wear resistance.
- It is equipped with a large-area pressure plate, enabling a maximum effective hot-pressing area of 160*260mm.
- Driven by an air cylinder, the pressure can be adjusted as needed.
- It uses rod heaters, which offer good temperature uniformity and easy replacement.
- With an optional short-circuit tester, it can conduct hot-pressing short-circuit tests on battery cells.
| Specifications: | |
| Power | Single-phase AC220V±10%, frequency 50Hz (AC110V/60Hz customizable), power 2.8KW |
| Operating Environment | Recommended ambient temperature: 25±3℃, humidity: 30～90RH, no vibration or electromagnetic interference |
| Air Supply | 0.4～0.6MPa compressed air (when used in a glove box, the gas source is inert gas) |
| Working Pressure | 150～2000KG, repeatability ±20KG. Displayed via a pressure gauge, pressure adjusted manually with a barometer (affected by external air supply pressure fluctuation and pressure gauge reading accuracy) |
| Pressurization Direction | Top-down pressurization |
| Heating Temperature | Max. 120℃ |
| Pressure Plate Material | Aviation aluminum alloy |
| Hot-pressing Size | Max. L260mm * W160mm |
| Pressurization Stroke | 90mm |

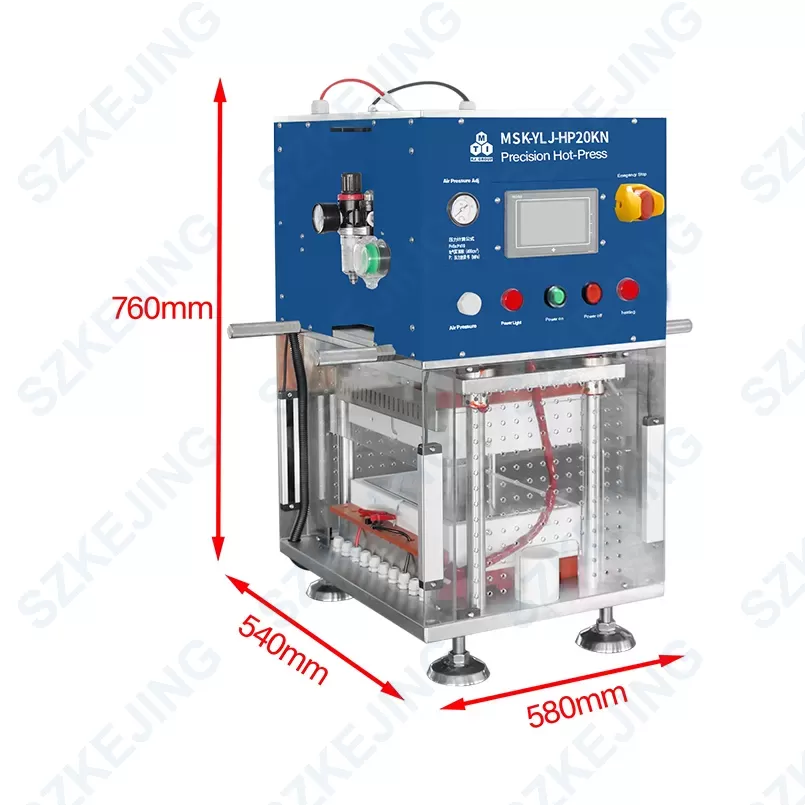

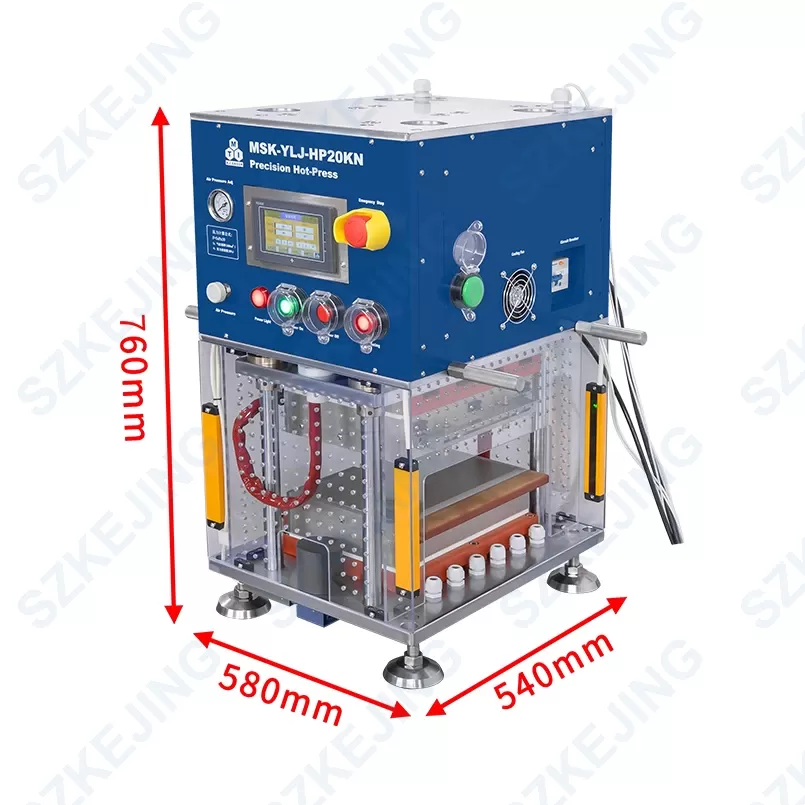

| Dimension | Host unit L580*W540*H760mm (Refer to the actual product) |
| Weight | About 180kg |
| Warranty | 1 year |
