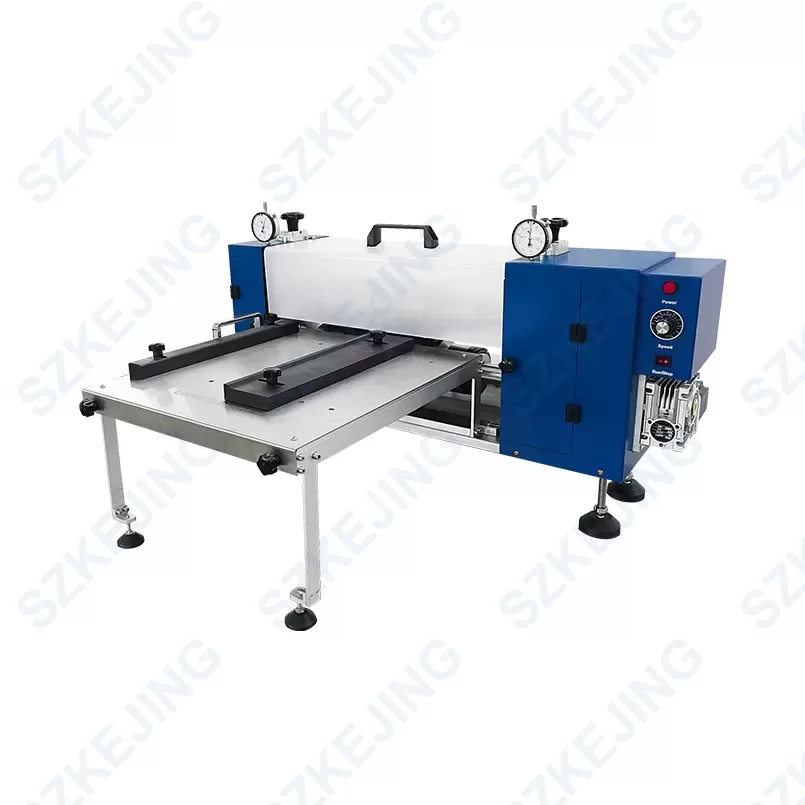

Features:
- Sheet feeding, upper and lower circular knife slitting method;
- Ultra-fine grain alloy tungsten steel blades, with good slitting effect and long service life;
- Wide thickness range of slit materials, precise display for cutting depth adjustment;
- Motor-driven, equipped with feeding guide, minimal burrs in slitting;
- Slitting width can be adjusted by replacing spacing sleeves (spacing sleeves of different widths need to be customized), and can also be achieved by configuring a spare knife shaft;
- Open-type knife shaft fixing, good equipment integrity, easy operation.
| Specifications: | |
| Power | Single-phase AC 100-220V±10%, frequency 50Hz / 60Hz, power 100W, grounding resistance ＜4Ω |
| Operating Environment | Recommended ambient temperature: 25±3℃, humidity: 30-90RH, no vibration or electromagnetic interference |
| Slitting Method | Single-piece rolling cut |
| Cutter Type | Upper and lower circular knives for opposite cutting |
| Slitting Blade | Ultrafine grain tungsten alloy steel, diameter Φ100mm |
| Slitting Width | Adjustable range: 20-230mm, customizable to 20-280mm |
| Width Adjustment | Adjusted by replacing spacers, standard: 4 pieces (56/56/58/58) |
| Thickness | 10~300μm |
| Burr Condition | ≤25μm |
| Cutting Depth | Adjustable 0.2-0.4mm, displayed by micrometer |
| Slitting Speed | Max. 4m/min |

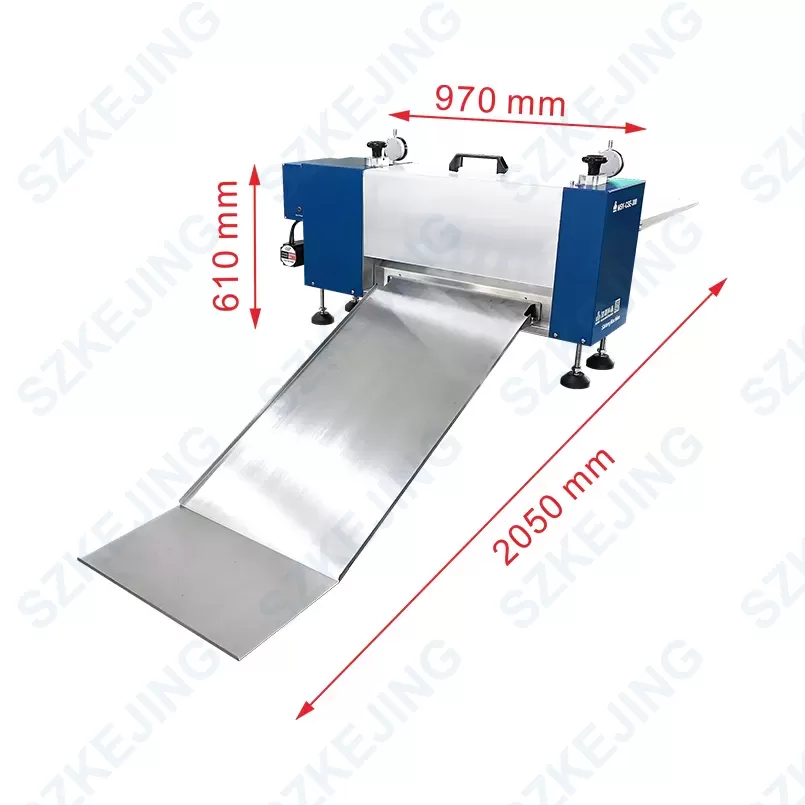

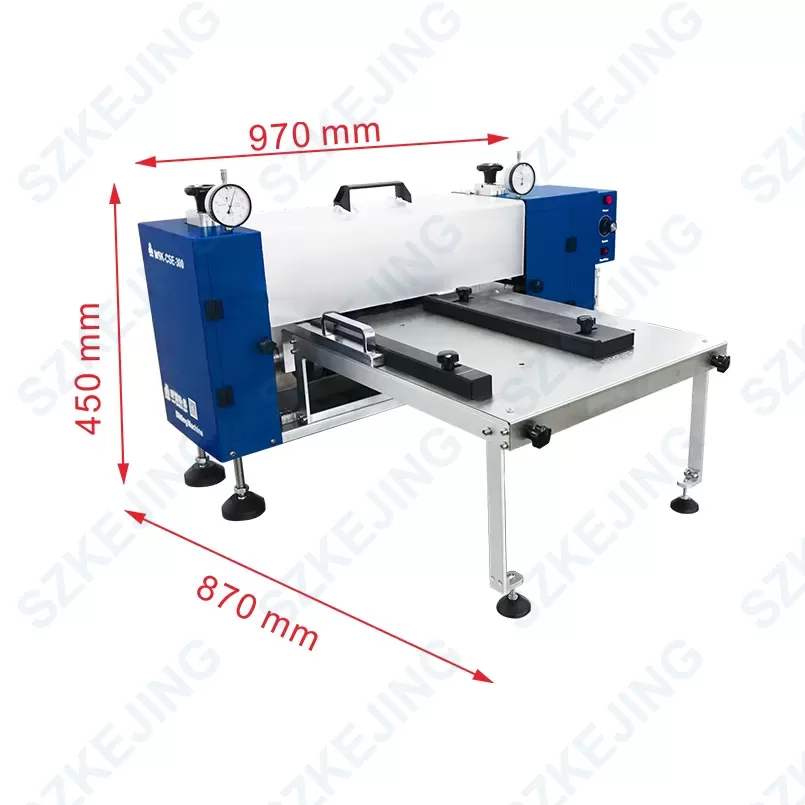

| Dimension | L1010*W840*H470mm (Long electrode sheet platform: L2050*W840*H640) |
| Weight | About 103Kg |
| Warranty | 1 year |
