Features
- Patented design, with excellent craftsmanship, ensuring durability and reliability.
- Capable of cutting single-layer separator. (Under special circumstances, it can cut with weighing paper or A4 paper as a cushion.)
- PTFE material of mould can be customized to cut metal lithium sheets.
- Manual operation, compatible with different cutting dies, enabling punching of various sizes, squares, or round pieces.
- Punched products are burr-free, indentation-free, and have a good appearance.
- Compact overall design, accessible through a transfer chamber with a diameter of more than 230mm.
| Specifications | |
|---|---|
| Cutting Pressure | Max.200kg |
| Stroke Length | Max.16mm |
| Pouncing Material | 0.01 ~ 0.5mm thick sheet, lithium battery film and pole sheet can be punched. |
| Working Table | L120mm x W120mm |
| Punching die | Diameter:φ3-φ24mm, regular series:φ10/φ12/φ14/φ15/φ16/φ19/φ20mm （customization） |
| Standard die | Φ14mm and Φ16mm |
| Receiving Box | anti-static ABS |

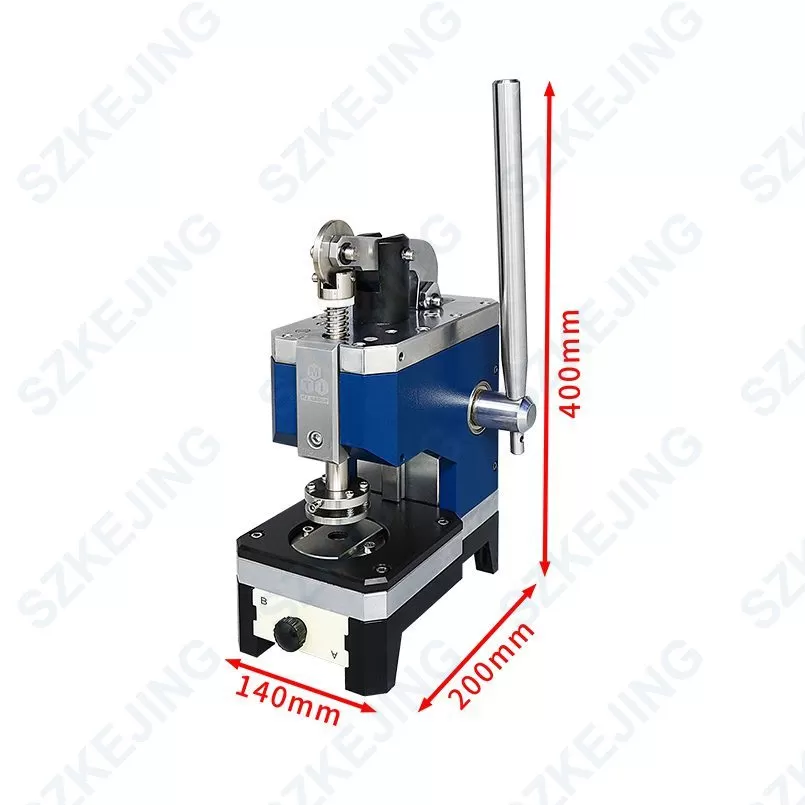

| Dimension | L140mm*W200mm*H400mm |
| Weight | About 16kg |
| Warranty | 1 year |
