Functional Features of Solid State Coin Cell Fixtures:
Simple structure and quick – assembly design, facilitating fixture disassembly and battery powder filling.
Fixture made of steel material, corrosion – resistant, and capable of withstanding large pressure.
Corrosion – resistant sealing structure, ensuring cavity sealing while preventing corrosion.
Equipped with conductive columns for convenient charging and discharging tests.
Functional Features of Solid – State Battery Pressure Test Kits:
Simple structure and quick – assembly design, facilitating solid – state battery installation and disassembly.
Thickened frame, allowing battery fixtures to be loaded from the side without completely disassembling screws.
Equipped with insulating gaskets to reduce interference and ensure stability during charging and discharging tests.
Built – in pressure sensors that can be connected to pressure testers to monitor the test pressure of battery fixtures.
Multiple test kits can share one pressure tester (a pressure tester can only connect to one test kit at a time).
Functional Features of Pressure Testers:
Built – in multi – stage amplification chips, with independent power supply for sensor operation.
Multiple sensitivity inputs available for switching.
High speed and high dynamic response frequency.
Good long – term stability and anti – interference performance.
Capable of grid calibration.
Two modes: automatic/manual calibration.
Technical Parameters of Solid State Coin Cell Fixtures:
| Fixture Material | Mold steel, PEEK
|
| Working Environment | Temperature: 25 ± 3°C, Humidity: 30 – 90% RH or lower |
| Inner Cavity Size | Φ10mm |
| Fixture Size | Approximately Φ54mm × 80mm |
| Weight | Approximately 350g |

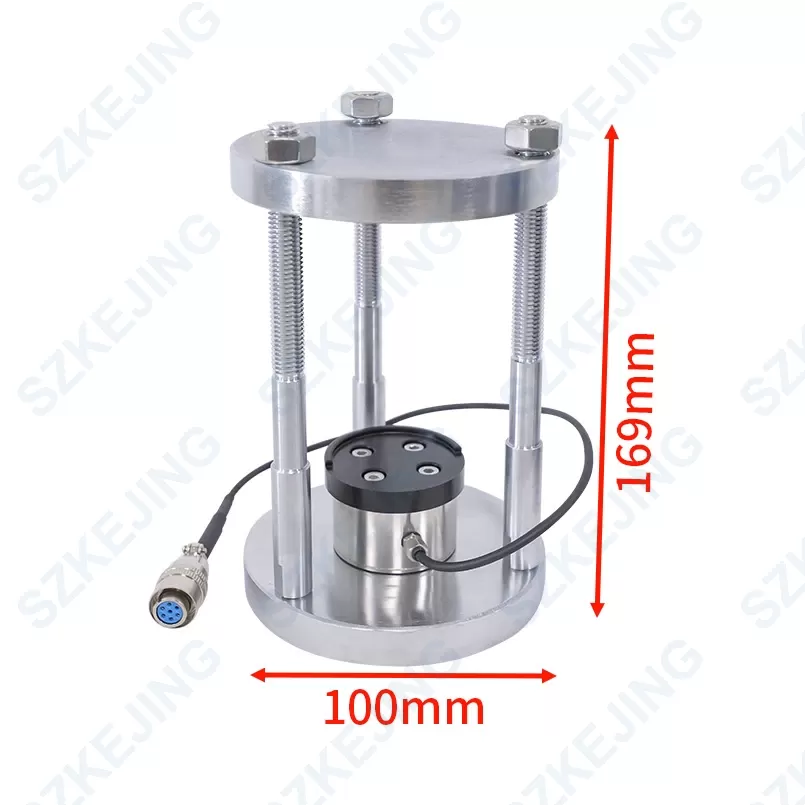

Technical Parameters of Solid State Battery Pressure Test Kits：
| Pressing Method | The upper plate presses down, and the screw is tightened.
|
| Working Environment | Temperature: 25 ± 3°C, Humidity: 30 – 90% RH or lower |
| Testing Instrument | Pressure tester |
| Pressure Range | Max: 500kg |
| Equipment Size | Approximately Φ100mm × 169mm |
| Weight | Approximately 2.3kg |

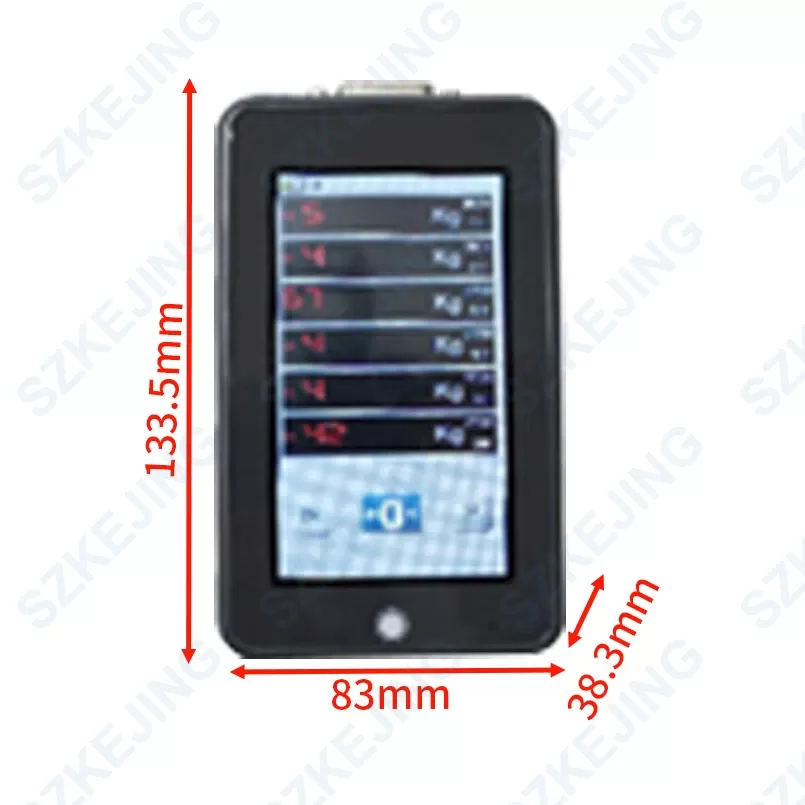

Technical Parameters of Pressure Tester:
| External Power Supply | 5VDC, power consumption approximately 5W |
| Operating Environment | Temperature: -10 ~ +50°C, humidity below 85% RH |
| Display Mode | LCD touch screen |
| Number of Channels | Single – channel |
| Non – linearity (Static) | 0.01% |
| Hysteresis | 0.01% |
| Repeatability | 0.01% |
| Output | RS485 |
| Resolution | 1/50000 |
| Sampling Speed | (10 – 1600) Hz adjustable |
| Transmission Output | RS485 |
| Equipment Size | Approximately L83mm * W133.5mm * H38.3mm |
