Features:
- It adopts a voltage-stabilizing circuit internally, ensuring stable welding output power and excellent welding consistency.
- It features strong welding power, enabling firm welding with low internal resistance and no false welding.
- It can realize laminated welding of up to 20 layers of copper foil (depending on the battery copper foil, its thickness and the tab thickness).
- The welding die is made of special die steel, which has good wear resistance and a long service life.
- It supports HMI operation and digital setting, making it convenient and easy to use.
| Specifications: | |
| Power | Single-phase AC 110V/220V (voltage adjusted via toggle switch in the electrical box), frequency 50Hz/60Hz, total power approx. 800W |
| Air Supply | Dry compressed air, 0.5-0.8MPa |
| Operating Environment | Recommended ambient temperature: 25±3℃; humidity: 30~90% RH; no vibration or electromagnetic interference |
| Welding Power | 50~800W (adjustable); output power changes with welding amplitude adjustment (0~100%) |
| Welding Time | Less than 0.4s (adjustable) |
| Welding Head & Base | Standard welding die area: 3×6 mm; two sets of welding heads and bases are provided as standard. (For welding the positive and negative tabs of lithium batteries) |
| Welding Process 1 | For welding of pure aluminum strip (0.10mm) + pure aluminum foil (0.016mm) with up to 20 layers |
| Welding Process 2 | For welding of pure nickel strip (0.10mm) + copper foil (0.009mm) with up to 20 layers |
| Start Mode | Dual-button start |

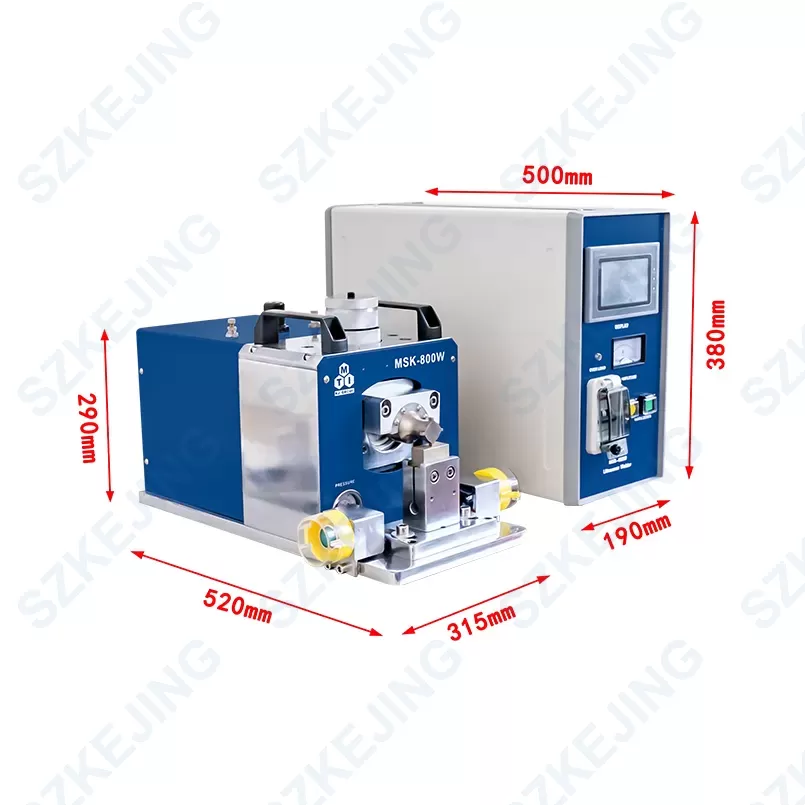

| Dimension | Working Unit: Approximately L 570 * W 320 * H 300 mm (including protruding parts; subject to the actual product).
Control Box: Approximately L 530 * W 200 * H 380 mm (including protruding parts; subject to the actual product). |
| Weight | About 52.5kg (subject to the actual product) |
| Warranty | 1 year |
