Features:

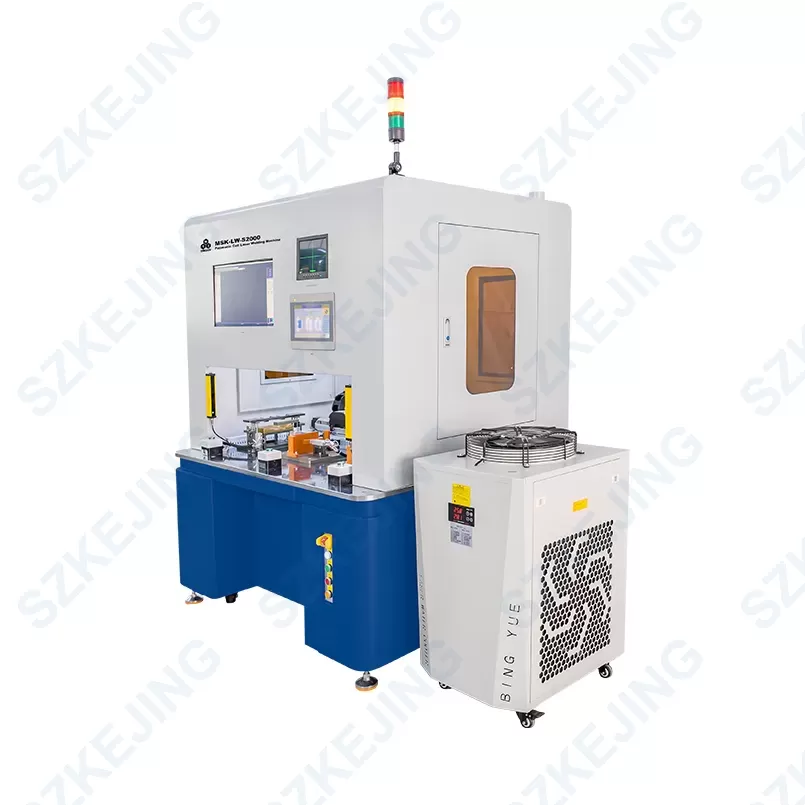

- Gantry dual-drive motion platform cabinet with long service life.
- Safe and Reliable: Access control switches are installed on all movable doors of the equipment, and a safety light curtain is mounted on the front to prevent accidental startup during debugging.
- Superior Welding Performance: The laser welding spot is fine, with high penetration depth, small taper, and high precision; the welded surface is flat and free of bubbles.
- Minimal Thermal Impact: The heat-affected zone (HAZ) during laser welding is small, resulting in minimal deformation of the workpiece.
- User-Friendly Welding Software: The welding software features simple programming and is easy to learn.
| Specifications: | |
| Laser Main Unit Parameters | |
| Power | Single-phase AC 220V, frequency 50Hz, power approx. 4KW (including water chiller) |
| Gas Supply | – Dry compressed air: 0.5-0.7Mpa, flow rate ＞100L/min – Inert gas (for preventing welder joint oxidation and blackening): 5-10L/min |
| Environmental Requirements | Recommended temperature: 25±5℃; Recommended humidity: 45%RH; Vibration ≤0.5G |
| Laser Output Power | 2000W |
| Laser Wavelength | 1075±10nm |
| Operation Mode | Continuous/Modulated |
| Power Adjustable Range | 10-100% |
| Long-term Power Stability | ±1.5% |
| Optical Fiber Length | 20m |
| Cooling Method | Water cooling |
| Water Cooling Temperature Requirement | 20～22℃ (determined by operating duration) |
| Machine Parameters | |
| Maximum Processing Size | Customized according to the size of the prototype cell |
| Maximum Workpiece Height | Customized according to the size of the prototype cell |
| 880mm | |
| 230mm | |
| 240mm | |
| 500mm/s | |
| 500mm/s | |
| 500mm/s | |

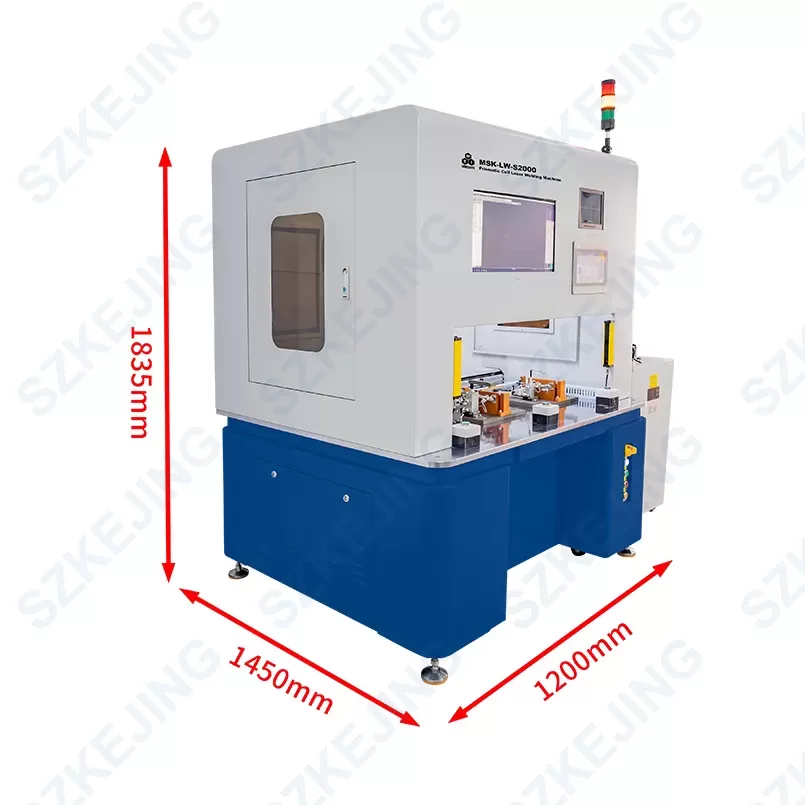

| Dimension | |
| Weight | |
| Warranty | 1 year |
