Features:
- It can cut roll materials to a fixed length, with adjustable length settings and compensation correction function.
- It can perform fixed-point color-tracking cutting on roll materials according to the surface characteristics of the rolls. The dimensions before and after color tracking can be set, and it includes a compensation correction function.
- The blade adopts an inlaid hardened material, ensuring excellent cutting effect.
- The unwinding tension can be adjusted.
- It has a wide applicable range of roll material widths, ranging from 10 – 290 mm.
- The equipment is small in size and easy to operate.
- Controlled by PLC and touch screen, with (Chinese/English) interface switching for convenient operation.
- It can be customized to be placed and used in a glove box.
| Specifications: | |
| Power | Single-phase AC220V±10%, frequency 50/60Hz, power 110W (Customizable: single-phase AC 110V ±10%, frequency 60Hz, power 110W) |
| Compress Air Requirement | 0.5-0.8MPa |
| Acceptable Electrode Roll Size | Max. 300 mm O.D. |
| Acceptable Electrode Width | Max. 290mm |
| Linear Speed Allowed for Cutting | Max. 3 m/min |
| Burr Condition | ≤0.012MM |
| Tension Control | Max. 30N |
| Unwinding Diameter | Max.300mm |
| Unwinding Shaft | 3-inch mechanical expanding shaft |
| Cutter Material | a) Tool holder: S136
b) Blade: Tungsten steel (standard) / White steel (optional) |

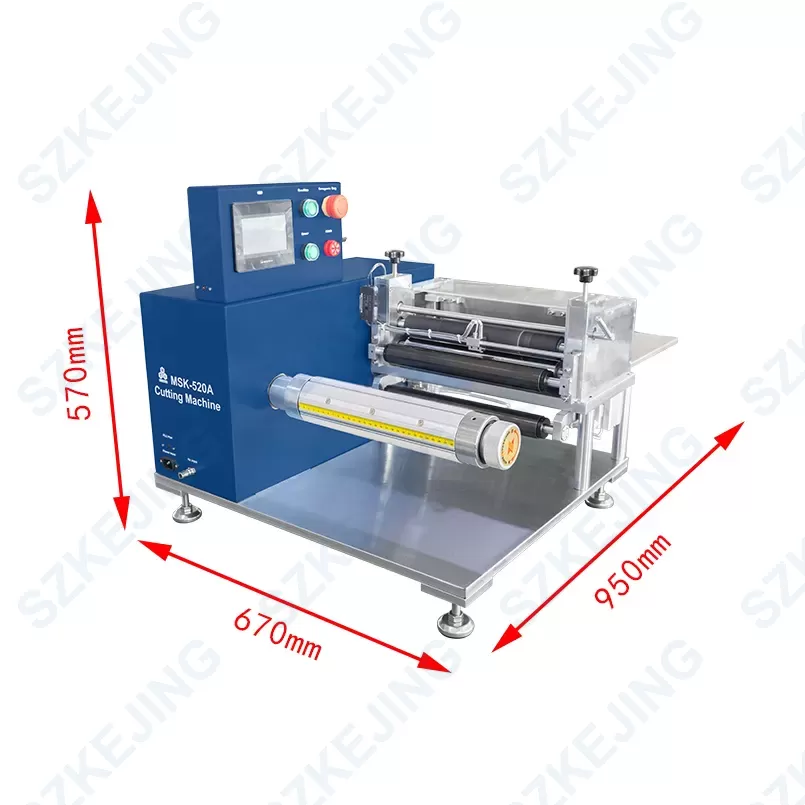

| Dimension | About L950*W670*H570mm |
| Weight | About 140Kg |
| Warranty | 1 year |
