Features:
- Manual loading and unloading; auxiliary fixtures can be equipped to achieve cutting function;
- Single-station structure, enabling cylinder cutting with adjustable cutting pressure;
- High-strength frame, paired with upper and lower precision molds, ensuring cutting accuracy;
- Dual-button long-press to start cutting; the cutter retracts immediately when the buttons are released, ensuring user safety.
| Specifications: | |
| Air Supply | 0.5-0.8MPa compressed air |
| Cutter Length | Total 300mm L, effective 280mm L |
| Workbench | Approximately W310mm * D200mm |
| Cutting Stroke | Approximately 15mm |
| Cutting Pressure | Max. 150Kg·f (0.6MPa) |
| Working speed | About 300～500 times per hour |

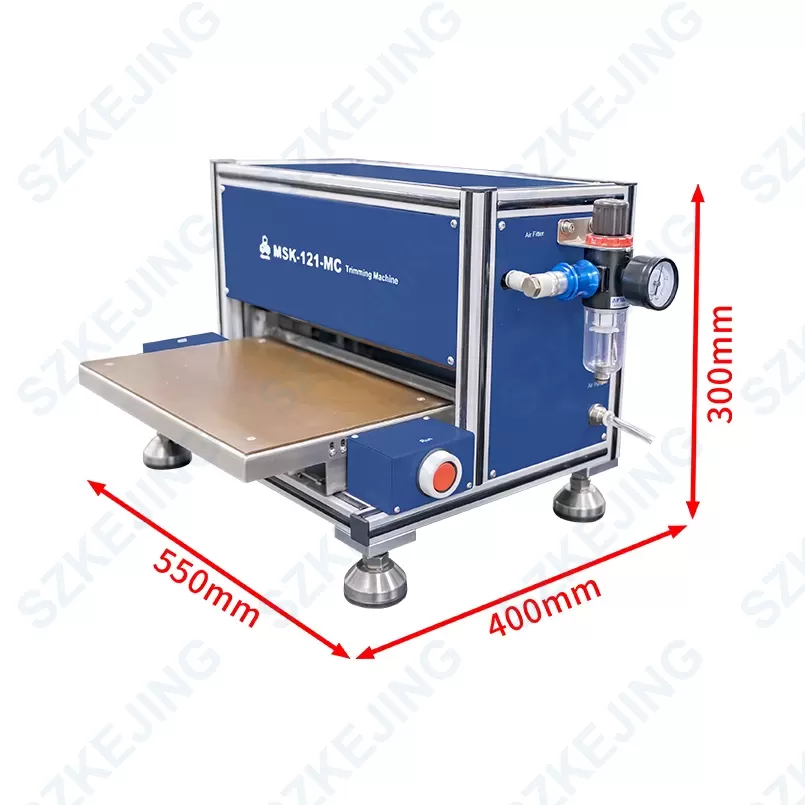

| Dimension | About W550*D400*H300mm |
| Weight | About 25Kg |
| Warranty | 1 year |
