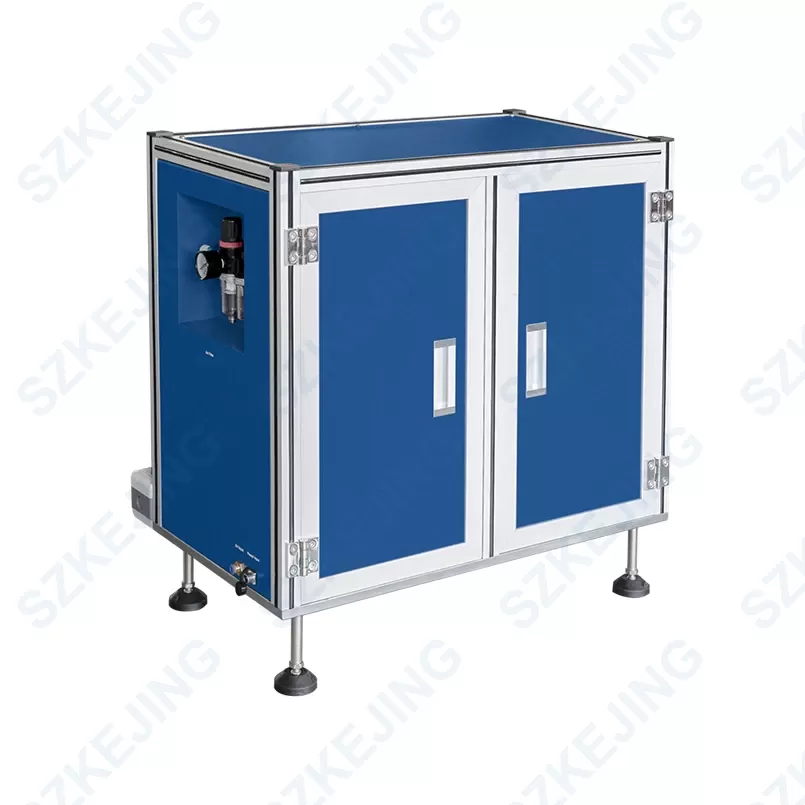

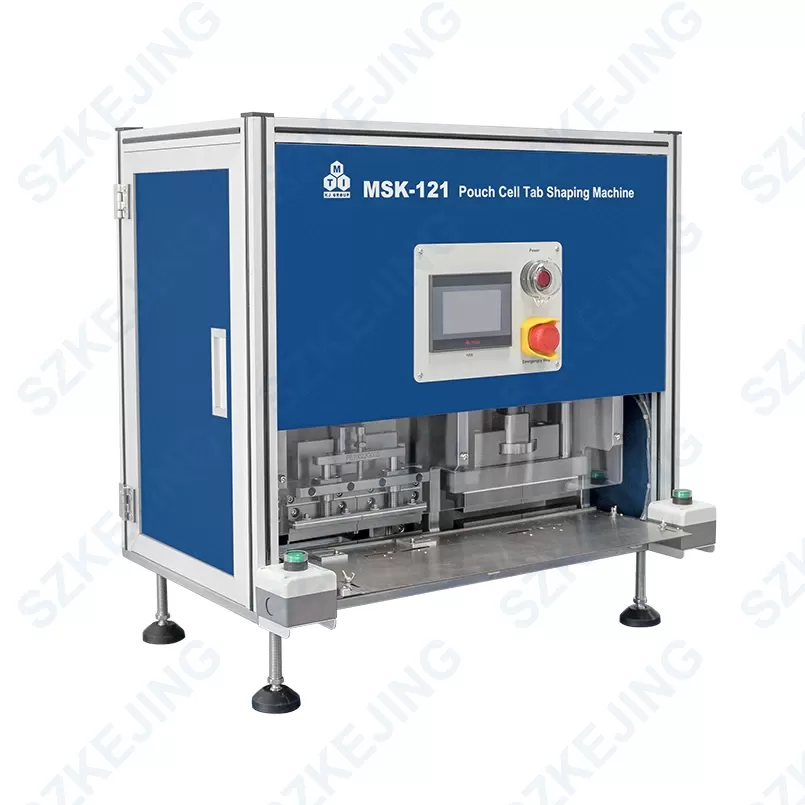

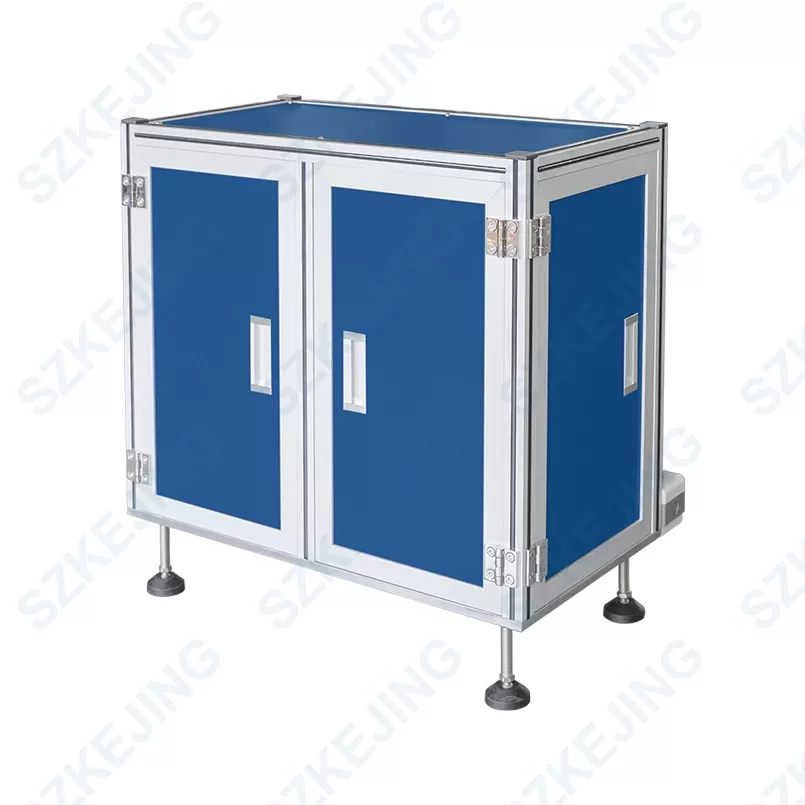

Features
- Compatibility: Support tab cutting before cell welding and tab shaping after welding.
- ESD protection: The cutting blade and pressing block are insulated to prevent short-circuit caused by static-electric breakdown of cell separator.
- Easy operation: Fixture transfer design for convenient handling.
- Adjustability: Down-stroke and working pressure of pressing block and cutting blade are adjustable, suitable for samples of different thicknesses.
- Durability: High-strength tool steel is adopted for cutting blade and shaping die to guarantee cutting & shaping performance and extend service life.
- Safety: Worktable is equipped with sensor for material detection; dual-button start is required to protect operator’s personal safety.
- Control system: PLC control with HMI human-machine interface for easy operation and maintenance.
- Structure design: Compact footprint, suitable for bench-top operation to save floor space.
Specifications
| Power | Single-phase AC110-220V±10%, frequency 50/60Hz, power 100W |
| Gas Source | 0.5-0.8MPa (0.6MPa recommended) |
| Applicable Cell | Max. L380*W210 (tab) mm, see the battery size diagram for details |
| Cutter Size | Double cutter. The effective length of a single cutter is 100mm, the thickness of the knife edge is 3mm, and the cutting stroke is 25mm adjustable |
| Pressing Block Size | Double pressing block, single pressing block length 106mm, width 25mm, 25mm adjustable down stroke |
| Cell Fixture | Standard 064660, other specifications can be selected |
| Cutting Pressure | Max. 10000N |
| Flattening Pressure | Max. 10000N |

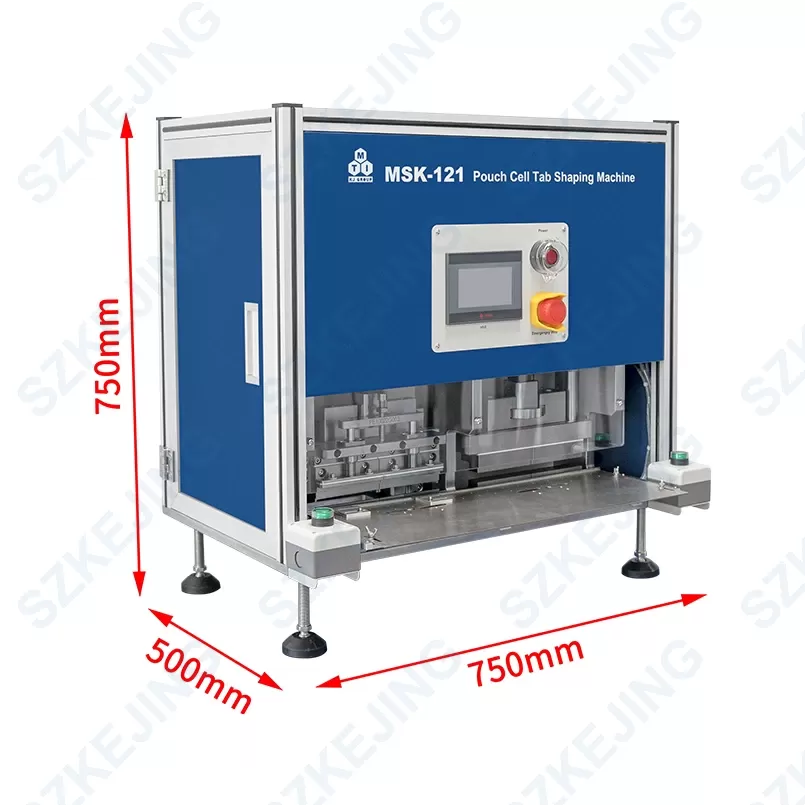

| Overall Dimensions | L750mm*W500mm*H750mm |
| Weight | About 140Kg |
