Application range:

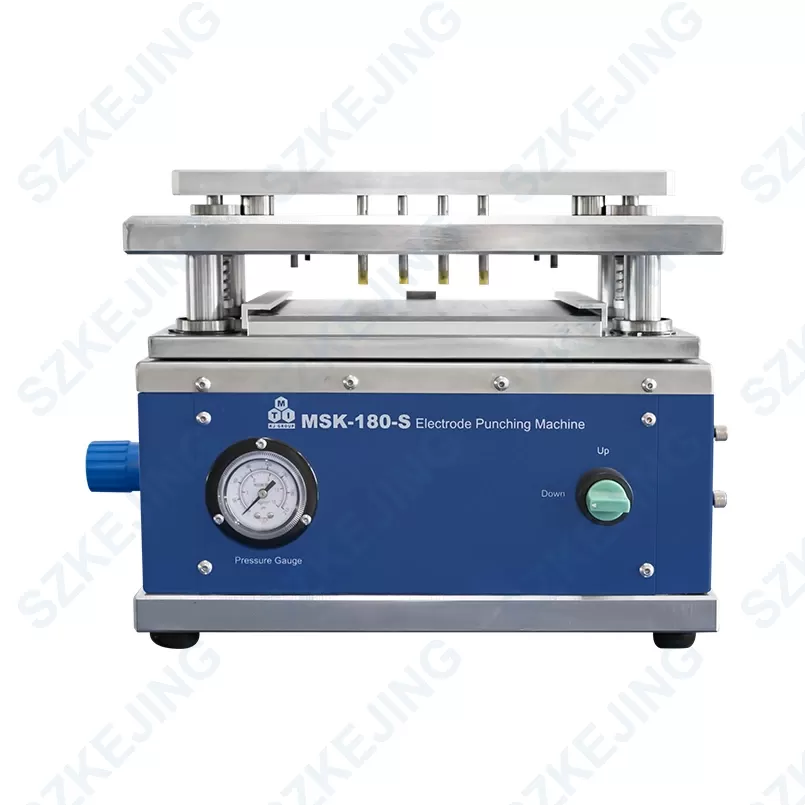

MSK-180-S is a die-cutting device applied to the positive and negative electrode sheets of lithium-ion stacked batteries. The equipment uses a pneumatic method to perform single-piece die-cutting on electrode sheets, and it can be placed in a glove box for use, which can provide various shapes of cutting die according to customer requirements to realize the forming and die-cutting of electrode sheets for batteries of different sizes.

Model:

MSK-180-S

Dimension:

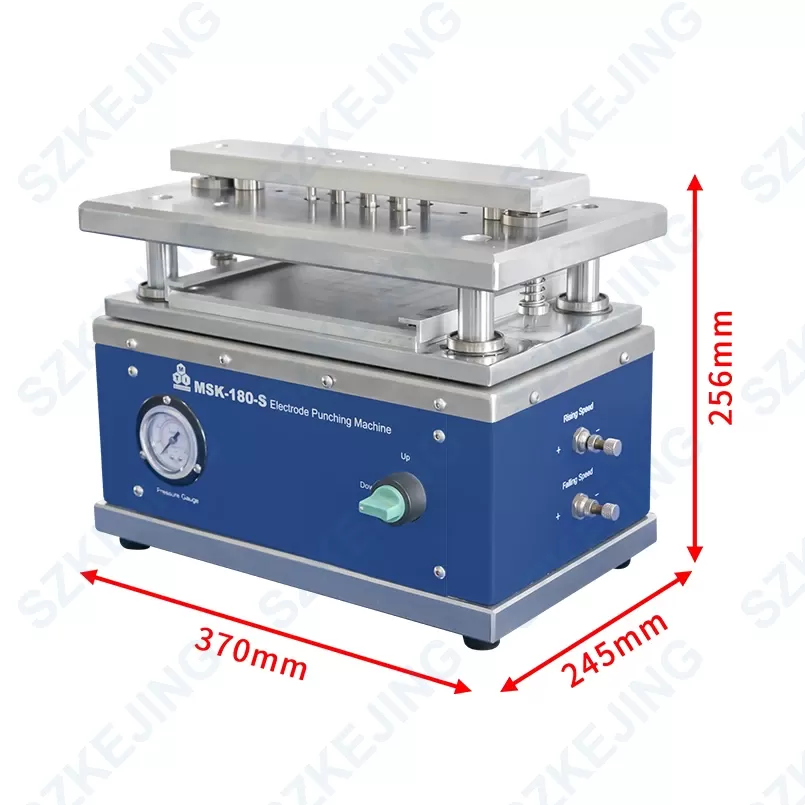

L370*W245*H245mm

Net weight:

About 38kg

Features

Piece feeding, die-cutting realized by knife template. It can be used in a glove box.
Driven by air cylinder, no power supply required, and the punching force and punching speed are adjustable.
High-strength frame, upper and lower precision pressing plates, and high-performance cutting tools ensure die-cutting accuracy.
Small burrs and little powder shedding after die-cutting.
A set of standard positive and negative cutting dies is provided as standard, and can also be made according to customer requirements.
The drawer-type design of the upper and lower cutting dies ensures operational safety.

Specifications

Gas Source	0.5-1.0MPa argon or nitrogen gas cylinder, or 0.7MPa compressed air (compressed air is not recommended for use in glove boxes)
Die-cutting Size	Max. L120*W80mm (including battery tabs)
Die-cutting Burrs	Vertical burrs ≤12μm, horizontal burrs ≤20μm
Standard Dies	Positive electrode 5643mm, negative electrode 5845mm; It can also be customized according to customer requirements
Pressure	1T; It is recommended to use a pressure of 500Kg (0.5MPa) for punching battery pole sheets
Stroke	12mm
Dimension	L370W245H245mm
Weight	About 38Kg
Warranty	1 year
