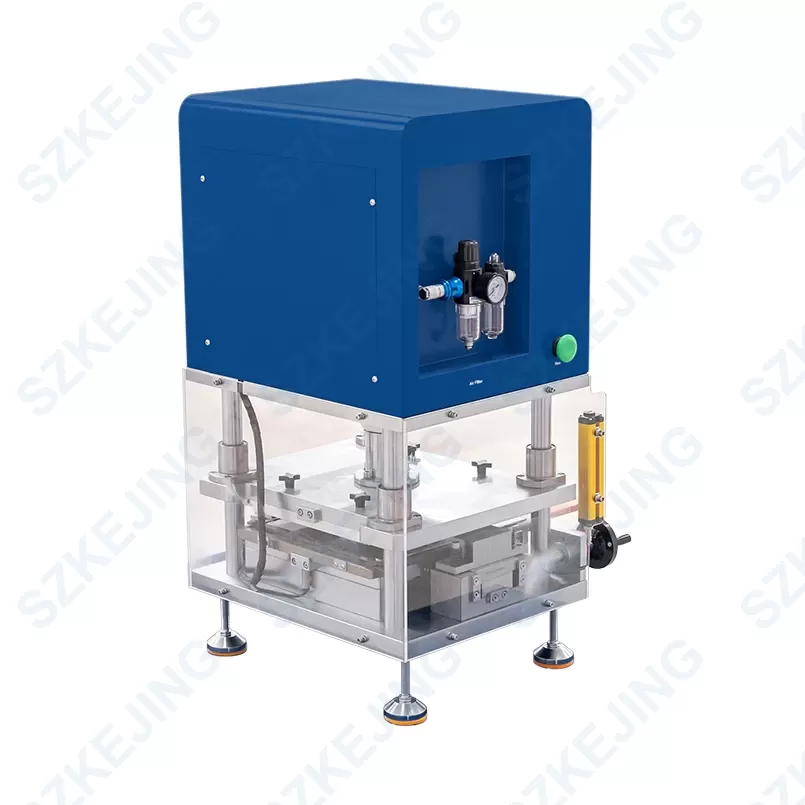

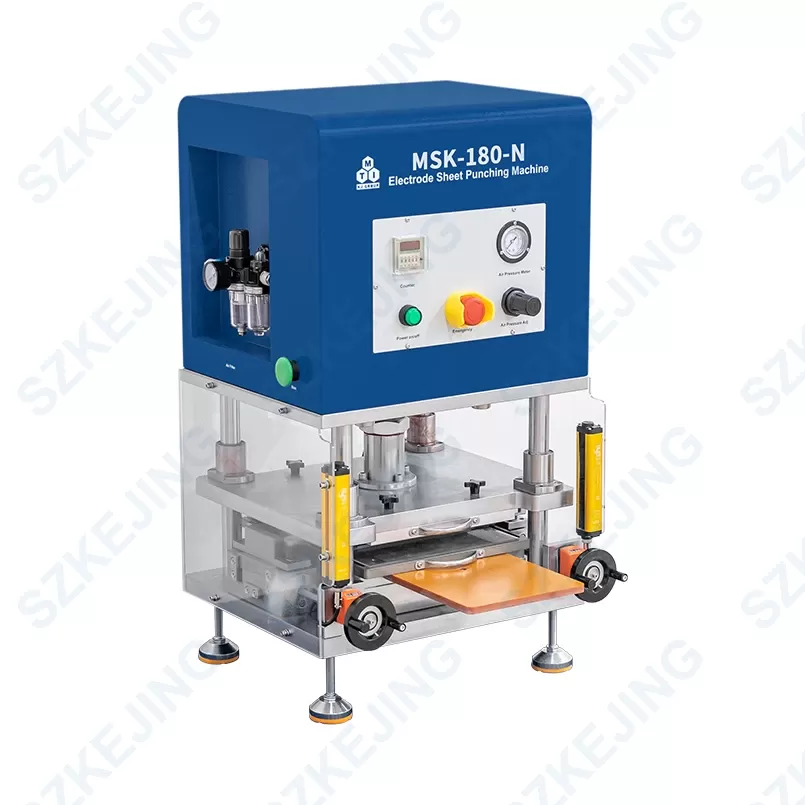

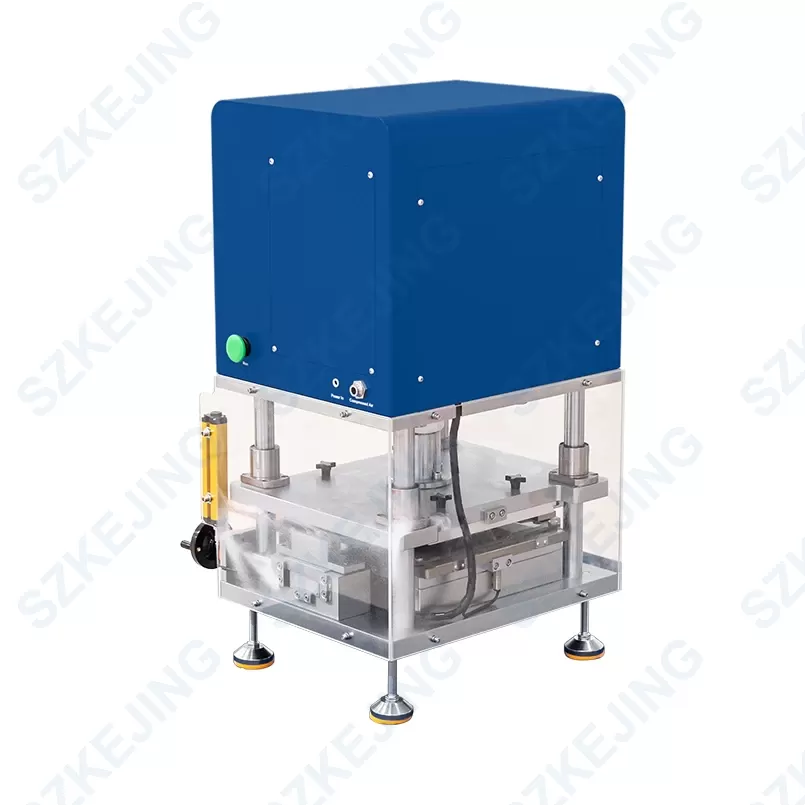

Semi-Automatic Die Cutter for Pouch Cell Electrode Sheet – MSK-180-N

Application range:

MSK-180-N is a die-cutting device applied to the positive and negative electrode sheets of lithium-ion stacked batteries. The equipment uses air cylinder to perform single-piece die-cutting on electrode sheets. It can provide various shapes of cutting die according to customer requirements to realize the forming and die-cutting of electrode sheets for batteries of different sizes.

Model:

MSK-180-N

Dimension:

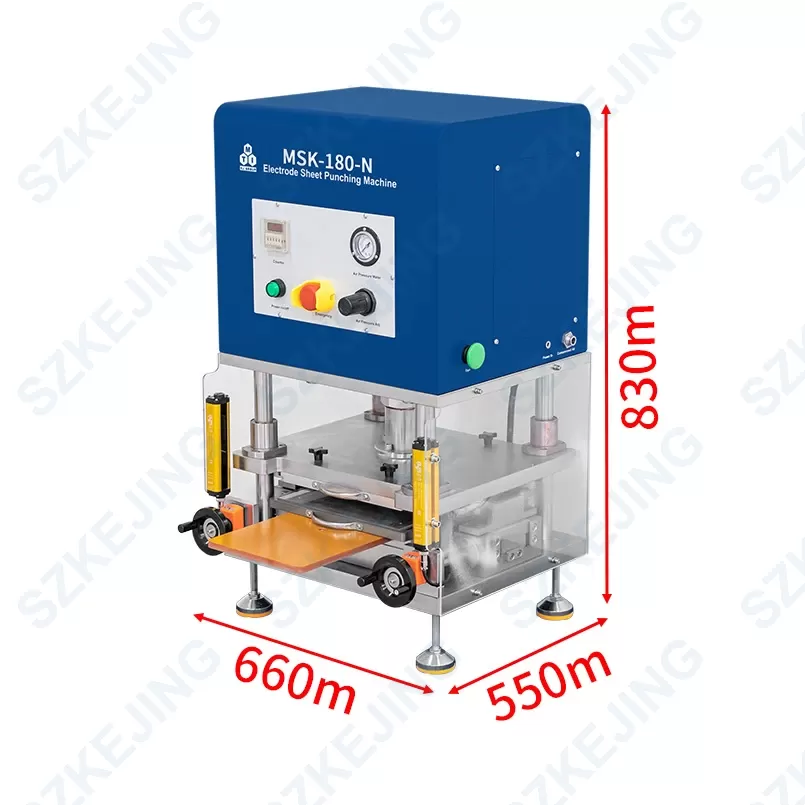

L550*W510*H830mm

Net weight:

About 180kg

Features

Driven by air cylinder, and the punching force and punching speed are adjustable.
Upper and lower precision pressing plates and high-performance cutting tools ensure die-cutting accuracy.
Small burrs and little powder shedding after die-cutting.
A set of standard positive and negative cutting dies is provided as standard, and can also be made according to customer requirements.
Digital adjustment of die-cutting depth (cutting amount).
Automatic counting of die-cutting times.
The design combines drawer-type feeding with safety light curtain interlocking to further ensure operational safety.
The baffle positions the pole sheets accurately and quickly.

Specifications

Power	Single-phase AC110-220V±10%, frequency 50/60Hz, power 60W
Gas Source	0.5-0.8MPa compressed air
Die-cutting Size	Max. L200*W200mm
Die-cutting Burrs	Vertical burr ≤12μm, horizontal burr ≤20μm
Standard Dies	Positive electrode 5643mm, negative electrode 5845mm (customizable)
Pressure	Max. 3T
Counting Method	Counter display
Dimension	L550W510H830mm
Weight	About 180Kg
Warranty	1 year
