Battery Internal Resistance Tester-BK-300

BK-300 battery internal resistance tester is a new – type instrument for testing battery internal resistance using alternating current. It can also test the battery voltage simultaneously. It has the characteristics of simple operation, practicality, reliability, and high performance – price ratio. The test adopts a four – wire fixture, effectively eliminating measurement errors caused by lead resistance. The tester can set battery internal resistance non – conformity alarm values according to user requirements. It is mainly used for sample production in battery material research and development, and is an ideal equipment for your production and assembly of batteries.

Technical Parameters

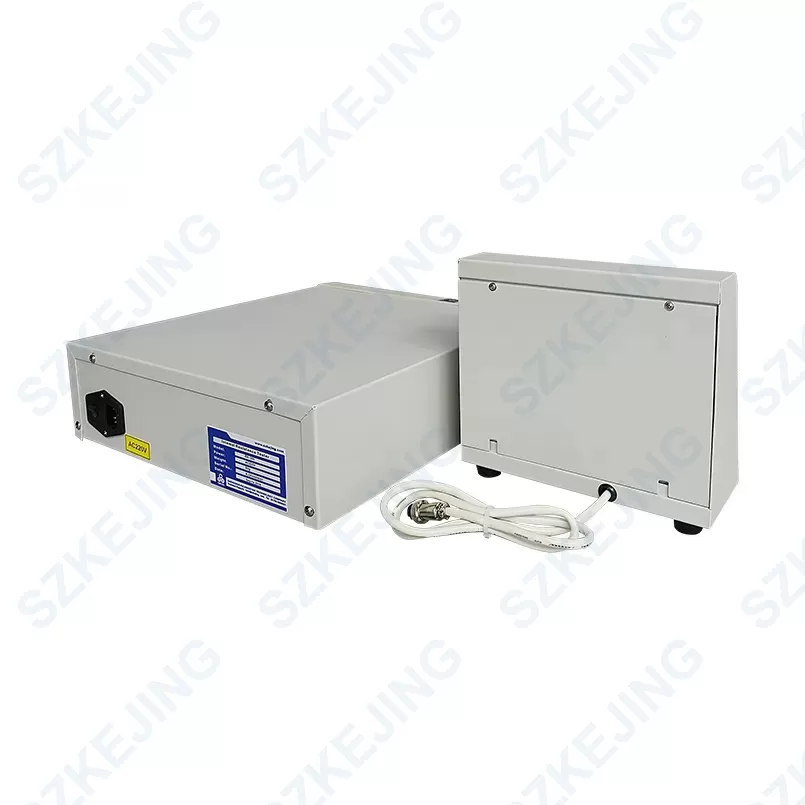

Power Supply	Single – phase AC220V ± 10%, frequency 50Hz, power about 10W
Working Environment	Temperature: 20°C ± 5°C, relative humidity ≤ 85%
Voltage Measurement Parameters	DC: 0 ~ 4.9999V ± (0.5% fs + 2 digits), display resolution 1mV DC: 5 ~ 19.999V ± (0.5% fs + 2 digits), display resolution 10mV
Resistance Test Parameters	0 ~ 299.9mΩ ± (0.5% fs + 5 digits), display resolution 0.1mΩ 300mΩ ~ 2999mΩ ± (0.5% fs + 5 digits), display resolution 1mΩ
AC Current Frequency	1 KHZ ± 0.1 KHZ
Reading Display Speed	2 – 3 readings per second
Temperature Uniformity	± 1.5°C
Internal Resistance Calibration	Potentiometer calibration (standard resistance box needs to be purchased separately)
Test Alarm	Can set internal resistance non – conformity alarm or conformity alarm

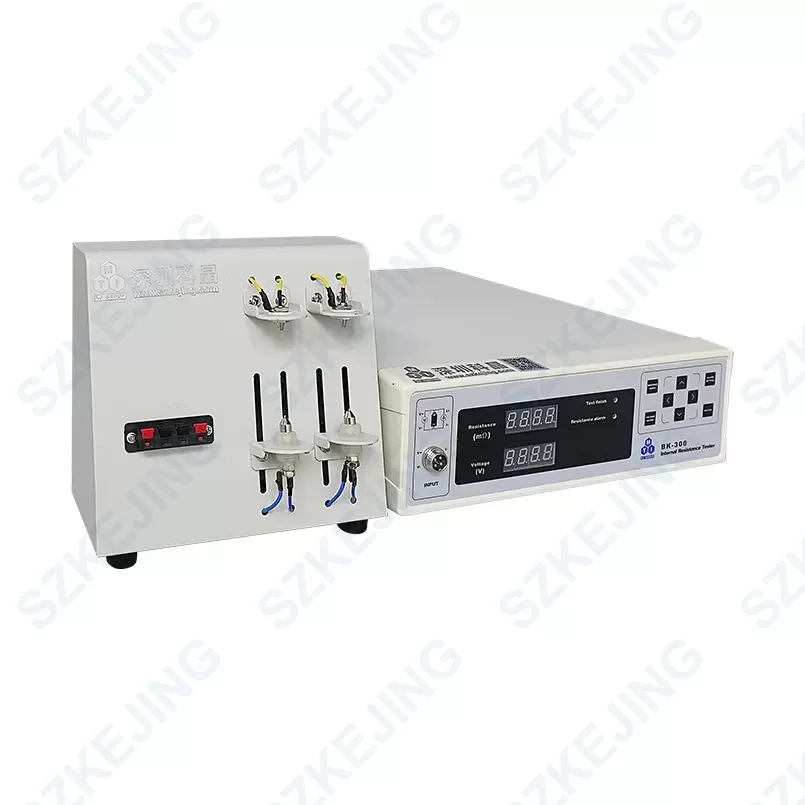

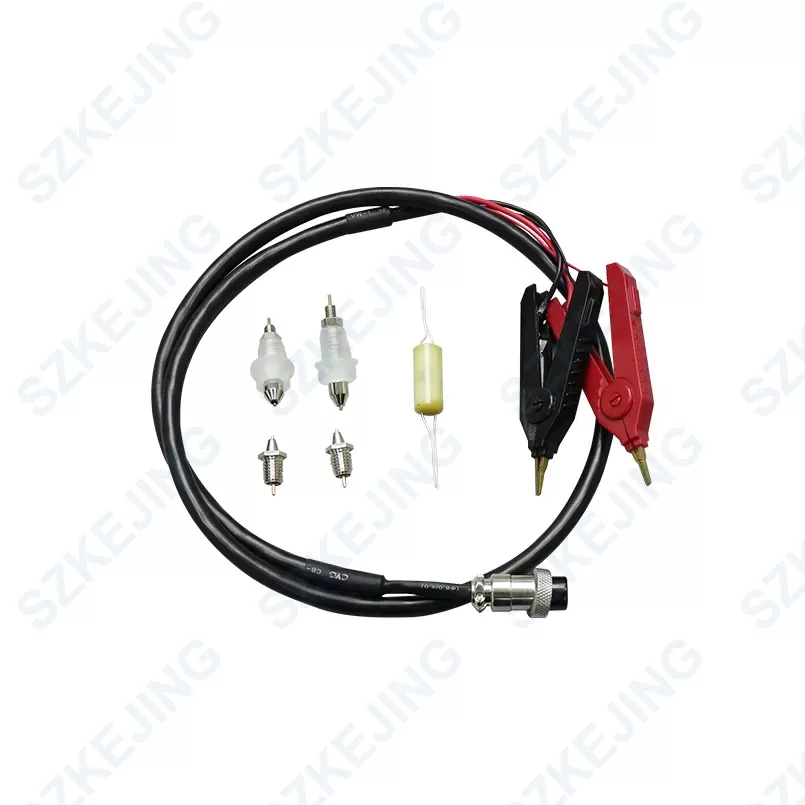

Fixture Type	Aviation plug, can be connected to fixture box or test line
Partition Number	Standard 4 pieces, maximum 18 pieces
Equipment Size	Approximately W370 × D340 × H115mm (excluding protruding parts)
