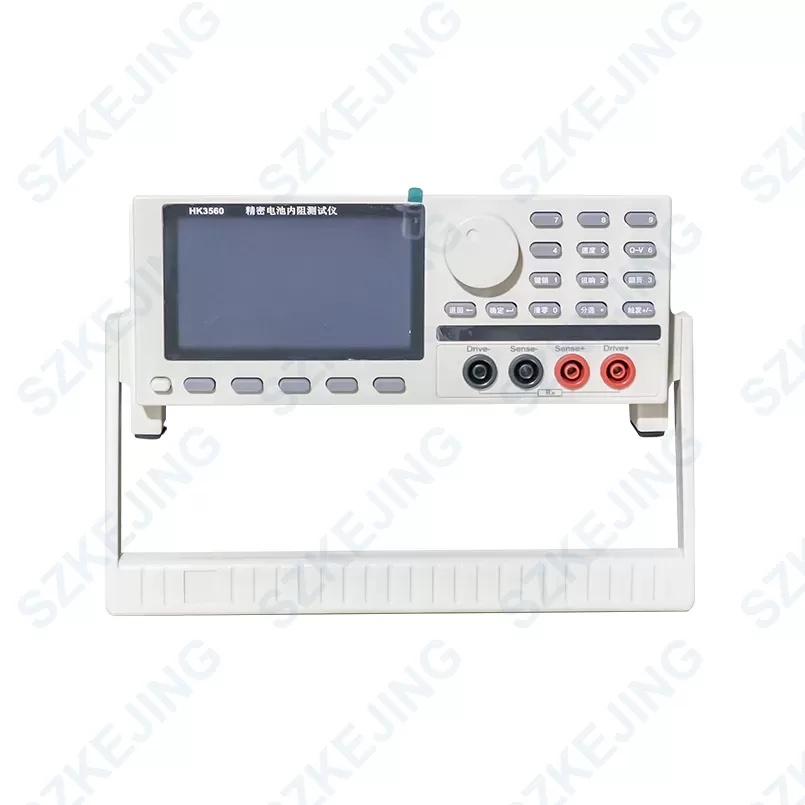

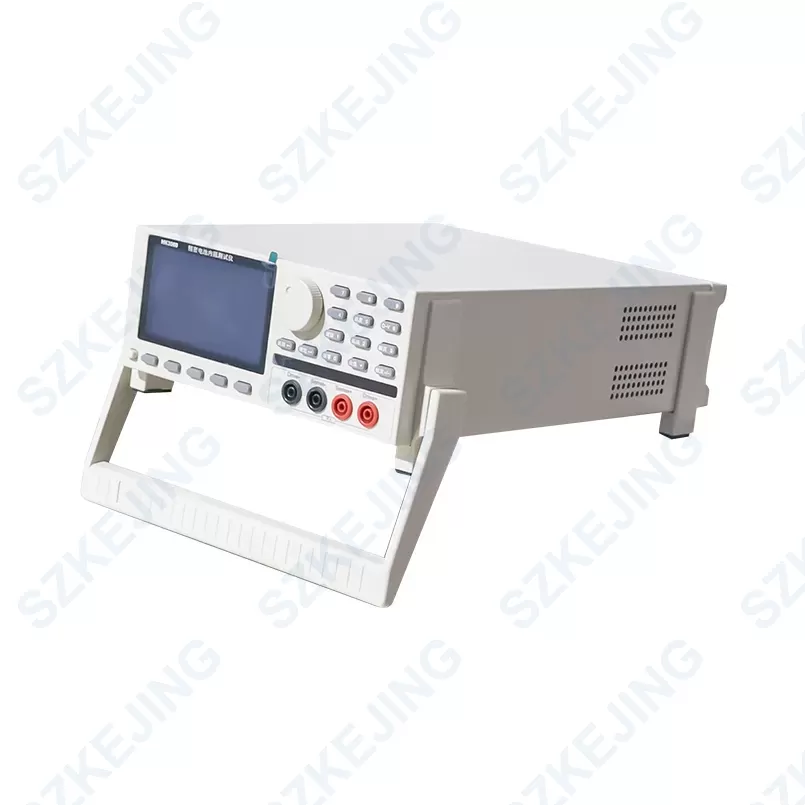

Precision Internal Resistance Tester-HK-3560

HK-3560 precision internal resistance tester is a high – precision, high – stability battery internal resistance and battery voltage tester. It is mainly used for measuring battery internal resistance and battery voltage, with high – test precision, fast speed, and good stability. It is equipped with data acquisition software, enabling automatic measurement and accurate and rapid determination of battery status.

Technical Parameters

Power Supply	Single – phase AC110 – 220V ± 10%, frequency: 50Hz/60Hz, power consumption: about 15W
Display	4.3 – inch TFT – LCD display
Internal Resistance Range	0.1μΩ – 3kΩ
Voltage Range:	10μV – 60V
Signal Source	Measurement current frequency: 1kHz; Open – circuit voltage: <5V; Test current: <100mA
Measurement Range	7 – step different measurement ranges: 1mΩ, 10mΩ, 100mΩ, 1Ω, 10Ω, 100Ω, 1kΩ; Full – range automatic or manual measurement mode
Test Speed	100 times/second, 50 times/second, 20 times/second, 3 times/second
Calibration	30 – group records, 2 – 4 – gear sorting optional, gear counting
Other Functions	Data export, storage in U – disk
Trigger Mode	Internal trigger/manual trigger/external trigger

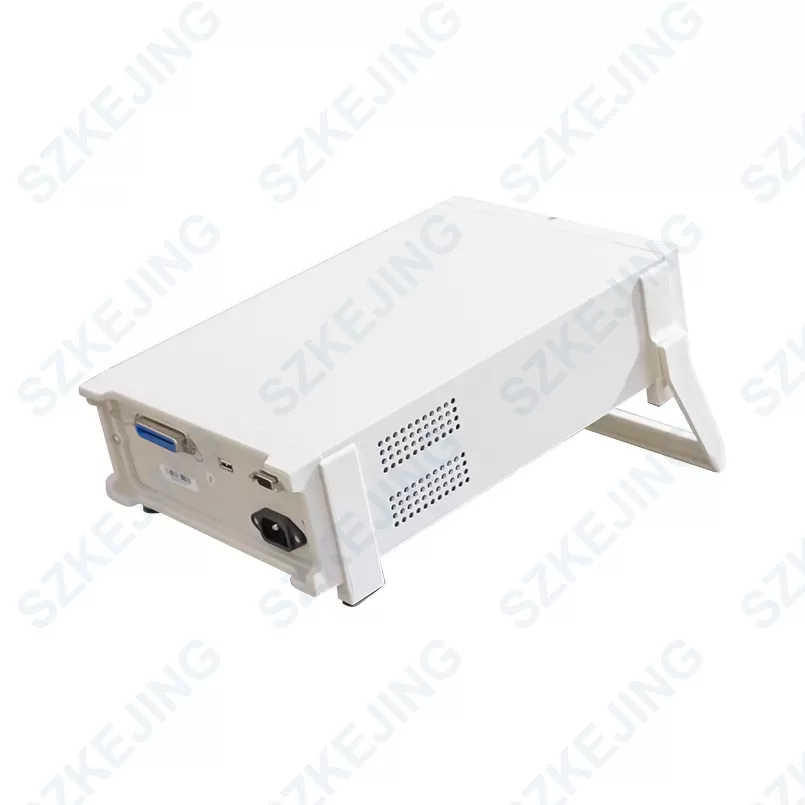

Interface	RS – 232C, Handler(PLC interface), USB(Host)

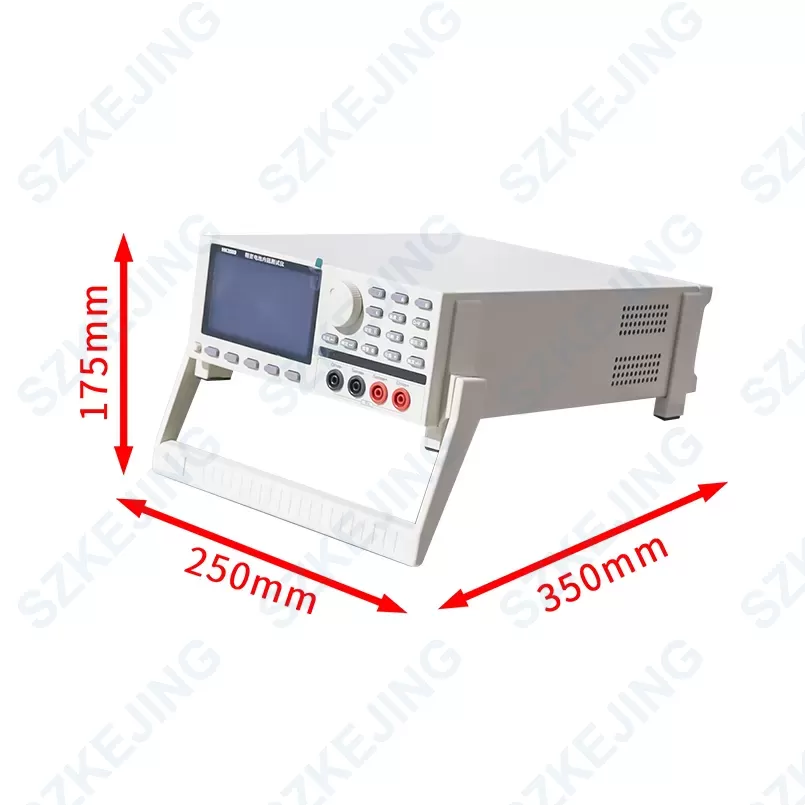

Size	Approximately L350×W250×H175mm
Weight	Approximately 3kg
