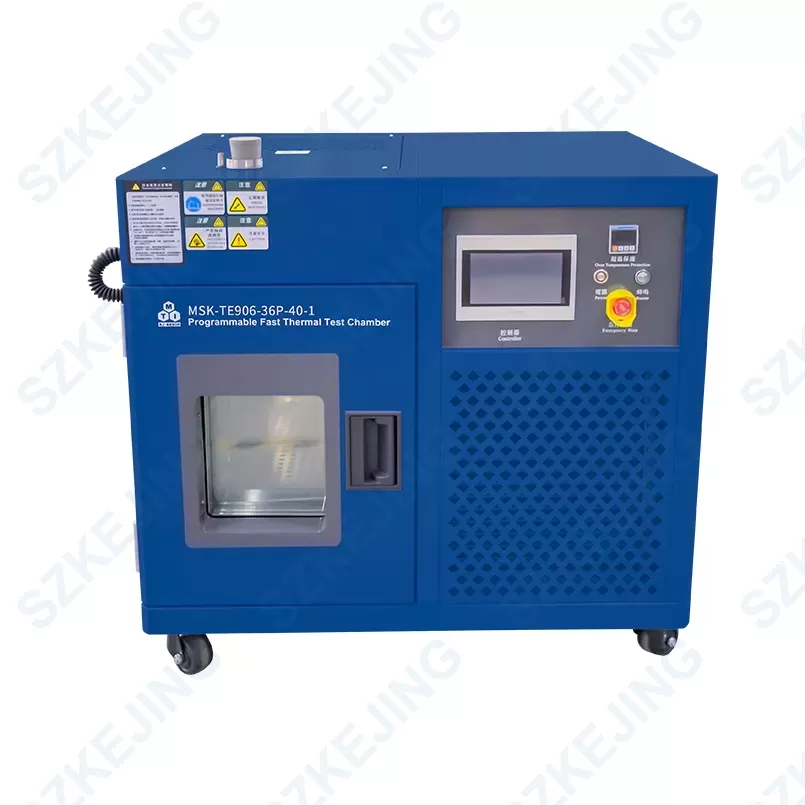

Battery Temperature Cycle Tester-MSK-TE906-36P-40-1

MSK-TE906-36P-40-1 Battery Temperature Cycle Tester is a device applicable for safety testing of lithium – ion batteries and battery packs. It can simulate the safety performance of test batteries under high – and low – temperature environmental changes. The design can achieve tests within the temperature range of – 40°C to +150°C, and can be widely applied to industries such as electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, and building materials

Functional Features

Adopts single – unit air – cooled refrigeration mode, and uses imported refrigerants.
Equipped with safety protection functions such as compressor overpressure protection, overtemperature protection, and leakage protection.
Adopts PWM refrigeration control technology for more accurate and efficient temperature control.
The side of the cabinet body is designed with a through – hole, and the door of the cabinet is equipped with an internal lighting lamp.

Technical Parameter

Power Supply	Single – phase AC220V ± 10%, frequency 50Hz, power about 4KW
Working Environment Requirements	Temperature: 25 ± 3°C, relative humidity: ≤ 85% RH, environmental air pressure: 86 – 106Kpa
Temperature Fluctuation	≤ ± 0.5°C
Temperature Range	– 40 – +150°C
Temperature Deviation	≤ ± 2°C
Temperature Uniformity	≤ ± 2°C (this temperature is the relative deviation of 9 points）
Heating Rate	– 40°C → +75°C, 5°C/min full – range average (non – linear no – load) (test environment temperature ≤ 25°C)
Cooling Rate	+75°C → – 40°C, 1°C/min full – range average (non – linear no – load) (test environment temperature ≤ 25°C)
Refrigeration Mode	Air – cooled
Noise	A – weighted level ≤ 62dB(A) (1m away from the ground in front of the door, measured in free space)
Effective Volume	about 36L
Equipment Weight	about 190KG
Equipment Inner Chamber	about W300×D300×H400mm

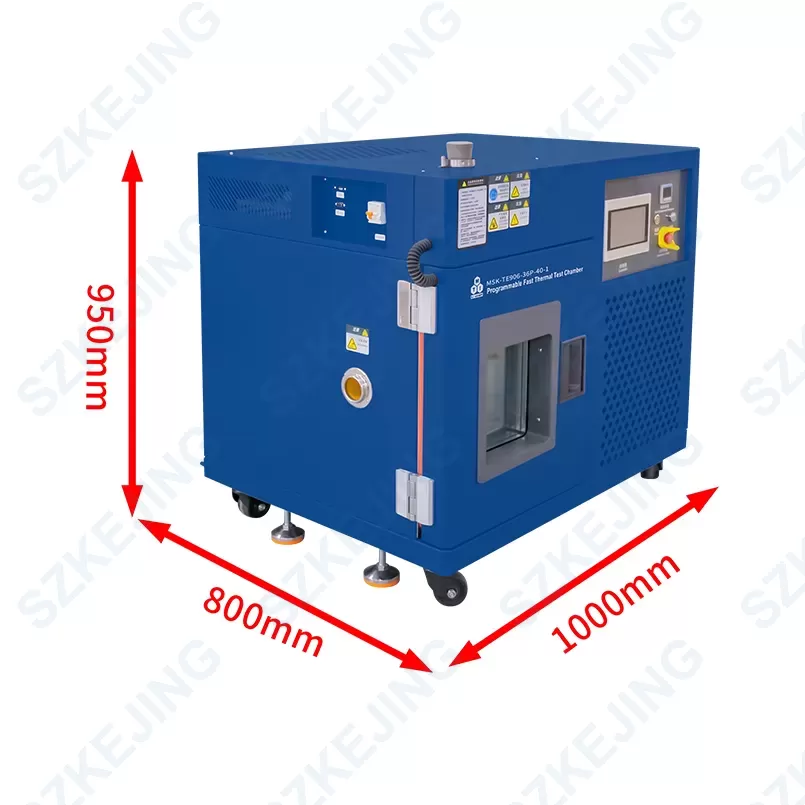

Equipment Overall Size	about W1000×D800×H900mm
