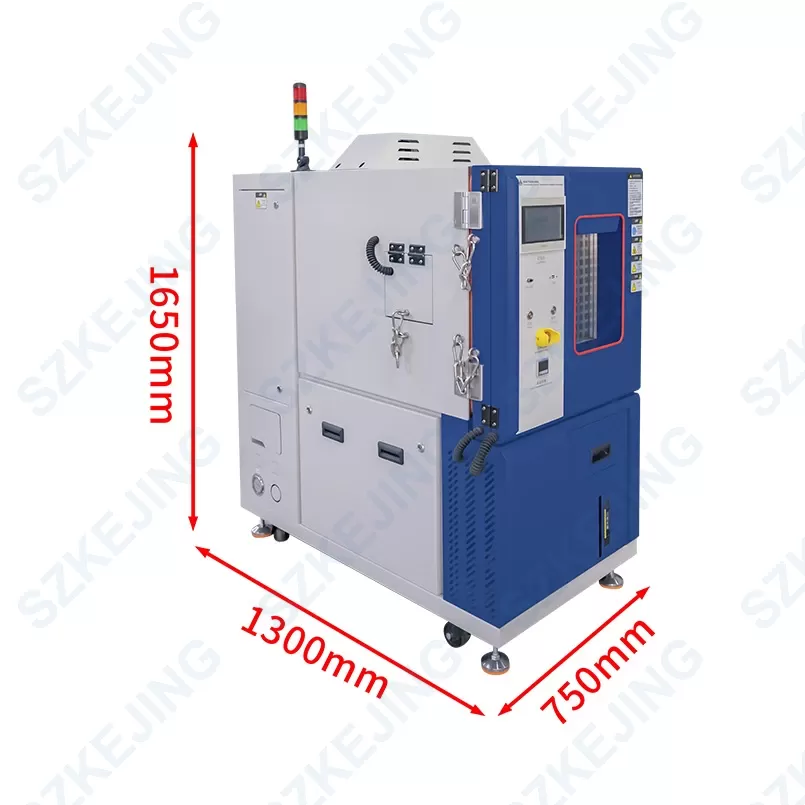

Constant Temperature and Humidity Chamber-MSK-TE906-H100P-70-5

MSK-TE906-H100P-70-5 constant – temperature and humidity chamber is a device applicable for safety testing of lithium – ion batteries and battery packs. It can simulate the safety performance of test batteries under high – temperature, high – humidity, and low – humidity environmental changes. The design can achieve tests within a temperature range of – 70°C to +150°C and a humidity range of 20% to 98% RH, and can be widely applied to industries such as electronics, electrical appliances, batteries, plastics, food, paper products, vehicles, metals, chemicals, and building materials.

Functional Features

Adopts two – unit air – cooled refrigeration mode and imported refrigerants.

Equipped with safety protection functions such as compressor overpressure protection, humidifier dry – burning protection, humidifier water – shortage protection, and test – box protection.

Adopts PWM refrigeration control technology for more accurate and efficient temperature control.

The side of the cabinet body is designed with through – holes, and the door of the cabinet is equipped with an internal lighting lamp.

Technical Parameter

Power Supply	Three – phase five – wire system AC380V ± 10%, frequency 50Hz, power about 11KW
Working Environment Requirements	Temperature: 5 – 35°C, relative humidity: ≤ 85% RH, environmental air pressure: 86 – 106Kpa
Temperature Resolution/Fluctuation	0.01°C/± 0.5°C
Temperature Range	– 70 – 150°C
Temperature Deviation	≤ ± 2°C
Temperature Uniformity	≤ ± 2°C (9 – point relative deviation)
Heating Rate	– 70°C → +150°C, 5°C/min (non – linear no – load)
Cooling Rate	+75°C → – 40°C, 5°C/min (non – linear no – load) 40°C → – 70°C, 1°C/min (non – linear no – load)
Standard Load	Heat output of 100W
Humidity Range	(20 – 85°C) 20% – 98% RH
