Constant Temperature Test Chamber-MSK-TE906-160C

MSK-TE906-160C constant temperature test chamber is mainly used for the charge and discharge tests of coin cells under constant temperature conditions. The temperature box and battery tester are designed as an integrated system, maximizing the utilization of the equipment’s space and allowing for the placement of 160 coin cells.

Functional Features

Adopts a double – layer integral structure and a program – controlled temperature system, equipped with air – cooling and electric – heating systems, with features such as fast heating speed and stable cooling.

Adopts a forced – circulation ventilation and balance – adjustment temperature method.

The control system automatically calculates the output of the controller’s heater according to the set temperature value through PID, thus achieving dynamic balance of temperature.

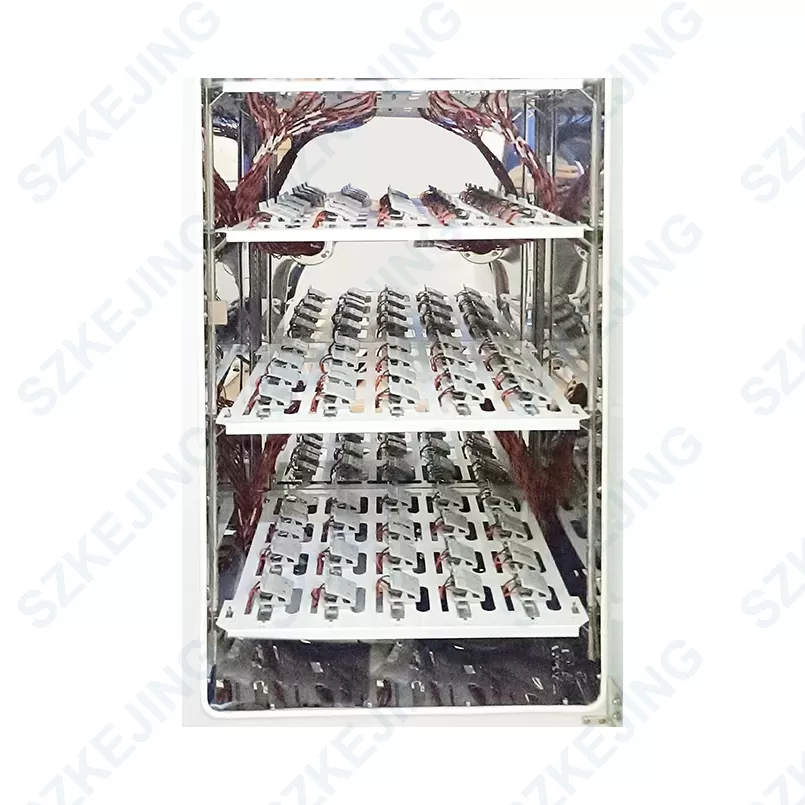

Special fixtures for button – type batteries are provided, which are clamped up and down for convenient loading and unloading.

Technical Parameter

Power Supply	Single – phase AC220V ± 10%, frequency 50Hz, total power about 3KW (including tester
Working Environment Requirements	Temperature ≤ 25°C, humidity ≤ 85% RH
Nominal Volume	300L
Chamber Material	The outer cabinet is made of cold – rolled steel plate with plastic spraying, and the inner cavity is made of stainless steel mirror – face plate.
Temperature Range	0°C – 60°C
Temperature Resolution	0.1°C
Temperature Fluctuation	± 1°C
Temperature Uniformity	± 1.5°C
Threading Holes	4, diameter φ50mm
Electrical Control System	LCD control panel, forced – circulation ventilation

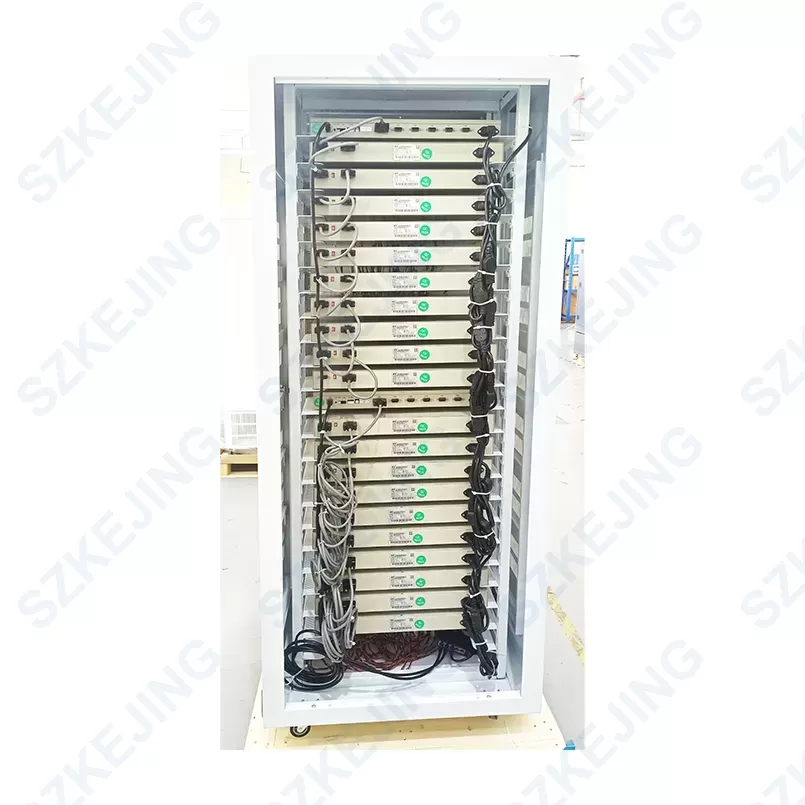

Tester	Standard 5V10mA 8 – channel battery tester, optional brands
Partition Number	4 pieces
Inner Cavity Size	Approximately W520mm × D480mm × H1190mm

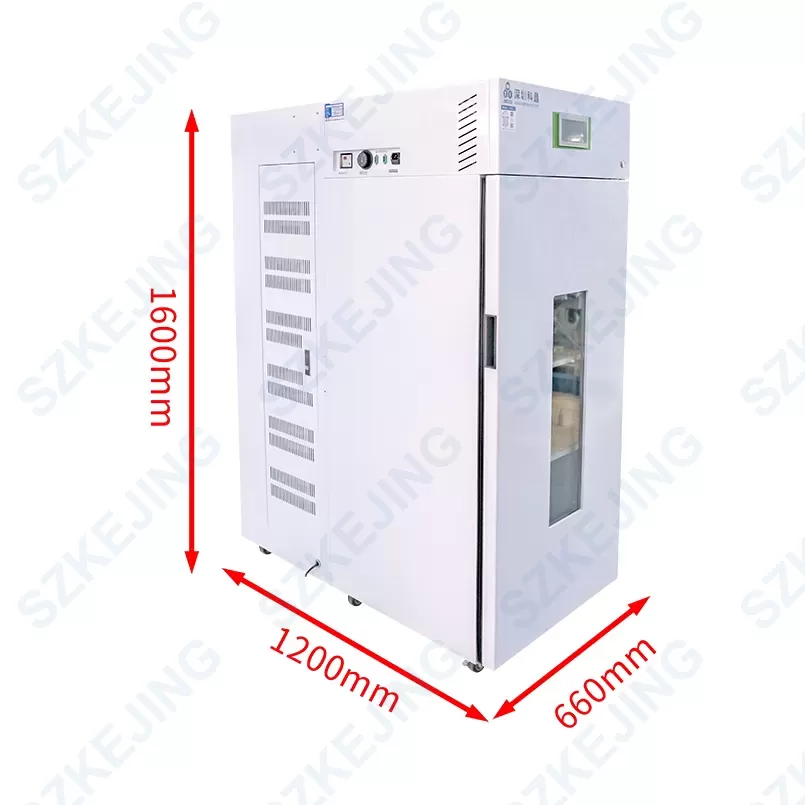

External Dimension	Approximately W660mm × D1200mm × H1600mm
Weight	Approximately 270Kg
