Constant Temperature Test Chamber-MSK-TE906-LBI530

MSK – TE906 – LBI530 constant – temperature test chamber is a special – structure test chamber for lithium – battery products such as blue – light test systems and new – energy test systems. It has customized shelves and functions such as multi – layer temperature protection. It can perform long – cycle, non – stop, multi – temperature – point, and balanced – type frost – free control.

Functional Features

The cabinet and the working chamber are designed with an arc – shaped structure.
The working chamber is made of mirror – faced stainless steel plates, and the shelves can be freely adjusted in height and position for easy cleaning inside the working chamber.
The working chamber is equipped with lighting devices.
The side of the equipment is designed with through – line test holes.
The working chamber is equipped with a fan for forced convection.
The outer surface of the cabinet is treated with plastic spraying, and the overall appearance is beautiful, generous, and convenient for use and maintenance.
The test chamber door is a double – door design. The inner door is made of toughened glass for directly observing the working chamber’s interior. The outer door uses a magnetic seal with good sealing performance.
It is equipped with a leakage protector.
It is equipped with an auxiliary temperature controller to ensure that the product can still work normally when the main temperature control fails (for heating).
The temperature control adopts the latest micro – computer intelligent control system. The LCD liquid – crystal display shows the temperature with high precision and no overshoot.
It has an RS485 communication interface for connecting to a computer, displaying, printing temperatures and times on the computer, and providing a strong guarantee for test – process data storage and playback.

Technical Parameter

Power Supply	Single – phase AC220V±%, frequency 50Hz, power about 1200W
Working Environment	Recommended ambient temperature 25±3°C, ambient humidity 30 – 90%RH or lower
Nominal Volume	530L
Temperature Control Range	0 – 80°C (long – term usable temperature >10°C)
Temperature Fluctuation	Heating: ±0.5°C; Cooling: ±1°C
Temperature Resolution	0.1°C
Temperature Uniformity	±2°C
Timing Range	1 – 9999min
Refrigerant	R134a
Working Time	Continuous
Partition Number	Standard 4 pieces

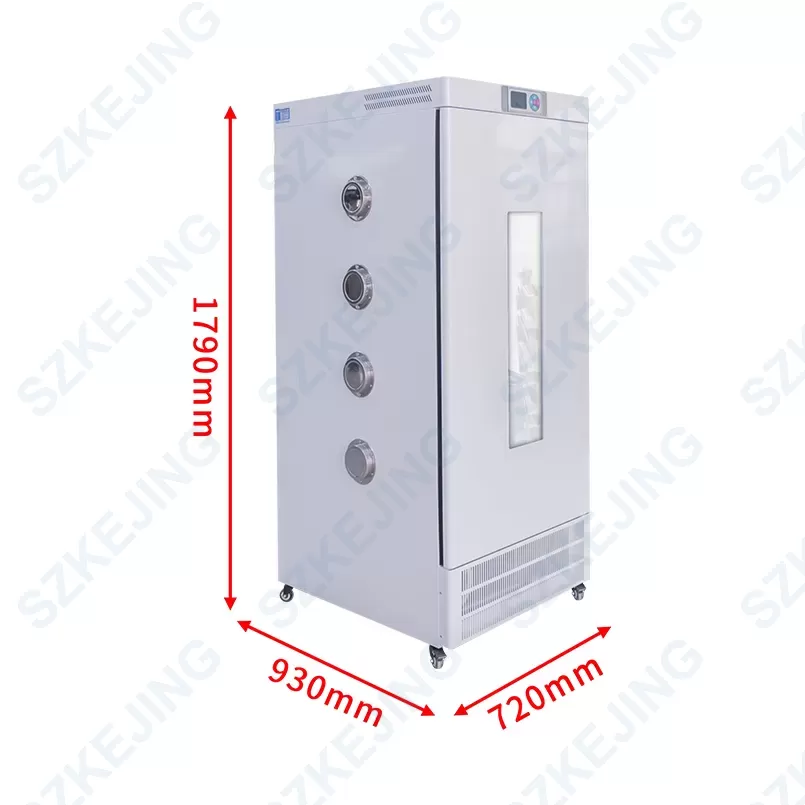

Threading Holes	Standard diameter 100mm×4
Working Chamber Size	Approximately W580mm×D720mm×H1270mm (subject to actual product)
Weight	Approximately 180kg (subject to actual product)
