Features:
- Integrated gantry frame with CNC precision machining ensures high stability.
- Rolls are made of cold-rolled die steel, with surface grinding after heat treatment, featuring high precision, high hardness and excellent wear resistance.
- The roll surface is treated with hard chrome plating, providing good rust resistance and easy maintenance.
- Wedge-type roll gap adjustment device, dial indicator assisted adjustment.
- Driven by a decelerated DC motor, it is designed with forward and reverse rolling functions and equipped with feed-in and discharge guide plates.
- Can be placed in the glove box.
- Standard-equipped Digital Dial Indicator.
- Optional MSK-2150-RD device for continuous rolling process
- Desktop design with compact structure, convenient operation and maintenance.
| Specifications: | |
| Power | Single-phase AC110-220V±10%, frequency 50/60Hz, power 280W |
| Operating Environment | Recommended ambient temperature: 25±3℃, free from vibration and electromagnetic interference |
| Roll Specifications | Diameter: Φ94 x 150mm |
| Roll Hardness | Surface hardness: HRC58～62, hardness layer thickness: ≥10mm |
| Substrate Width | Max: 140mm |
| Roll Material | Cr12MoV, with hard chrome plating on surface: ≥0.08mm |
| Rolling Pressure | Max: 2T (can be converted via motor torque, not measurable) |
| Reduction Amount | Recommended maximum single pass reduction for lithium electrode sheets: 20%～25%. For thinner sheets, multiple rollings are required (5μm per pass) |
| Roll Drive | A special motor is adopted, which is suitable for use under argon gas. |
| Rolling Speed | Speed-adjustable, 10～30 mm/s. |
| Rolling Gap | Maximum gap: 1.3mm, minimum gap: 0mm (maximum gap can be customized to 2mm) |

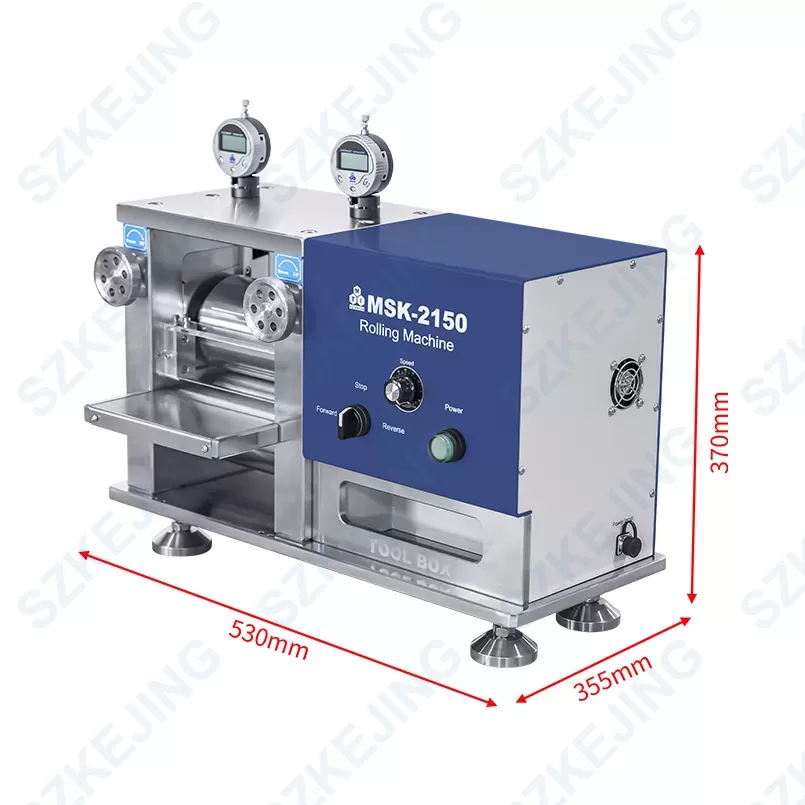

| Dimension | About L530*W355*H370mm |
| Weight | About 95kg |
| Warranty | 1 year |
