Features:
- Integrated gantry frame with CNC precision machining ensures high stability.
- Rolls are made of cold-rolled die steel, with surface grinding after heat treatment, featuring high precision, high hardness and excellent wear resistance.
- The roll surface is treated with hard chrome plating, providing good rust resistance and easy maintenance.
- Wedge-type roll gap adjustment device.
- Standard-equipped with mechanical dial gauge, optional mechanical micrometer.
- Driven by a gear motor, designed with forward and reverse rolling functions, and equipped with feeding and discharging guide plates.
- Optional MSK-2150-RD device for continuous rolling process
- Desktop design with compact structure, convenient operation and maintenance.
| Specifications: | |
| Power | Single-phase AC220V±10%, frequency 50Hz, power 150W |
| Operating Environment | Recommended ambient temperature: 25±3℃, free from vibration and electromagnetic interference |
| Roll Specifications | Diameter: Φ94 x 150mm |
| Roll Hardness | Surface hardness: HRC58～62, hardness layer thickness: ≥10mm |
| Substrate Width | Max: 140mm |
| Roll Material | Cr12MoV, with hard chrome plating on surface: ≥0.08mm |
| Rolling Pressure | Max: 3T (can be converted via motor torque, not measurable) |
| Reduction Amount | Recommended maximum single pass reduction for lithium electrode sheets: 20%～25%. For thinner sheets, multiple rollings are required (5μm per pass) |
| Roll Drive | AC gear motor |
| Rolling Speed | Max: 28mm/s (non-adjustable) |
| Rolling Gap | Maximum gap: 1.3mm, minimum gap: 0mm (maximum gap can be customized to 2mm) |

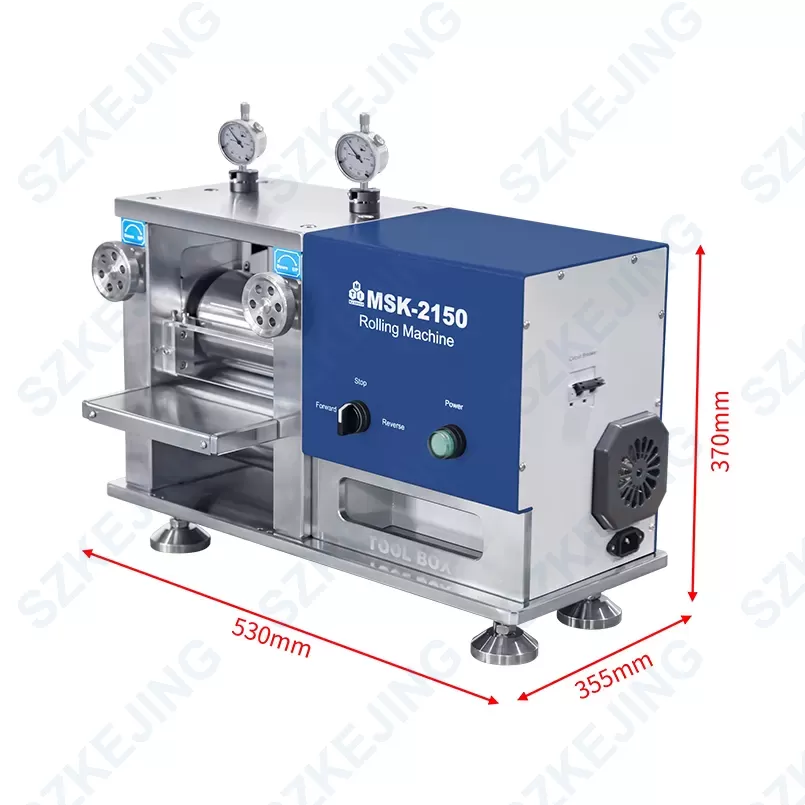

| Dimension | About L530*W355*H370mm |
| Weight | About 95kg |
| Warranty | 1 year |
