Features:
- The grooving dimensions are adjustable, with high precision and stable grooving size;
- Parameterized setting via PLC touch screen;
- Grooving processing of cylindrical battery cases and supercapacitors of various specifications can be performed by replacing molds;
- It can be used in a glove box through a transition chamber with an inner diameter larger than 360mm.
| Specifications: | |
| Power | Single-phase AC220V±10%, frequency 50Hz, power 0.3KW |
| Air Supply | 0.5-0.8MPa compressed air or high-pressure gas cylinder (high-pressure gas cylinders normally operate at 1.3-1.5MPa and require pressure reduction before use).
Notes: a) For normal steel cases with a wall thickness of 0.4mm or less, an air pressure of 0.5-0.8MPa is sufficient. In special cases involving steel cases with a wall thickness exceeding 0.4mm and made of relatively hard materials, an air supply of 0.8-1.2MPa can be selected. b) Different air pressure settings are required for different steel cases. Insufficient pressure will result in ineffective grooving, while excessive pressure may cause the case to rupture. (The pre-set pressure at the factory is suitable for 95% of steel cases; pressure adjustment is only necessary under special circumstances.) |
| Operating Environment | Recommended ambient temperature 25±3℃, humidity 30-90RH, free from vibration and electromagnetic interference. |
| Applicable Batteries | φ10mm-φ50mm, L20mm-L140mm (e.g., 3260, 4680, 18650, 21700) |
| Groove Depth | Adjustable from 0.8-2.0mm |
| Groove Width | 1.2mm as standard; can be designed to 0.9-1.5mm upon request. |
| Grooving Tool Service Life | ≥100,000 cycles. |

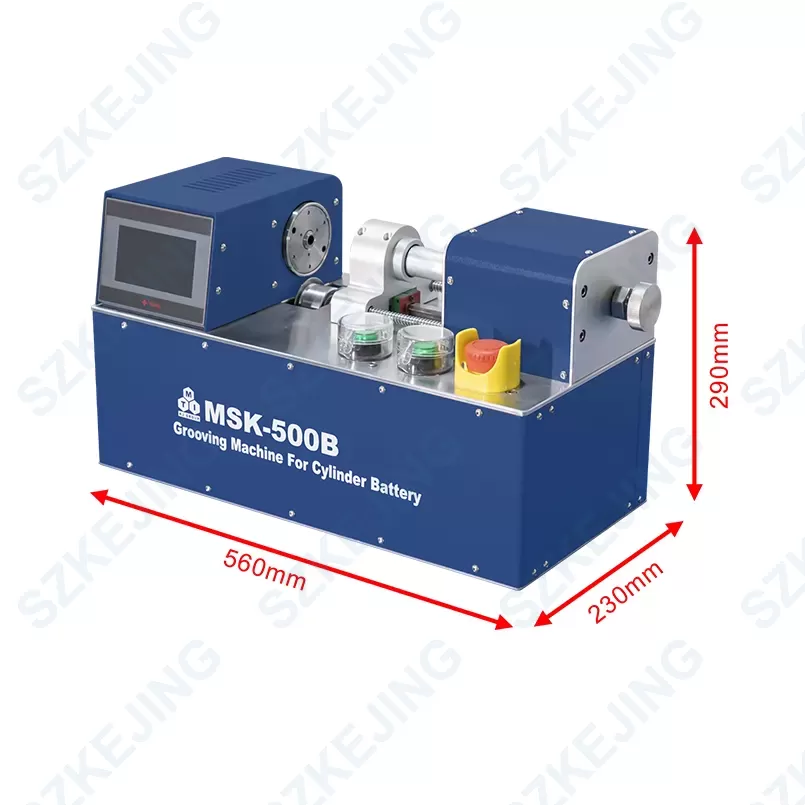

| Dimension | About L560mm*W238mm*H288mm |
| Weight | About 40kg |
| Warranty | 1 yeark |
