Features:
- The manual hydraulic cylinder drives the mold to crimp cylindrical batteries, and the power-increasing handle enables labor-saving operation.
- Compact and lightweight, it can be easily moved through the transition chamber for use in a glove box with water and oxygen control.
- The precision mold design ensures accurate and reliable crimping formation, with excellent sealing quality and long service life.
- Different molds can be optionally equipped to crimp cylindrical batteries of various specifications, achieving multi-purpose use of one machine.
- It has good crimping tightness and can pass professional tests.
- It operates purely manually without the need for electricity or gas, making it convenient and easy to use.
| Specifications: | |
| Application Range | Cylindrical batteries and supercapacitors with a diameter of φ10mm-φ50mm and a height of 20mm-140mm |
| Sealing Pressure | Pressure is adjustable; if there are no special requirements, the machine will be set to 60kg/cm²-100kg/cm² at the factory |
| Sealing Stroke | 20mm |
| Operating Handle | Shaken up and down on the front; operating force is approximately 8KG |
| Sealing Mold | Standard configuration includes an 18650 mold (diameter: φ18.0 +0/-0.05); other specifications are available as optional accessories |

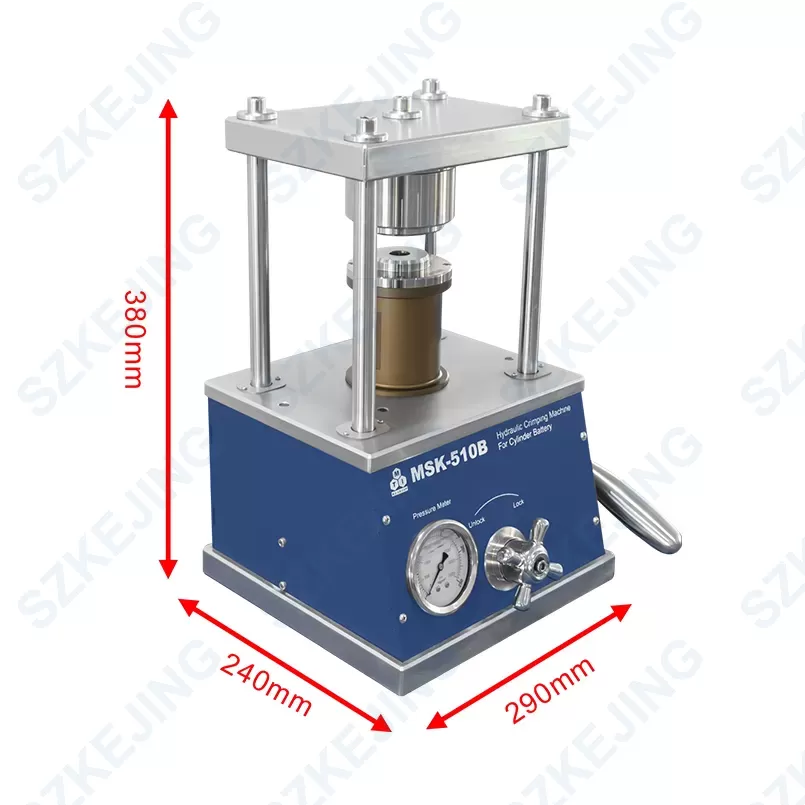

| Dimension | About L290mm*W240mm*H385mm |
| Weight | About 30kg |
| Warranty | 1 year |
