Features:
- Compatible with the top sealing and side sealing functions of pouch cells with single-end tab output;
- Comes standard with a top soft-sealing head and a side hard-sealing head; the size and type of the sealing heads can be customized;
- Excellent parallelism of the sealing heads and uniform sealing effect;
- Sealing temperature, sealing time, and sealing pressure are adjustable, ensuring good sealing effective;
- The fixture is designed with compatibility, applicable to battery models within the specified size range;
- Equipped with safety devices such as safety light curtains, button protective covers, and heat-insulating shields to prevent accidental contact, scalding, etc.;
- The electronic control system and structure adopt a standard modular design for easy maintenance;
- Compact overall design, capable of being placed in a glove box for use;
- Controlled by PLC and operated via HMI, featuring convenience and ease of use.
| Specifications: | |
| Power | Single-phase AC220V±10% (AC110V customizable), frequency 50/60Hz, power 1.4KW |
| Air Supply | Compressed air at 0.5-0.8MPa |
| Applicable Batteries | Max. L190×W190×T12 mm, Min. L62×W46×T2 mm (including air pocket size; smaller sizes require customization) |
| Sealing Edge Width | – Top sealing: Standard soft seal 3.5 mm; customizable 2-8 mm soft seal or 2-6 mm hard seal
– Side sealing: Standard hard seal 6 mm; customizable 2-8 mm hard seal |
| Sealing Pressure | Max. 160 kg·f (corresponding to sealing air pressure of 0.6MPa) |
| Sealing Head Temperature | – Upper and lower sealing heads: Max. 250℃, temperature accuracy ±2℃
– Recommended temperature: 200℃ for soft sealing heads, 180℃ for hard sealing heads |
| Heat Sealing Time | Adjustable 0.1-99s; recommended setting: 4-8s |
| Reference Capacity | 2-3 PPM (depending on the operator’s proficiency) |

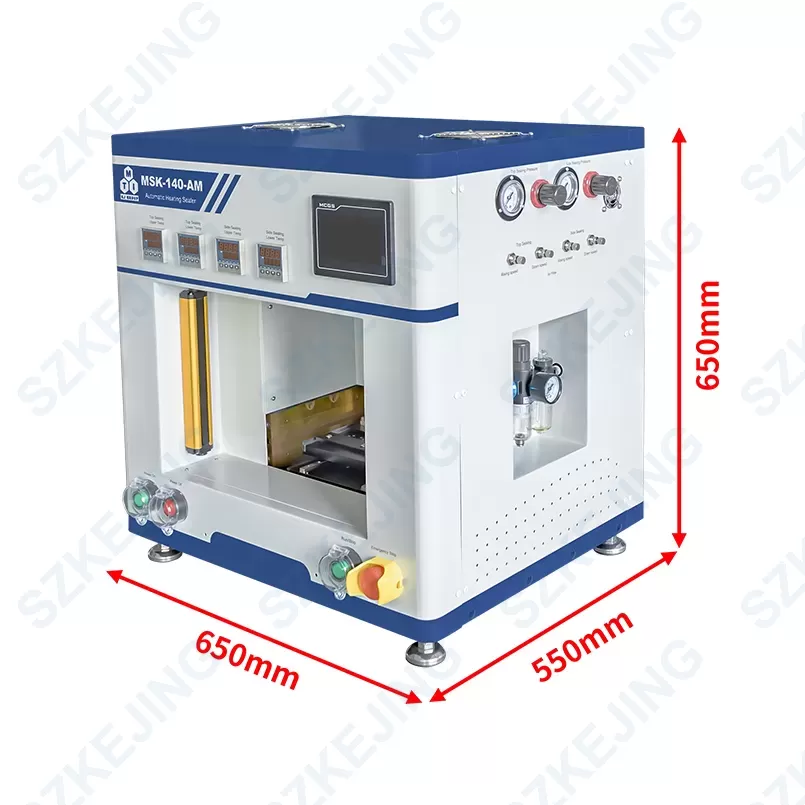

| Dimension | About L650×W550×H650mm |
| Weight | About 125kg |
| Warranty | 1 year |
