kFeatures:
- Compatible with the pre-sealing and final sealing functions of pouch cells and solid-state batteries;
- Equipped with a hard-sealing head as standard, and the size and type of the sealing head can be customized;
- Excellent parallelism of the sealing head and uniform sealing performance;
- Adjustable sealing temperature, sealing time and sealing pressure, ensuring good sealing effect;
- Compatible design of the fixture, which can be applied to battery models within the specified size range;
- Good vacuum retention to ensure the moisture content of finished batteries;
- Equipped with a piercing function to drain excess electrolyte from the battery;
- External electrolyte collection device for easy removal and cleaning in later stages;
- Compact overall design, which can be placed in a common glove box for use;
- Standard modular design for electrical control and structure, facilitating maintenance;
- PLC control and HMI operation, ensuring convenience and ease of use;
| Specifications: | |
| Power | Single-phase AC220V±10% (AC110V customizable), frequency 50/60Hz, power 1.5KW |
| Gas Supply | Compressed air or inert gas at 0.6～0.8MPa |
| Operating Environment | Used in a glove box with controllable moisture and oxygen levels or a dry room |
| Sealing Head Temperature | Maximum temperature of upper and lower sealing heads up to 250℃ |
| Temperature Control Accuracy | ±2℃ |
| Battery Size | Max. L330W330H20mm for double-cell batteries (H10mm for single-cell batteries) |
| Sealing Edge Width | Standard 6mm (2～8mm customizable) |
| Sealing Length | Sealing head length 345mm, maximum effective sealing length 330mm |
| Sealing Pressure | Max. 140 kg·f (corresponding to sealing gas pressure of 0.6MPa) |
| Heat Sealing Time | Adjustable from 0～90s, recommended setting 3～4s |
| Piercing Method | Metal needle piercing (ceramic needle piercing customizable) |
| Vacuum Degree | Adjustable, up to -95Kpa |
| Gas Consumption | 0.18L of compressed gas per sealing cycle |
| Exhaust Volume | Approximately 30L |

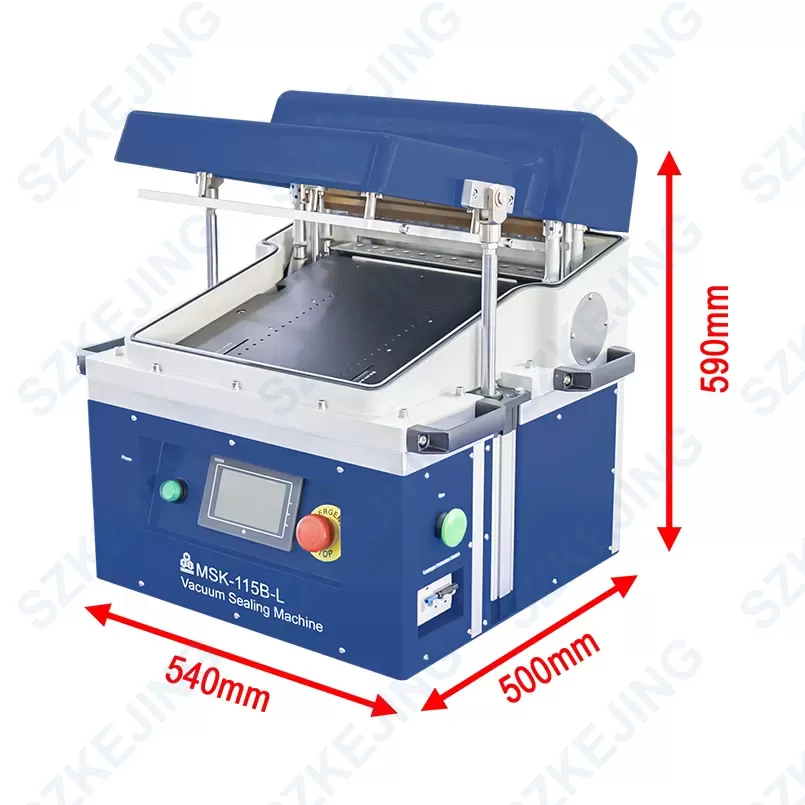

| Dimension | L540mm x W500mm x H590mm |
| Weight | About 89kg |
| Warranty | 1 year |
