| Function and Feature |
|---|
- Automatic assembly of button – type batteries, with special fixtures for loading materials, and completing the assembly of up to 16 batteries in one loading.
- Manually load materials into special fixtures, and switch fixtures to achieve rapid loading. After one loading, the process of automatic assembly, liquid injection, and sealing is completed.
- Applicable to standard CR2032 crimp – type batteries, and custom material trays can be made for different material specifications.
- Standard half – battery assembly and full – battery assembly can be switched through custom material trays and touch – screen selection.
- The equipment can be used in a drying room or in a glove box (requires a double – sided glove box configuration).
- The liquid injection volume and number of liquid injections can be digitally set.
- Servo – motor – driven sealing with stable pressure and digital setting.
- Built – in vacuum pump to save space.
- Touch – screen operation for convenient use.
| Technical Specification | |
| Parameter | Description |
| Power Supply | Single – phase AC220V + 10%, Frequency 50Hz/60Hz, Power 1.2 kW |
| Air Source | 0.5 – 0.8MPa Compressed Air or Argon (Compressed Air for Non – Glove Box Use, Argon for Glove Box Use) |
| Operating Environment | Glove Box or Drying Room |
| Applicable Range | Standard CR2032 Button – type Batteries, Customizable for Other CR20 Series Batteries |
| Loading Method | Manual Material Box Pre – loading, Mechanical Hand Automatically Picks Up One Battery Material at a Time |
| Material Loading Box | Tray – type loading, Up to 16 batteries can be loaded per tray |
| Sealing Pressure | Pressure Can be Intermittently Adjusted, Recommended Sealing Pressure for CR20 Series Button – type Batteries: 500 – 1000KG |
| Assembly Time | Approximately 60S per piece |
| Sealing Mold | Standard CR2032 Battery Series Sealing Mold (Other Models Contact the Manufacturer for Customization) |
| Mold Life | Max. 5000 Times of Sealing |
| Operating Station | 1 |
| Injection Pump | Precision peristaltic pump, Injection volume can be set |
| Electrolyte Tank | Glass Tank, Standard 1, Capacity Max. 100ml; Replacement Interface Can be Used for Different Specifications of Electrolyte Tanks |
| Injection Pipeline | Corrosion – resistant Fluoroplastic Transparent Tube, Inner Diameter Φ2mm, Outer Diameter Φ3mm |

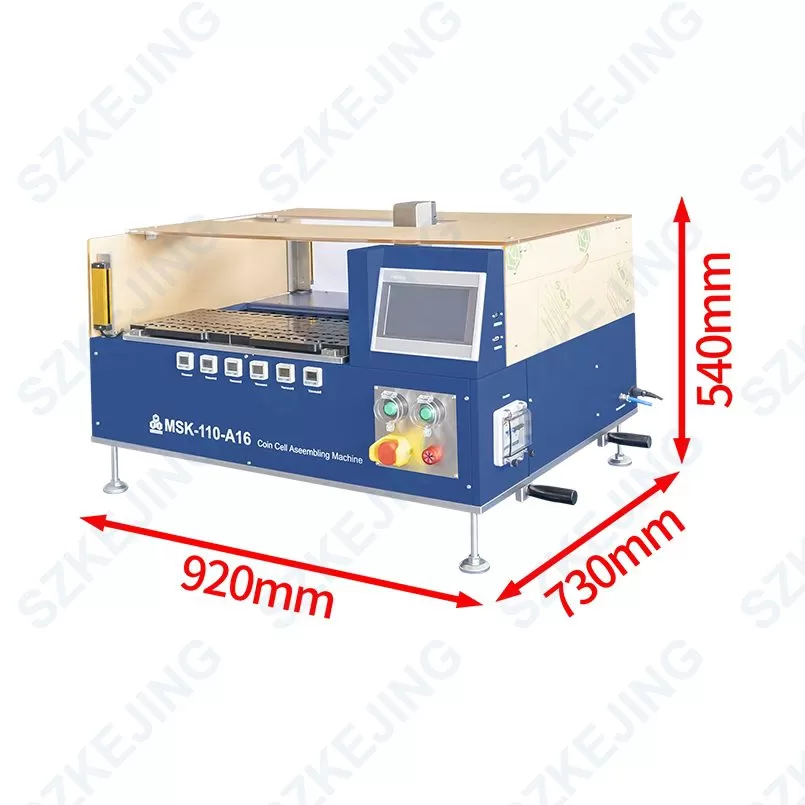

| Equipment Size | Approximately 920mm * 730mm * 540mm (Length * Width * Height) |
| Weight | Approximately 200KG |
