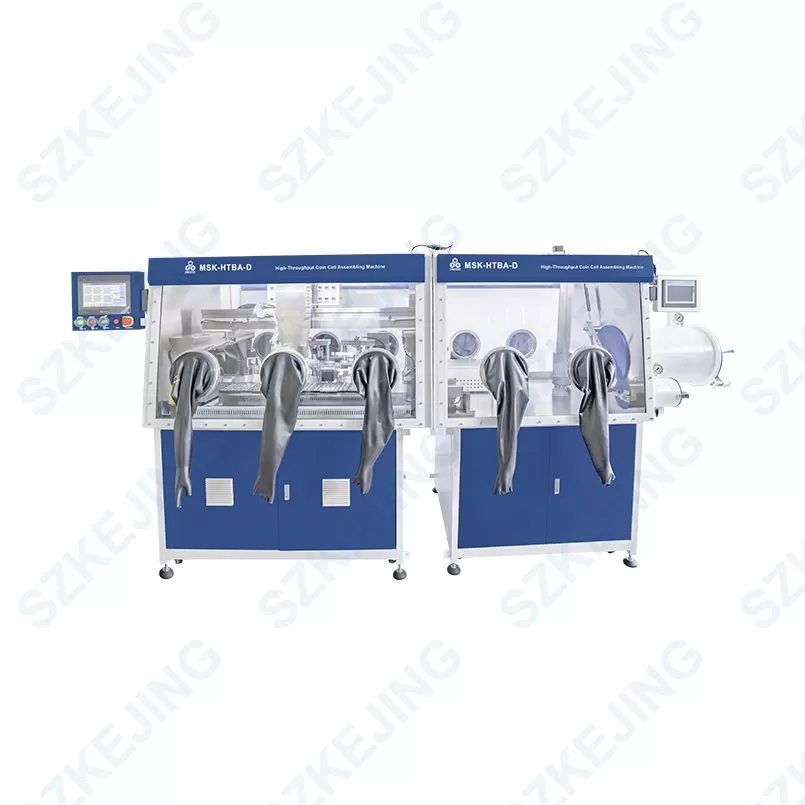

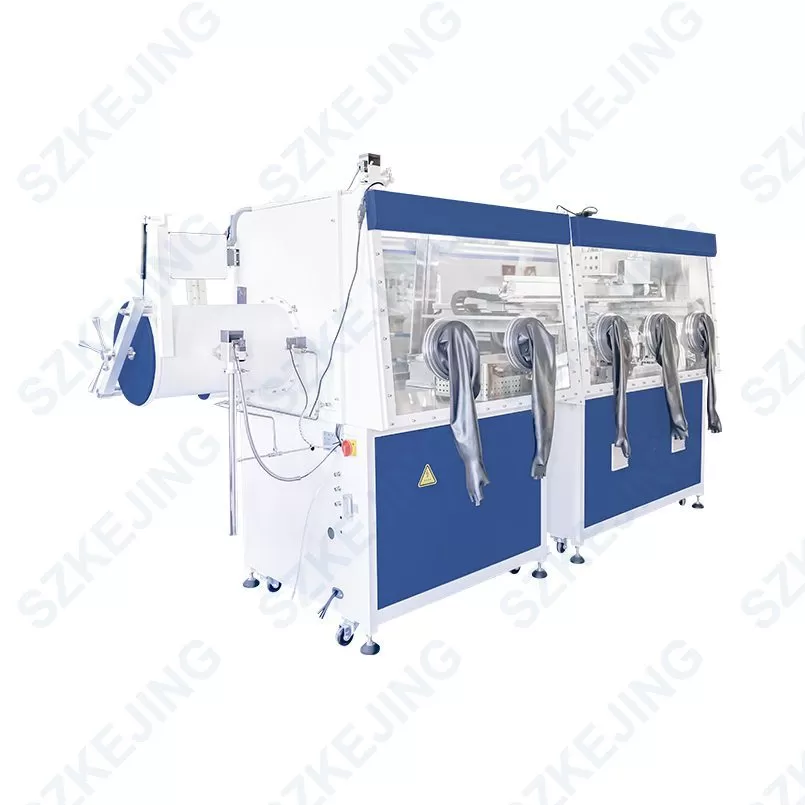

High-throughput Battery Assembly Machine-MSK-HTBA-D

This equipment is applied to the high – throughput assembly process of button batteries. The equipment realizes the automatic control of the assembly sequence of various materials including positive and negative electrode materials, diaphragms, gaskets, and electrolyte for button – type batteries, using an 8×8, a total of 64 – channel design, which can meet the efficient assembly requirements of various button – type batteries such as LIR2032. The function is realized by the manipulator taking materials from each material pre – positioning position through vacuum and moving them to the assembly position for assembly, then matching with liquid injection function, and then performing pressure – sealing molding, and finally placing the finished products uniformly in the lower – position material tray area.

Function and Feature

●Three – axis manipulator automatic assembly, which can perform high – throughput production of button batteries according to preset requirements and parameters;
●Manual box – type operation, with air – atmosphere protection for battery assembly to reduce the influence of water and oxygen;
●64 feeding stations, which can meet the high – throughput test requirements of the laboratory;
●Special fixture design to ensure accurate positioning of the assembly of materials such as positive and negative electrodes and diaphragms, ensuring the yield and consistency of the battery core;
●The electrolyte supply adopts a precision peristaltic pump, the injection volume can be set, and the injection precision is high;
●The servo motor drives the sealing port, and the sealing pressure is precisely adjustable;
●PLC control, HMI operation, and configured with specialized software to achieve data recording and export functions.Touch – screen operation for convenient use.

Technical Specification
Parameter	Description
Power Supply	Single – phase AC220V ± 10%, frequency 50Hz, total power 5KW, glove box 1.5KW, equipment 3.5KW
Air Source	0.5 ~ 0.7MPa compressed inert gas
	Temperature 25 ± 3 °C, humidity 30 ~ 90% RH, no vibration, no electromagnetic interference
Usage Specification	LIR2032 button – type battery, other specifications can be customized through negotiation
Placement Mode	8×8 arrangement, 64 channels
Assembly Mode	Reverse assembly (the negative electrode shell starts to be stacked layer by layer from the bottom)
Feeding Mode	Manual fixture pre – loading, automatic grasping and conveying
Equipment Speed	50 pieces/hour (for reference)
Injection Pump	Precision peristaltic pump, injection volume can be set
Electrolyte Tank	Glass tank, 2 are standard – equipped, capacity Max.50ml; different – specification electrolyte tanks can be switched by replacing the interface
Glove Box	Water and oxygen control ≤1 PPM
Equipment Weight	Approximately 1.5t

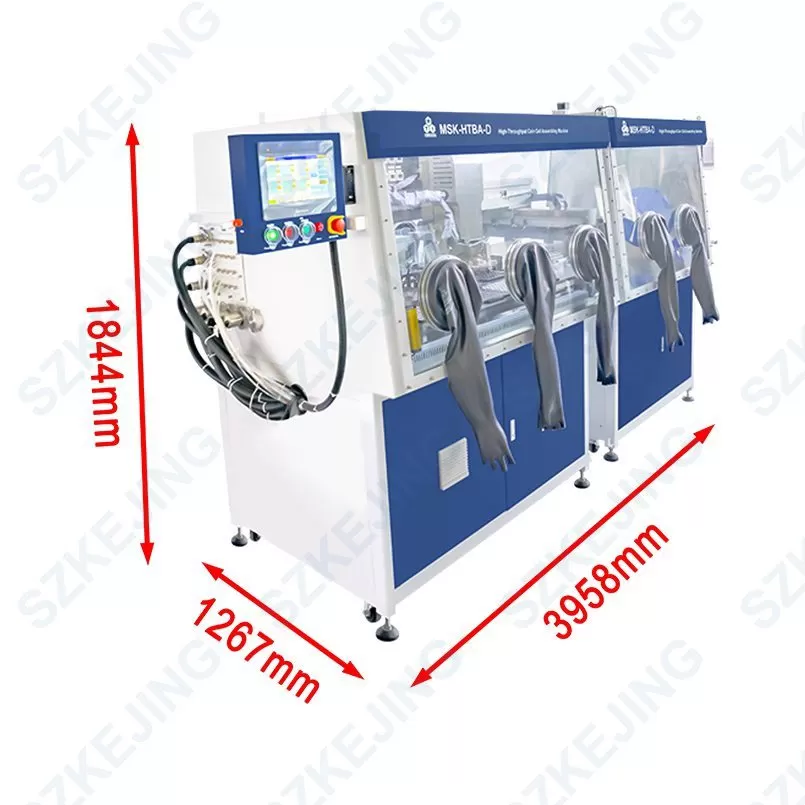

Equipment Dimensions	Overall size L3950 * W1200 * H2050mm (main operation box L1950 * W1200 * H2050mm)
