Functional Features
It meets different test methods such as stretching, peeling, opening force, puncture force, breaking force, and dead – block activity.
7 – inch touch – screen, with fashionable human – machine interface, displaying real – time measurement data, change curves, and test results.
It adopts 0.5 – level American – imported sensors with high precision and good repeatability.
The instrument can independently complete tests, and the built – in micro – printer can print each test result in a timely manner. It can also be connected to a computer for controlling experiments and analyzing data on the computer (computer – end control software needs to be selected additionally).
Professional software can display real – time data of the test process, change curves, and test data can be saved for comparison.
Different test items can perform parameter setting, printing, viewing, clearing, calibration, and other multiple functions.
The instrument complies with multiple national and international standards: GB/T 10006, GB/T 2790, GB/T 2791, GB/T 2792, ISO 8295, ISO 8510 – 2, ASTM D1894, ASTM D4917, ASTM D3330, TAPPI T816, TAPPI T549.
Technical Parameters
| Power Requirement | Single – phase AC 220V, frequency 50Hz, power about 100W |
| Load range | 0 – 500N |
| Force resolution | 0.001N |
| Displacement resolution | 0.1mm |
| Test speed | Stepless speed regulation, 10 – 800mm/min |
| Stroke | 600mm |

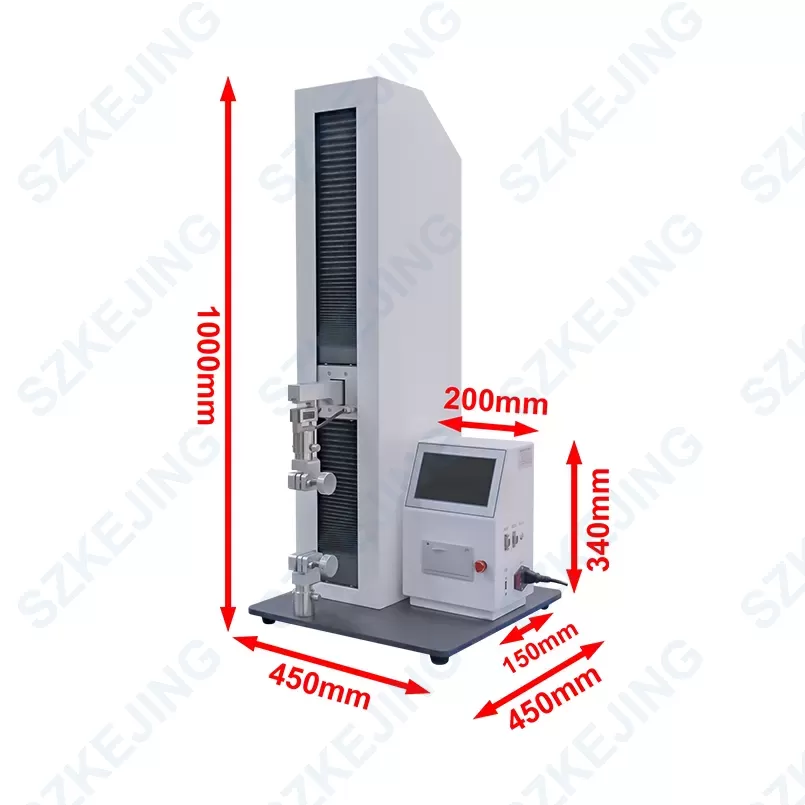

| Equipment size | Approximately L450mm×W450mm×H1000mm (subject to the actual product) |
| Equipment weight | Approximately 60kg (subject to the actual product) |
