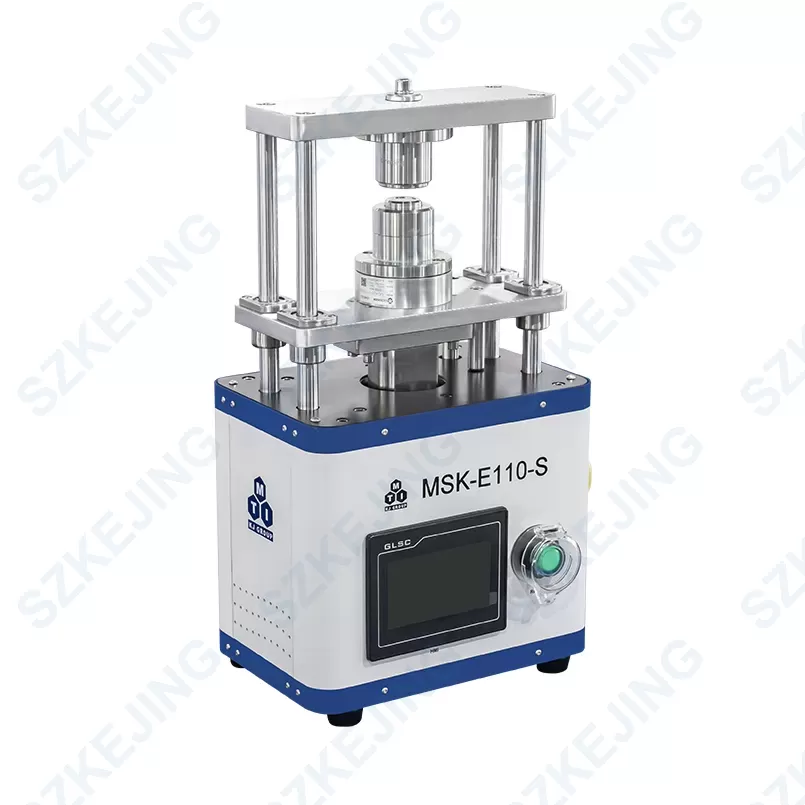

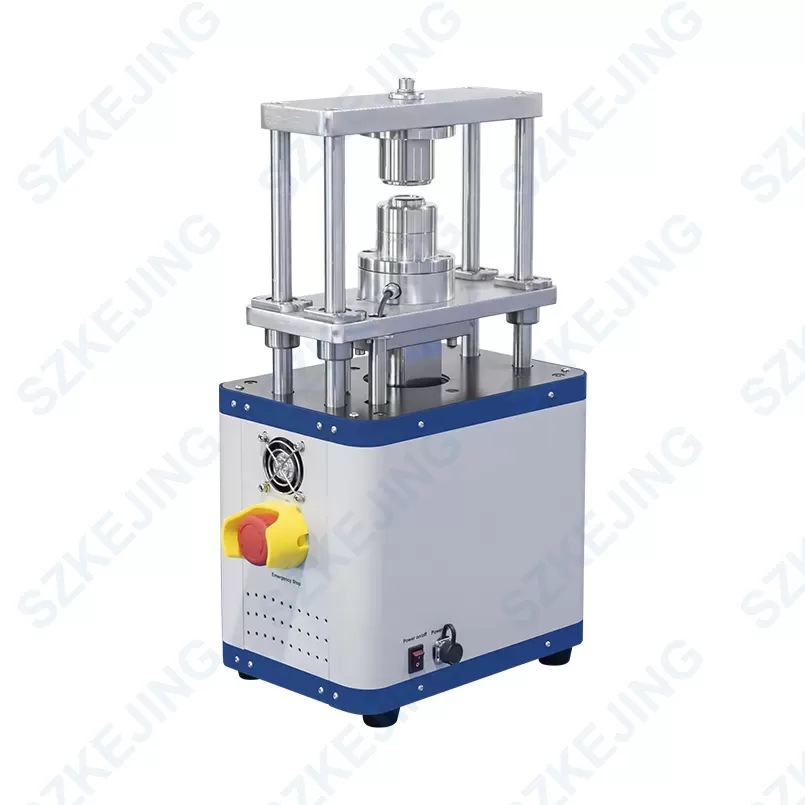

Features:
- Closed-loop control of crimping pressure. Equipped with a pressure sensor to precisely control the crimping pressure.
- Motor-driven mold mechanical pressurization for coin cell sealing. No oil leakage risk or gas consumption.
- Digital setting of crimping time via touch screen
- Compact and lightweight. It can lie flat to pass through the transition chamber into the glove box and be used in the glove box.
- Precision mold design ensures accurate and reliable crimping forming, excellent sealing quality, and long service life.
- Different molds can be configured to crimp and disassemble coin cells of different specifications, realizing multi-functional use of one machine.
| Specifications: | |
| Power | Single-phase AC 110-220V ±10%, frequency 50/60Hz, power 360W |
| Operating Environment | Dry room or glove box |
| Applicable Range | φ5.0-φ35mm / Height Max: 10mm |
| Crimping Pressure | Intermittently adjustable pressure. Recommended crimping pressure for CR20 series coin cells: 500-700KG, Max: 1000KG |
| Equipment Speed | Approx. 2.5 pcs/min (for reference only; the specific time is subject to actual crimping, as crimping time varies with different battery sizes) |
| Stroke | 15mm |
| Mold | Standard CR20 series crimping mold; other specifications available as optional |
| Mold Service Life | Max. 5000 times crimping |
| Disassembling Mold | Optional CR16, CR20, CR24, CR30 molds, or non-standard customized molds for diameter φ13mm~φ35mm / height Max: 10mm |

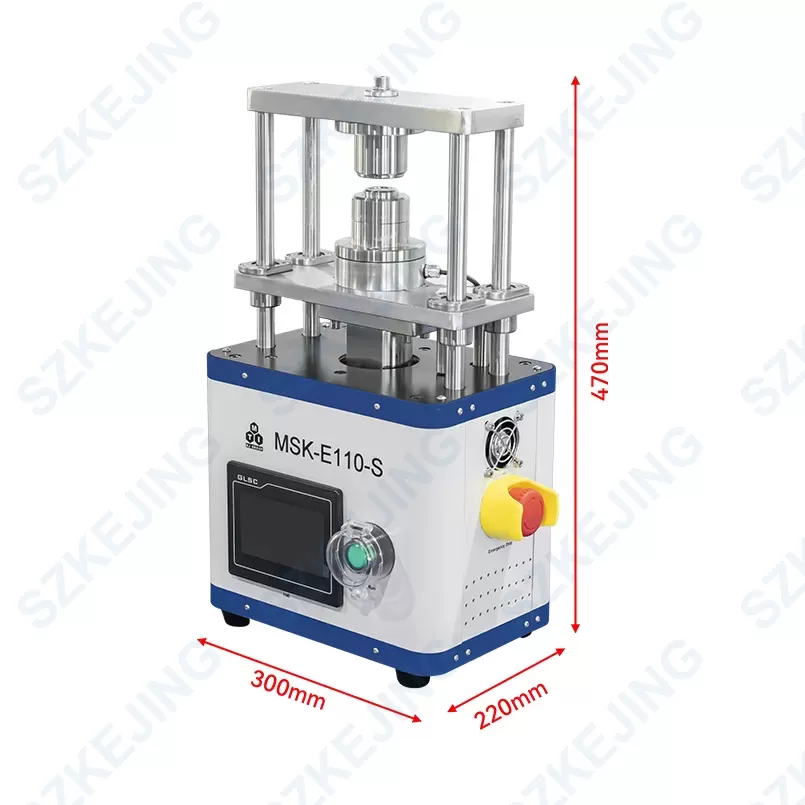

| Dimension | About L300*W220*H470mm |
| Weight | About 32kg |
| Warranty | 1 year |
