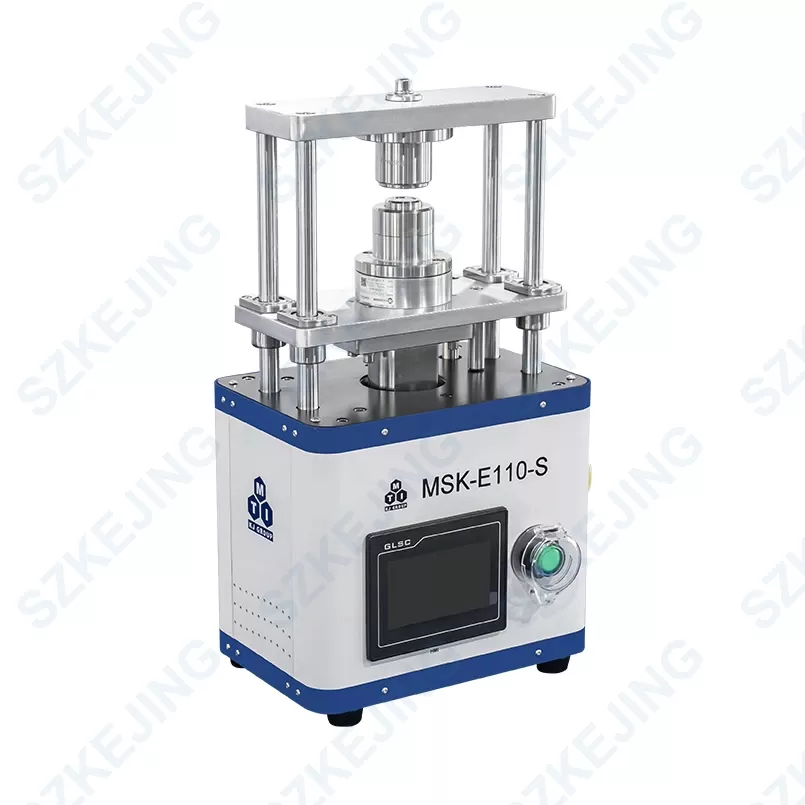

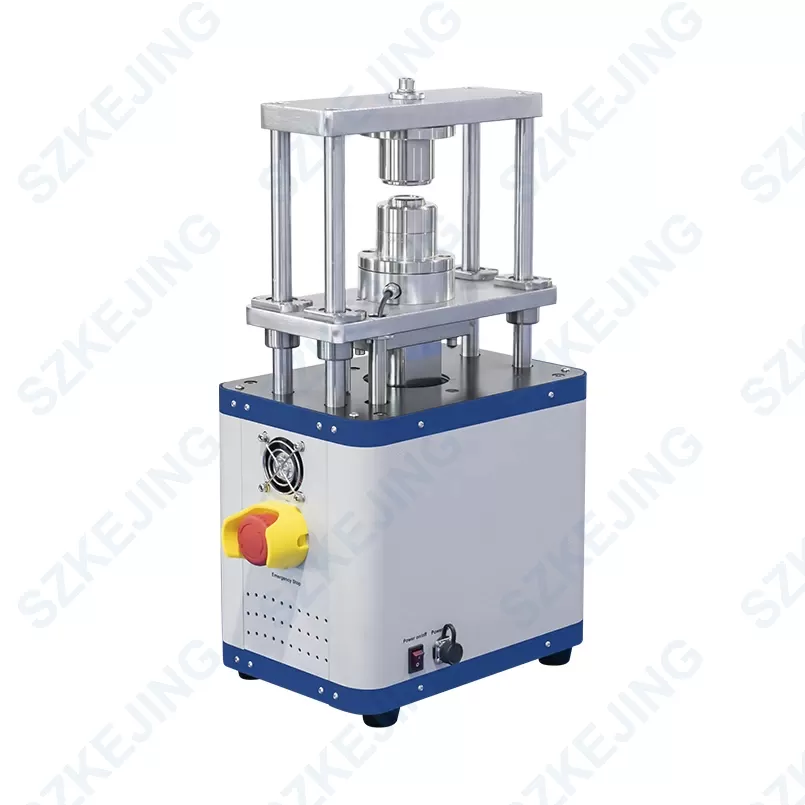

Pressure Adjustable Electric Crimping Machine for CR20XX Coin Cells - MSK-E110-S

Pressure Adjustable Electric Crimping Machine for CR20XX Coin Cells – MSK-E110-S

Application range:

MSK-E110-S adopts motor drive to realize the crimping and disassembling processes of coin cells. A crimping mold of φ20mm series coin cells are as standard, such as CR2016, CR2025, and CR2032. For crimping coin cells of other diameters (e.g., CR2450, CR1620), the corresponding mold must be purchased separately. Meanwhile, a disassembling mold can also be optionally purchased. After the cell is sealed, this disassembling mold is used to completely disassemble the positive and negative electrode cell covers, facilitating the sampling of internal cell materials for research and analysis.

Model:

MSK-E110-S

Dimension:

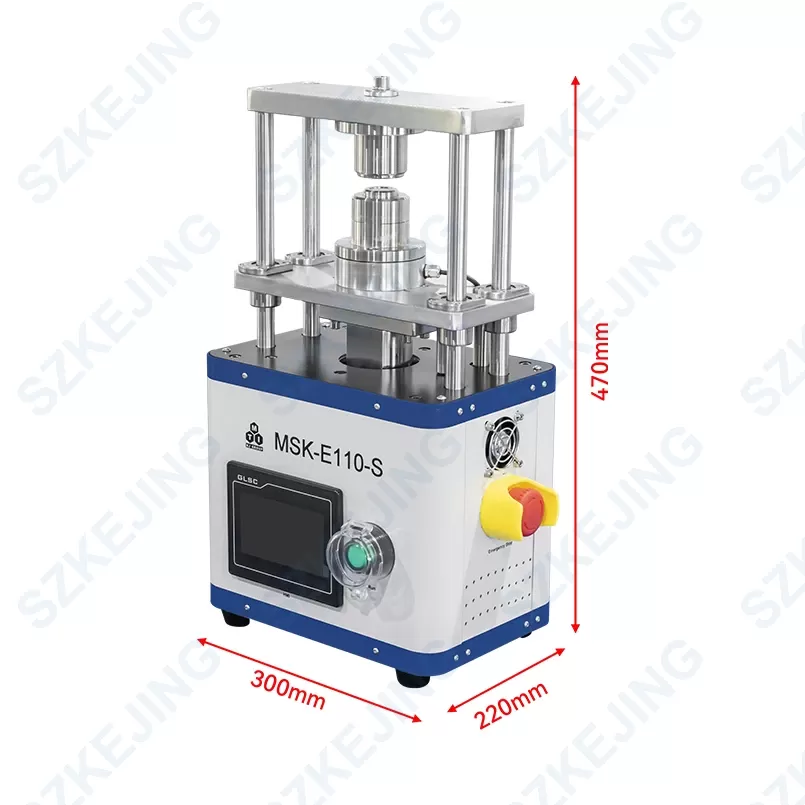

About L300*W220*H470mm

Net weight:

About 32kg

Features

Closed-loop control of crimping pressure. Equipped with a pressure sensor to precisely control the crimping pressure.
Motor-driven mold mechanical pressurization for coin cell sealing. No oil leakage risk or gas consumption.
Digital setting of crimping time via touch screen.
Compact and lightweight. It can lie flat to pass through the transition chamber into the glove box and be used in the glove box.
Precision mold design ensures accurate and reliable crimping forming, excellent sealing quality, and long service life.
Different molds can be configured to crimp and disassemble coin cells of different specifications, realizing multi-functional use of one machine.

Specifications

Power	Single-phase AC 110-220V ±10%, frequency 50/60Hz, power 360W
Operating Environment	Dry room or glove box
Applicable Range	φ5.0-φ35mm / Height Max: 10mm
Crimping Pressure	Intermittently adjustable pressure. Recommended crimping pressure for CR20 series coin cells: 500-700KG, Max: 1000KG
Equipment Speed	Approx. 2.5 pcs/min (for reference only; the specific time is subject to actual crimping, as crimping time varies with different battery sizes)
Stroke	15mm
Mold	Standard CR20 series crimping mold; other specifications available as optional
Mold Service Life	Max. 5000 times crimping
Disassembling Mold	Optional CR16, CR20, CR24, CR30 molds, or non-standard customized molds for diameter φ13mm~φ35mm / height Max: 10mm
Dimension	About L300W220H470mm
Weight	About 32kg
Warranty	1 year
