Vacuum Drying Oven-DZF-6050

DZF – 6050 vacuum drying oven is an appliance used for powder drying, baking, and the disinfection and sterilization of various glass containers. It is particularly suitable for quickly and efficiently drying items that are sensitive to dry heat, oxidizable substances, and complex components.

Functional Features

Cuboid working chamber to maximize effective volume. Micro – computer temperature controller for precise and reliable temperature control.
Tempered double – layer glass door for clear observation of the interior of the working chamber.
The door seal can be tightly adjusted. The integrally – formed silicone rubber door seal ensures high vacuum in the chamber.
The working chamber is made of 304 stainless steel for durability and ease of cleaning.

Technical Parameters

Power Supply	Single – phase AC220V, frequency 50Hz, power approximately 1.45KW
Temperature Control Range	RT + 10 ~ 200°C
Temperature Resolution / Fluctuation	0.1°C / ±1°C
Achievable Vacuum	133Pa
Vacuum Gauge	Mechanical pointer type
Working Environment Temperature	+5 ~ 40°C
Shelf	2 pieces
Working Chamber Material	Stainless steel (SUS304)

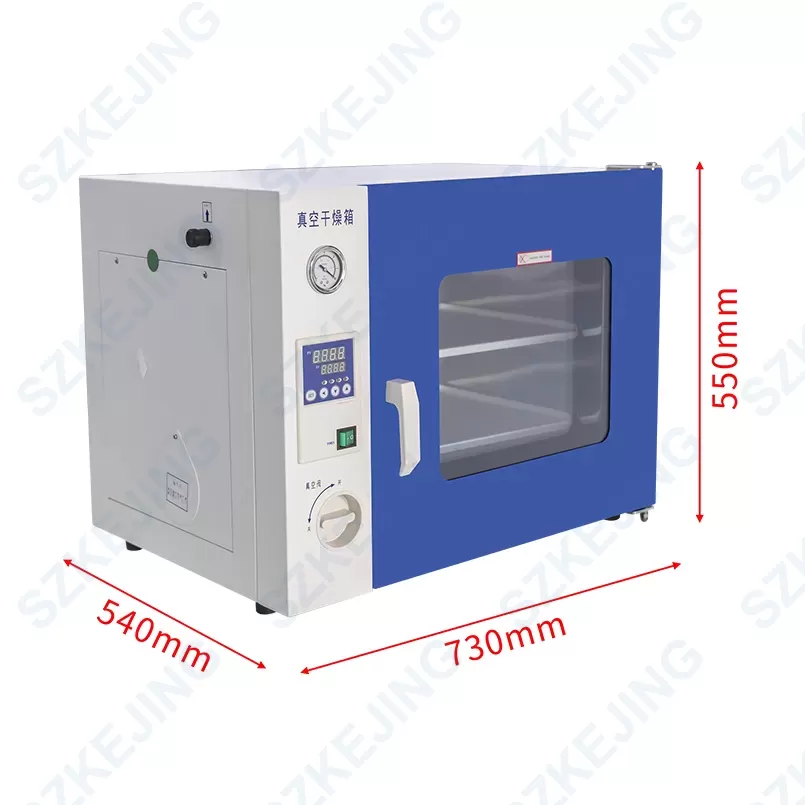

Equipment Size	Inner cavity approximately W415×D370×H340 mm (subject to actual product), outer shape approximately W730×D540×H550 mm (subject to actual product)
Weight	Approximately 70kg (subject to actual product)
