Viscometer-MSK-SFM-VT8S

MSK-SFM – VTS viscometer with temperature measurement adopts key components such as high – performance imported micro – computer chips and imported stepping motors. It has functions such as liquid crystal backlight display, program setting, automatic control, timing measurement, and automatic scanning. It can measure the absolute viscosity of Newtonian fluids or the apparent viscosity of non – Newtonian fluids. It is widely used in the production industries, scientific research units, and universities of fluids such as grease, paint, coating, slurry, textile, food, adhesive, cosmetics, and semi – fluids.

Functional Features

Measurement data is directly displayed on the liquid crystal screen without secondary calculation.
It adopts micro – computer – driven technology and imported stepping motors, with precise and stable rotation speed.
It uses switching power supply technology, with a wide range of voltage and frequency, and fluctuations in power supply will not affect measurement accuracy.
The level display device is located below the operation panel and can be adjusted while sitting, which is very convenient.
The viscosity value display accuracy is precise to two decimal places, that is, 0.01mPa.S (full – scale).
It has the function of timing measurement, which is very useful for detecting non – Newtonian fluids.
It is equipped with a standard temperature probe to measure the temperature of the sample being tested in real – time.
It can automatically display the maximum viscosity range that can be measured by the selected combination.
It has a printing interface and can be directly connected to a micro – printer to print various data (a printer needs to be selected, and the standard configuration does not include a printer).
Optionally equipped with a No. 0 rotor, suitable for measuring the viscosity of 1 – 80CP ultra – low – viscosity samples.

Technical Parameters

Power Supply	Voltage single – phase AC 100 – 240V ± 10%, frequency 50Hz/60Hz, power consumption about 50W
Display Method	Large – screen liquid crystal display
Rotation Speed	0.3/0.6/1.5/3/6/12/30/60 RPM, a total of 8 – gear rotation speed options are available
Rotors	Standard – equipped with 1#, 2#, 3#, 4# four types of rotors, and 0# rotor is optional
0# Rotor（Optional）	Applicable to the measurement of low – viscosity fluids below 15cp, measurement range 1 – 80CP, test sample volume 22mL
Measurement Range	1 – 2,000,000CP
Viscosity Display Precision	0.01CP
Measurement Error	±2% FS (Newtonian fluid)
Repeatability Error	±0.5% FS (Newtonian fluid)
Timing Measurement Function	Available
RTD Temperature Sensor	Temperature measurement range: 0 – 100 °C, precision 0.1 °C, error ≤ ±0.5 °C
Measurement Range Display	Can automatically display the maximum viscosity value that can be measured by the combination of the selected rotor and rotation speed
Other Optional Components	Special constant – temperature water bath DC0506N for viscometer, glass thermostatic water bath

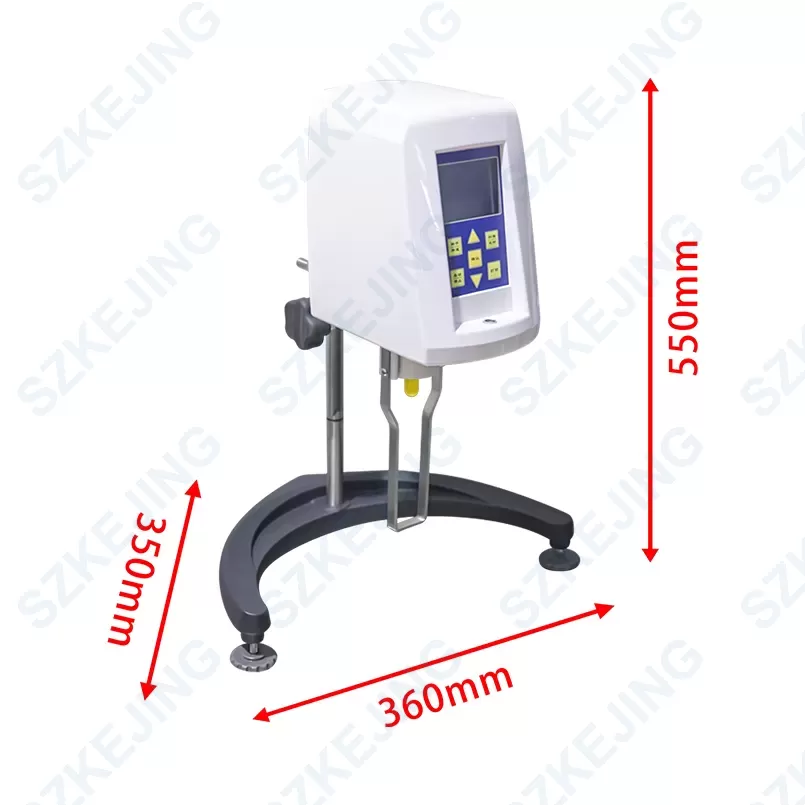

Equipment Size	Approximately L 300mm × W 300mm × H 550mm
Weight	Approximately 5KG
