Features
- Low consumption of coating material and substrates, easy‑to‑use, ideal for process verification.
- High precision and good wear resistance of the coating substrate.
- The coating substrate is equipped with vacuum adsorption function, with vacuum pump supplied as standard.
- Built‑in infrared drying function with controllable temperature.
- Touch‑screen control, adjustable parameters.
- Multiple coating applicators are available as optional accessories.
- Suitable for operation inside glove boxes.
- Solvent treatment device is required for operation outside glove boxes.
| Specifications | |
| Power Supply | Single-phase AC220V±10%, 50Hz, 2.2kW |
| Coating Type | Single‑piece blade coating |
| Environment | Normal environment, glove box (KF40 feed‑through assembly is required for nitrogen and other inert gas environments) |
| Heating Temperature | Max. 120 ℃ |
| Coating Speed | 20‑120 mm/s, manually adjustable |
| Coating Applicator (Optional) | 1. Model: Blade KTQ‑150S‑C
2. Blade precision: Straightness ≤4 μm 3. Blade gap height: 0‑3 mm, manually adjustable 4. Precision adjustment: a. Graduated micrometer head (standard): 10 μm b. Digital micrometer head: 1 μm |
| Coating Dimension | Max. L270 × W150 mm (dependent on actual coating material quantity) |
| Vacuum Pump | 1. Vacuum adsorption function: Max. vacuum degree ‑84 kPa, Max. flow rate 30 L/min, power 120 W
2. Ventilation & exhaust function: Max. vacuum degree ‑91 kPa, Max. flow rate 91 L/min, power 320 W |
| Coating Thickness | Precision: ±3 μm
Reference condition: graphite negative electrode coating speed, viscosity 2000 mPa·s, solid content 45% |

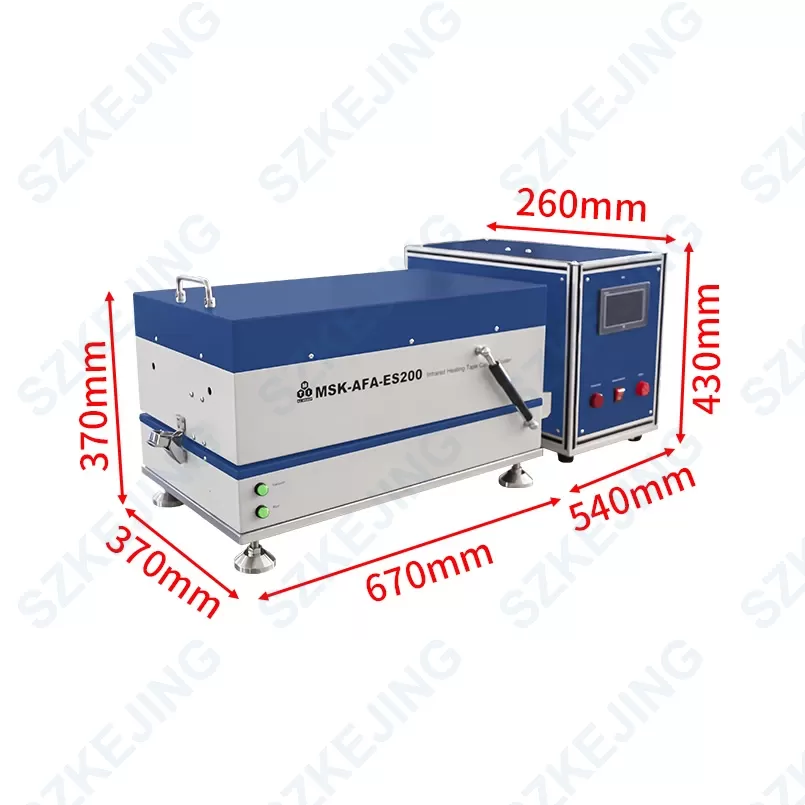

| Equipment Dimensions | Coater: approx. L670 × W370 × H370 mm
Control box: approx. L540 × W260 × H430 mm (excluding aviation sockets and air pipe connectors) Coating applicator: approx. L190 × W80 × H85 mm |
| Weight | Coater: approx. 70 kg (including sealing cover)
Control box: approx. 30 kg (excluding aviation sockets and air pipe connectors) Coating applicator: approx. 0.9 kg |
