Features:
- Small demand for coatings and substrates, easy to use, suitable for process verification.
- The coated substrate plate has high precision and good wear resistance.
- The coated substrate plate is equipped with a vacuum adsorption function and a vacuum pump is provided as standard.
- The coated substrate plate has a heating function with controllable temperature.
- Multiple coating applicators are available as options.
- Can be used in a glove box.
- Complies with UL certification standards.
| Specification | |
|---|---|
| Power | Single-phase AC110-220V±10%, frequency 50/60Hz, power 280W |
| Coating type | Single-piece blade coating |
| Environment | Conventional environment, glove box (nitrogen, argon) |
| Coating range | Max. L190*W90 mm (Within the allowable coating range, the actual coating size is related to the parameters of the coating applicator) |
| Coating speed | 10～48 mm/s, manually adjustable |
| Heating temperature | Room temperature～120℃ |
| Coating applicator | a) Scraper: KTQ-80F (optional)
b) Blade accuracy: Straightness ≤4μm c) Blade height: 0～3mm, manually adjustable d) Adjustment accuracy: 5μm |
| Coating size | Max. L190×W80 mm (related to actual coating capacity) |
| Coating thickness | Refer to graphite anode coating speed, viscosity 2000mPa·s, solid content 45% |

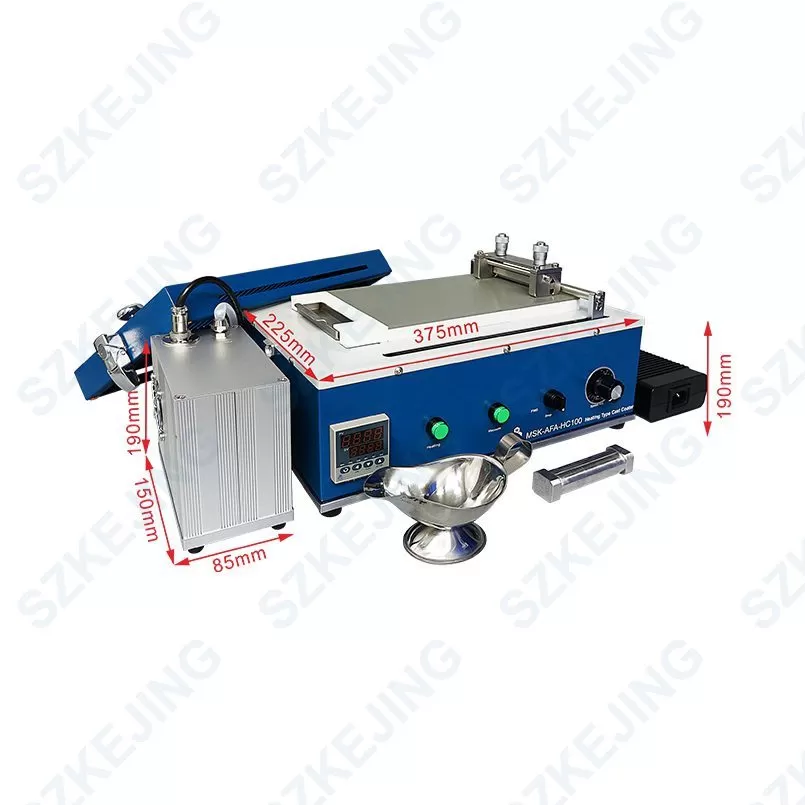

| Dimension | a) Coater: About L400*W250*H190mm (including sealed cover)

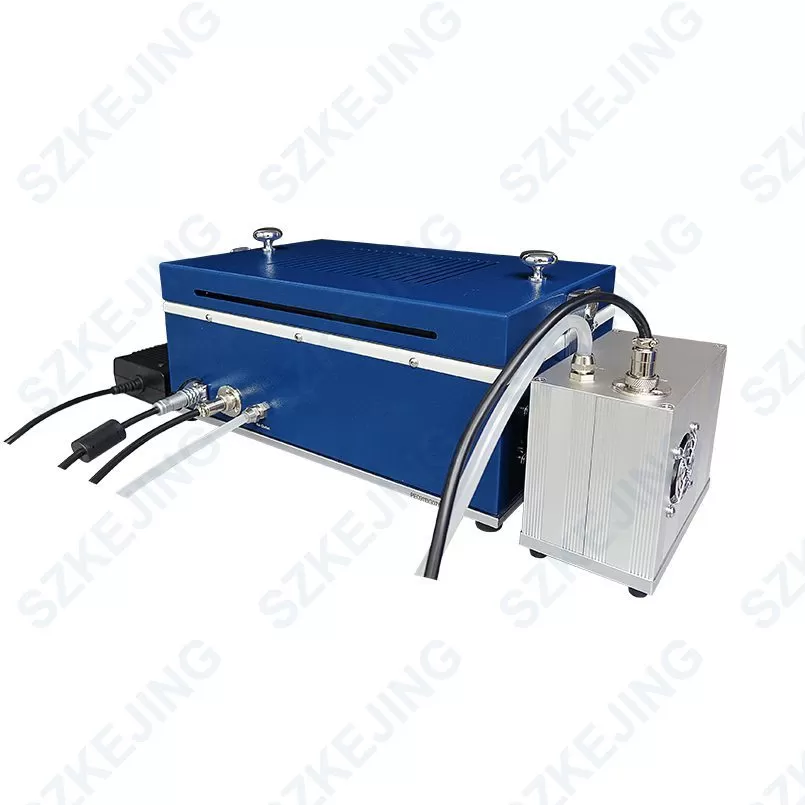

b) External vacuum pump: About L150*W85*H190mm (excluding aviation socket and air pipe joint) c) Coating applicator: About L110*W35*H55mm |
| Weight | a) Coater: About 19.5kg (including sealed cover)
b) External vacuum pump: About 1kg (excluding aviation socket and air pipe joint) c) Coating applicator: About 0.35kg |
| Warranty | 1 year |
