| Power Supply |
Single-phase AC220V±10%, 50Hz, 5KW |
| Air Supply |
0.5–0.8 MPa compressed air |
| Coating Type |
Continuous coating, intermittent coating |
| Applicable Systems |
Cathode oil-based slurries (LCO, LFP, LMO, NCM), anode water-based slurries (graphite, silicon-based anode), supercapacitor slurries |
| Guide Roller Width |
300 mm |
| Substrate Width |
Max. 280 mm |
| Coating Width |
50 ~ 260 mm, adjustable via baffles |
| Mechanical Speed |
0.01–0.7 m/min |
| Coating Steel Roller |
Φ100 mm, chrome-plated surface |
| Coating Rubber Roller |
Φ100 mm, surface covered with EPDM (Ethylene Propylene Diene Monomer) |
| Rubber Roller Movement |
Pneumatic cylinder driven |
| Coating Doctor Blade |
Φ100 mm, chrome-plated surface |
| Blade Adjustment |
Manual adjustment |
| Coating Length |
Coating length: 10 ~ 5000 mm; blank margin length: 10 ~ 500 mm |
| Slurry Tank Volume |
Approx. 0.7 L (at coating width of 160 mm) |
| Drying Unit |
Single section length 0.8 m, total 1 section (hot air drying as standard) |
| Drying Temperature |
Max. 150°C, uniformity ±5°C (working area, excluding start and end sections), adjustable |
| Air Inlet |
Centrifugal fan, air flow 198 m³/h, power 50 W |
| Exhaust |
Centrifugal fan, air flow 570 m³/h, power 200 W; port: 120 mm (for connecting 5-inch aluminum foil duct) |
| Heating Chamber |
U-type heating tubes, total power 4 kW |
| Winding/Unwinding Diameter |
Max. Φ250 mm |
| Winding/Unwinding Core |
3-inch air expanding shaft |
| Operation Direction |
Along the foil transport direction, the right side is operation side |

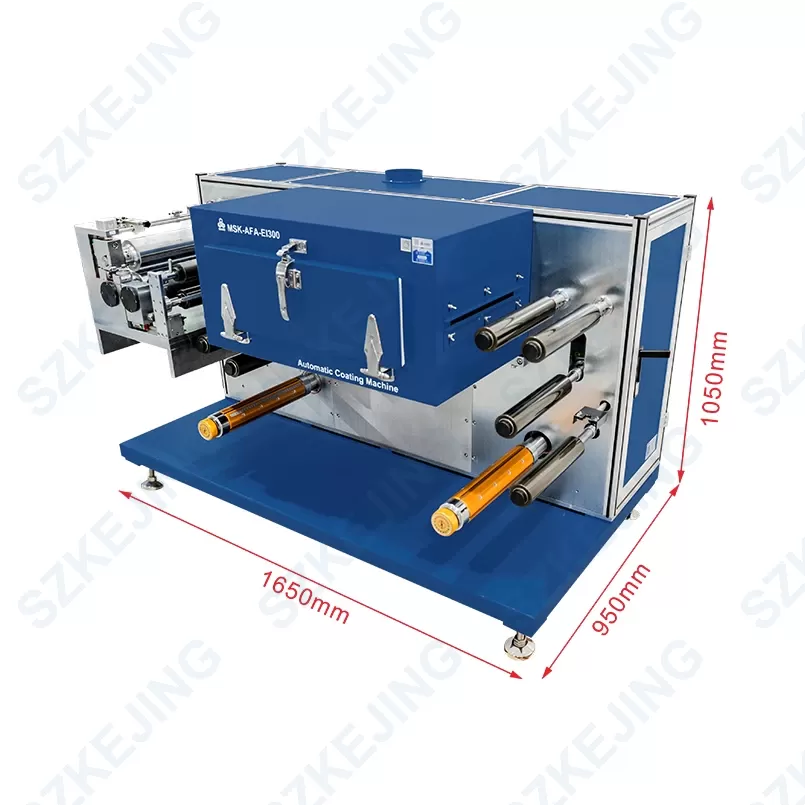

| Dimensions |
Approx. L1650*W950*H1050mm |
| Weight |
Approx. 1000 kg |
