50T Electric Cold Isostatic Press-YLJ-CIP-50A

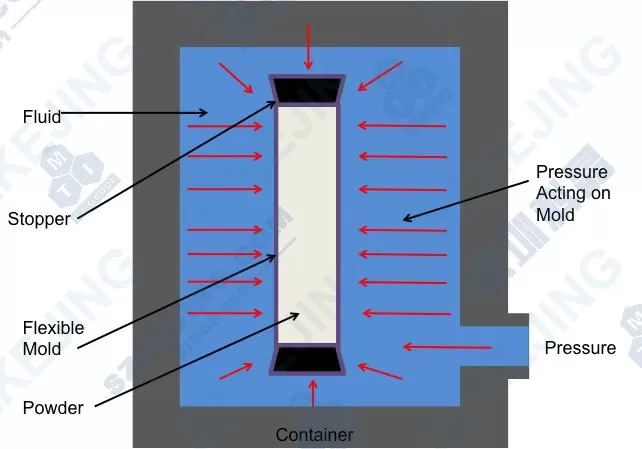

Application range: YLJ-CIP-50A is a CE-certified electric cold isostatic press. Its mold volume is Φ50mm × 150mm H, and the maximum withstanding pressure is 250MPa. This equipment is particularly suitable for manufacturing various high-quality ceramic rods, sheets, targets, and so on.

Model: YLJ-CIP-50A
Dimension: About 50 (L) X 420(W) X 1010 (H) mm
Net weight: About 200kg

Specifications:
Voltage	AC 208~240V, 50/60Hz
Power	330W
Press Pressure Capacity	0 – 50T
Cylinder Stroke	Max. 50mm
Equal-Diameter Press Mold Volume	50 I.D. x 150H mm
Mold	Pressure gauge display value (MPa)
	Actual pressure applied to the mold (Ton)	15	30	50
	Actual pressure inside the CIP mold (MPa)	76	153	255

Working Area Dimensions	● D1: 180mm ● D2: 210mm ● D3: 150mm ● H1: 450mm ● H2: 400mm
Dimension	50 (L) X 420(W) X 1010 (H) mm
Weight	200 Kg
Application Precautions	Liquid rubber can be used to coat and seal products, which serves the functions of isolation and protection.
Precautions for Use	● The pressure holding time should generally not exceed 8 minutes. ● The pressure value will drop slightly during pressure holding, which is a normal phenomenon. Do not continue to pressurize during this period. ● Ensure that the pressure is completely released before pressurization. Start pressurizing only after the handwheel and pressure relief valve are tightened. ● Do not exceed the maximum stroke of the hydraulic cylinder (50mm) during pressurization.
Certification	CE Certification
Warranty	1 year (Consumables such as sealing rings are not covered by the warranty.)
