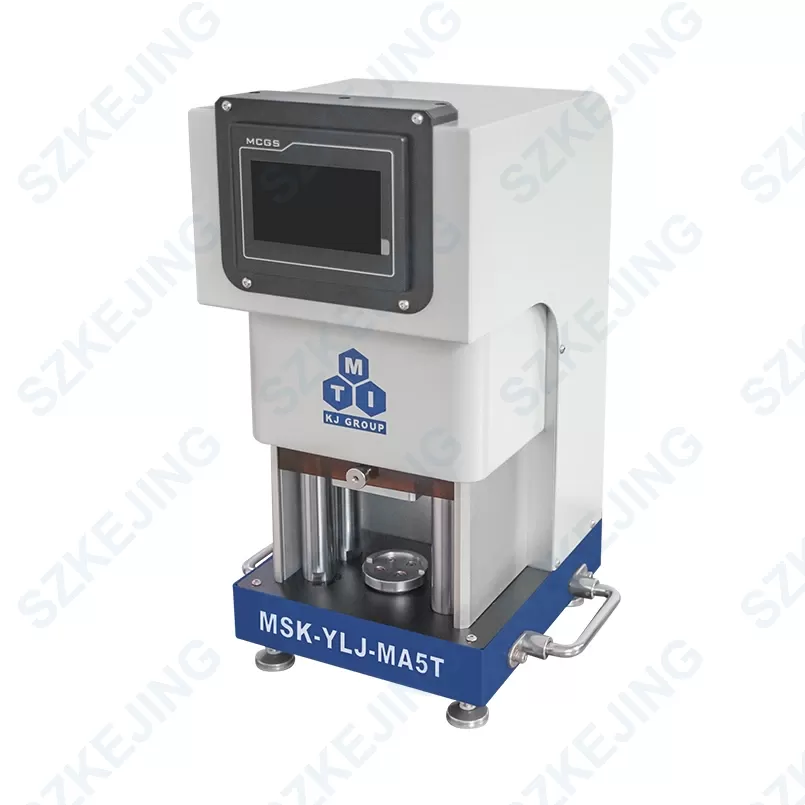

Electric Press-MSK-YLJ-MA5T

Application range: MSK-YLJ-MA5T electric press is a pressure-adjustable electric press with a maximum pressure of 5 tons. The equipment is mainly composed of a force measurement module, an electric mechanism and a control system, and can provide the required pressure for solid-state battery testing. This device can be used with various solid-state battery test fixtures of our company. It is suitable for process exploration of products in laboratories or sample lines.

Model: MSK-YLJ-MA5T

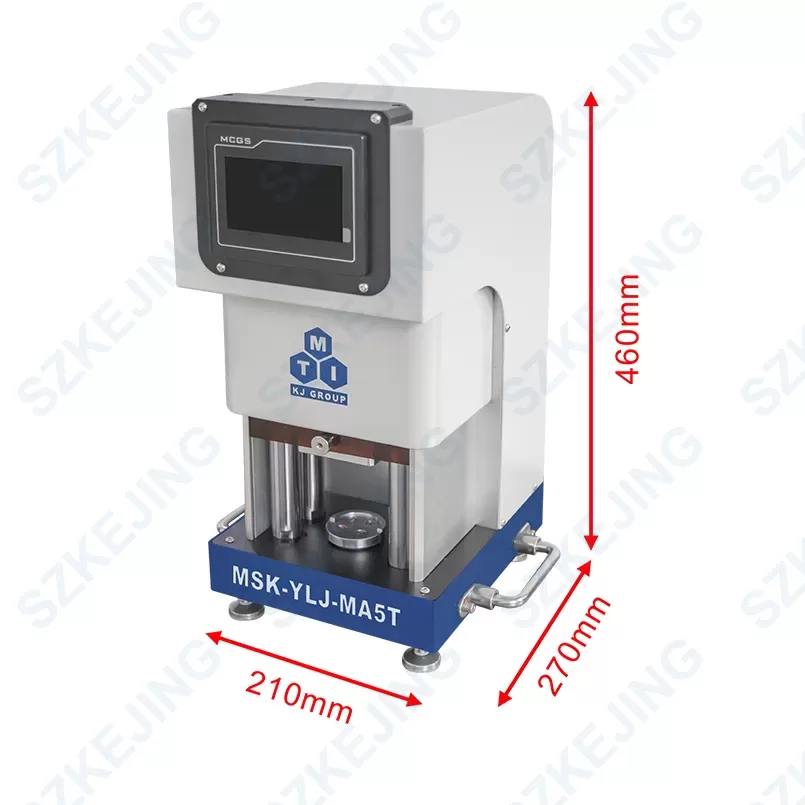

Dimension: About L 210mm×W 270mm×H 460mm (Handles are not included; please refer to the actual product)
Net weight: About 40kg

Features:

Multiple pressure amplification mechanisms for providing large pressure;
Compact overall dimensions, suitable for use inside glove boxes;
Touchscreen operation enables convenient and quick adjustment and control of equipment parameters;
Equipped with safety detection devices to ensure operational safety;
Quick-release pressure plates for meeting usage scenarios with different heights.

Specifications:
Power	Single-phase AC220V, frequency 50Hz, power approx. 280W
Operating Environment	Temperature: 25±3℃, Humidity: 30-90%RH or lower
Pressure Range	Max. 5T
Pressing Height	65-95mm
Pressing Surface Size	70mm×70mm
Dimension	About L 210mm×W 270mm×H 460mm (Handles are not included; please refer to the actual product)
Weight	About 40kg
Warranty	1 year
