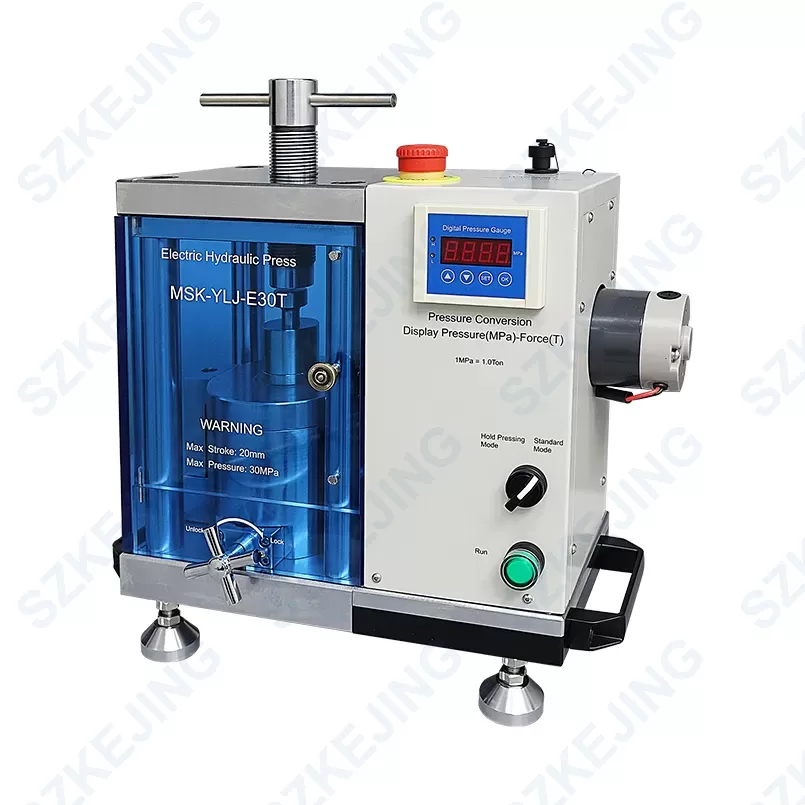

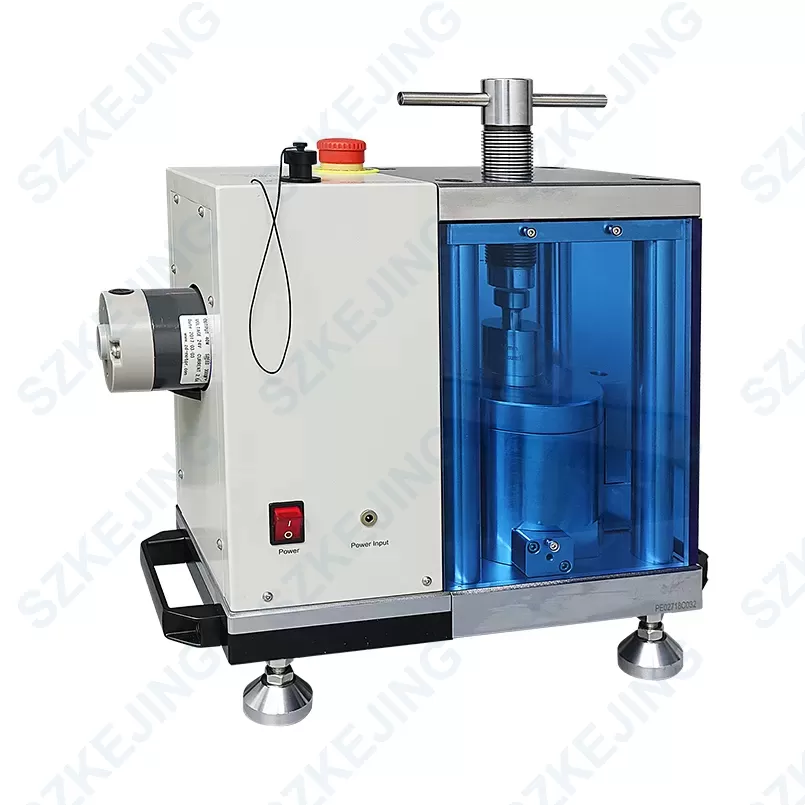

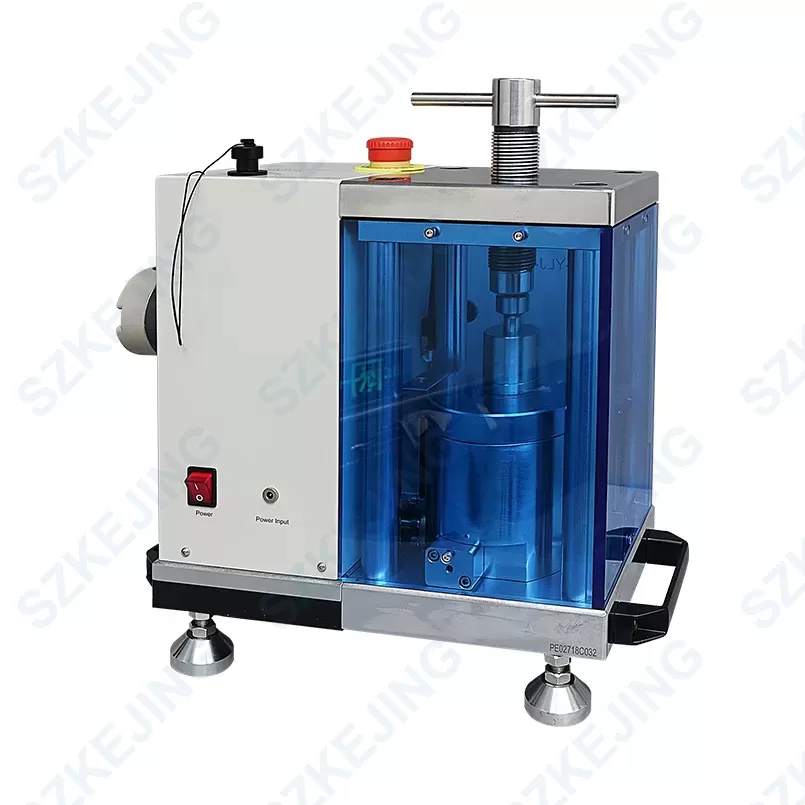

Electric Tablet Press-MSK-YLJ-E30T

Application range: MSK-YLJ-E30T electric tablet press is a device that can press powder materials into sheets, and can be widely used in industries such as silicate, ceramics, powder metallurgy, and lithium batteries. This equipment uses a motor as the hydraulic drive system and adopts a digital display pressure sensor to accurately control the pressing force, making it an ideal choice for R&D, production, and small-batch trial production of powder tableting equipment.

Model: MSK-YLJ-E30T

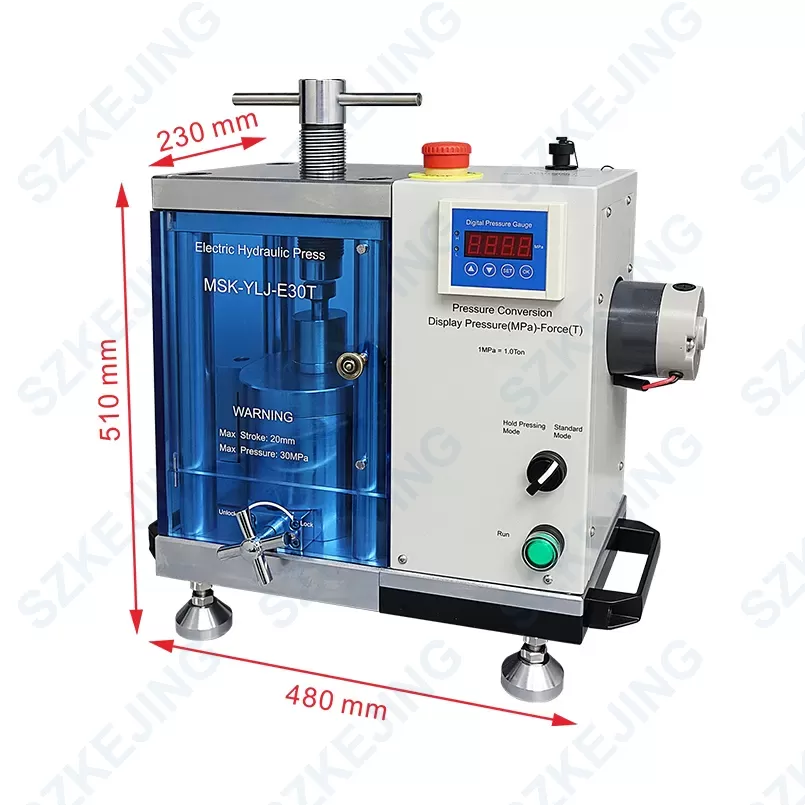

Dimension: About L480*W230*H510mm
Net weight: About 71kg

Features:

Electric-driven pressing, with a maximum tableting pressure of 30T.
Pressure is controlled by a high-precision digital pressure gauge.
It has excellent long-term pressure holding performance.
Equipped with automatic pressure compensation function.
Features overpressure relief and electrical interlock protection to prevent damage from overpressure.
Desktop design, compact and convenient, easy to operate and maintain.

Specifications:
Power	Single-phase AC110~220V±10%, frequency 50Hz/60Hz, power 100W, grounding resistance <4Ω
Working Pressure	Max.30T
Platform Size	Diameter 108mm
Pressure Stroke	Max.20mm
Pressure Accuracy	±0.5T
Pressure Fluctuation	Stability ≤1MPa/5min, with automatic pressure compensation
Pressure Value Error	≤2%
Dimension	About L480W230H510mm
Weight	About 71kg
Warranty	1 year
