| Specifications |
| Product Features | • Compact benchtop design with 4 grinding‑mixing jars

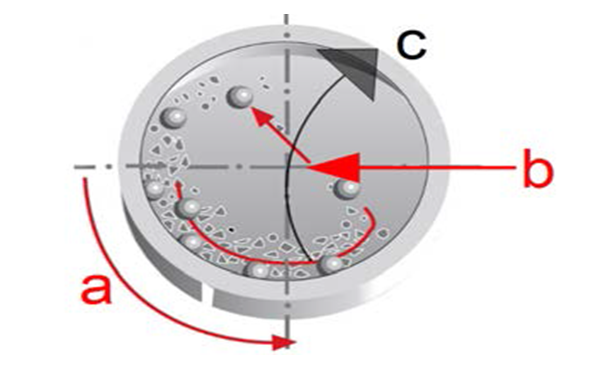

• Touch‑screen controller for simple programming; multi‑speed grinding, rotation direction, grinding time and cycle grinding parameters are configurable • High centrifugal force applied to samples for high‑efficiency grinding • Suitable for mechanical alloying, mixing, homogenization and crushing
|
| Basic Parameters | • Rated Voltage: 220V AC

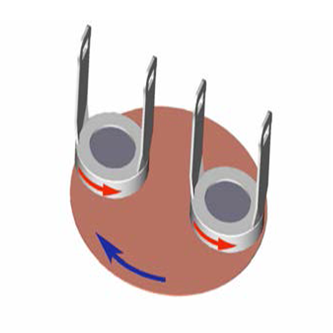

• Max. Power: 750W • Revolution Speed: 50‑324rpm adjustable • Rotation Speed: 10‑648rpm adjustable • Speed Ratio: Revolution : Rotation = 1:2 |

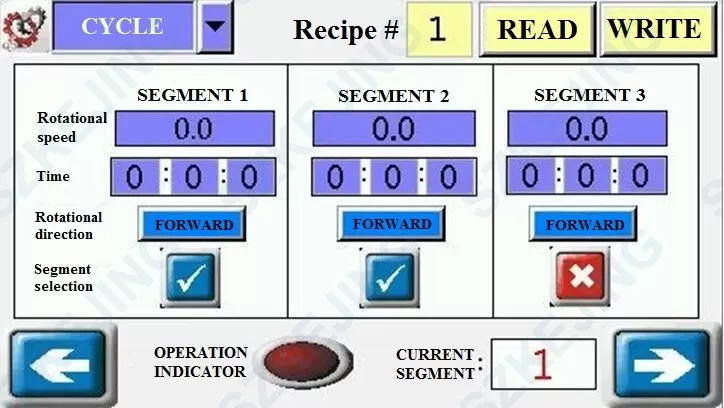

| Touch‑screen Control System | • Digital display of grinding speed and time segments
• Up to 5‑segment speed control • Maximum 10 recipes storable • Rotation direction selectable: clockwise / counter‑clockwise
|
| Sample Inlet & Outlet Size | • Feed size: Brittle material ＜10 mm; other materials ＜3 mm
• Discharge size: Wet grinding average particle size ＜1 μmDry grinding average particle size ＜20 μmNote: Discharge size depends on material physical properties and grinding process including feed size, grinding media, grinding time, etc. Minimum achievable particle size can reach 0.1 μm based on user feedback. |
| Grinding Jars | • 4 fixed supports for direct mounting of 500 mL grinding jars; 250 mL grinding jars can be fitted with bottom nylon pads
• Various jar and grinding ball materials available: Nylon, Alumina, Zirconia, Agate, etc. Contact our sales team for detailed information. |
| Grinding
Balls Reference |
 |
| Noise Level | 55‑70 dB |
| Fixing Device | • 4‑piece V‑type fixed supports
• Convenient for jar mounting. Directly compatible with 500 mL grinding jars; 250 mL grinding jars can be installed with bottom nylon pads. |
| Product Dimensions | 755mm(L) × 495mm(W) × 535mm(H) |
| Net Weight | 96 Kg |
| Application Notes | • SUS304 mixing jars are suitable for grinding various metallic materials.
• For oxide material grinding, select alumina / nylon jars and zirconia grinding media. Aluminum jars and stainless‑steel grinding balls shall not be used. • When operating this planetary ball mill, use 2 or 4 grinding jars of identical weight in symmetric arrangement. If only one grinding jar is used, fit another jar of equal weight on the opposite symmetric position. Otherwise, eccentric force will cause equipment damage. • Optional: SYU‑3 ultrasonic filtration system from our company for product filtration. |
| Quality Certification | CE Certification |
| Warranty | One‑year warranty with lifetime technical support.Click to view after‑sales service commitment. |
