Features
- Customized Agitation: Different mixing jars are equipped with specific agitator types (ribbon or blade style) and shaft configurations based on the jar size to ensure optimal performance.
- High-Performance Mixing: Features forward and reverse rotation capabilities, enabling high-speed mixing of higher viscosity slurries with excellent uniformity.
- Vacuum Deaeration: The unit features a built-in vacuum system that effectively removes bubbles generated during the mixing process, ensuring a high-quality, bubble-free mixture.
- Programmable Control: Supports multi-step speed operation, allowing users to set specific mixing speeds and durations for each stage.
- Versatile Capacity: Selectable mixing jar volumes include 50ml, 150ml, and 500ml to suit various batch sizes.
- Safety Design: Engineered with a specialized bracket design to facilitate easy operation and guarantee safety during the vacuum mixing process.
| Specifications | |
| Power Supply | Single-Phase AC 110–220V ± 10%, 50/60Hz, Power Rating 280W |
| Working Environment | Recommended Temp: 25 ± 3°C; Humidity: 30–90% RH; No vibration or electromagnetic interference |
| Speed | Max.600rpm |
| Vacuum System | Built-in vacuum pump; Vacuum degree ≥ -70 kPa |
| Mixing Time | 0 – 600 min (Settable) |
| Multi-Stage Function | 3-stage speed control setting |
| Viscosity Compatibility | Max. 10,000 mPa.s at 600 rpm (Higher viscosity materials can be processed at lower speeds) |

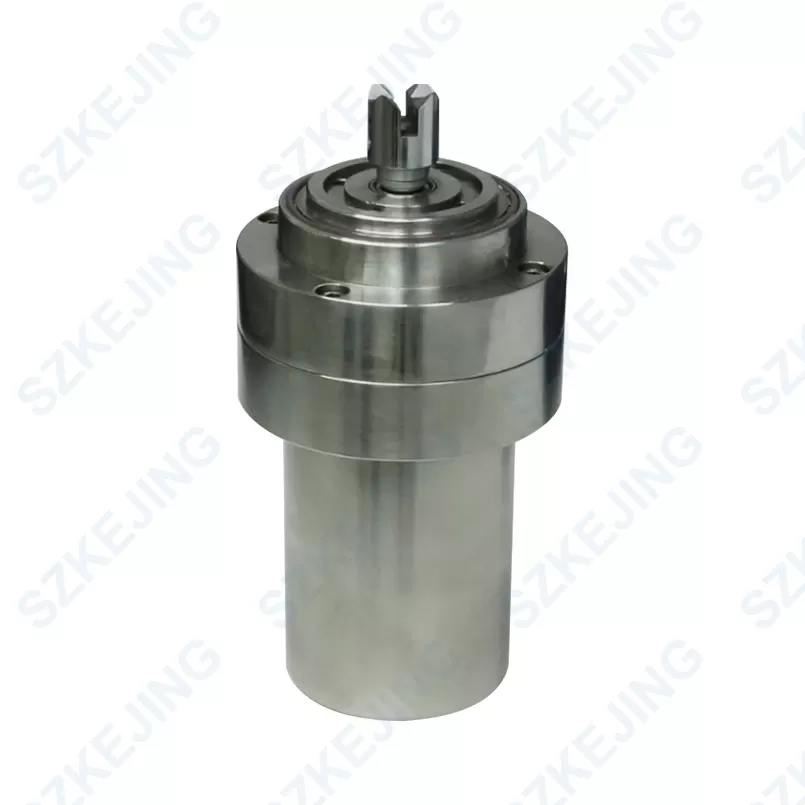

| Mixing Jar Capacities | 50ml Jar: Max. Effective Volume 30ml
150ml Jar: Max. Effective Volume 120ml 500ml Jar: Max. Effective Volume 400ml |
| Mixing Paddle Configuration | 50ml Jar: Single-shaft blade paddle• 150ml Jar: Double-shaft blade paddle• 500ml Jar: Double-shaft planetary screw/ribbon paddle |

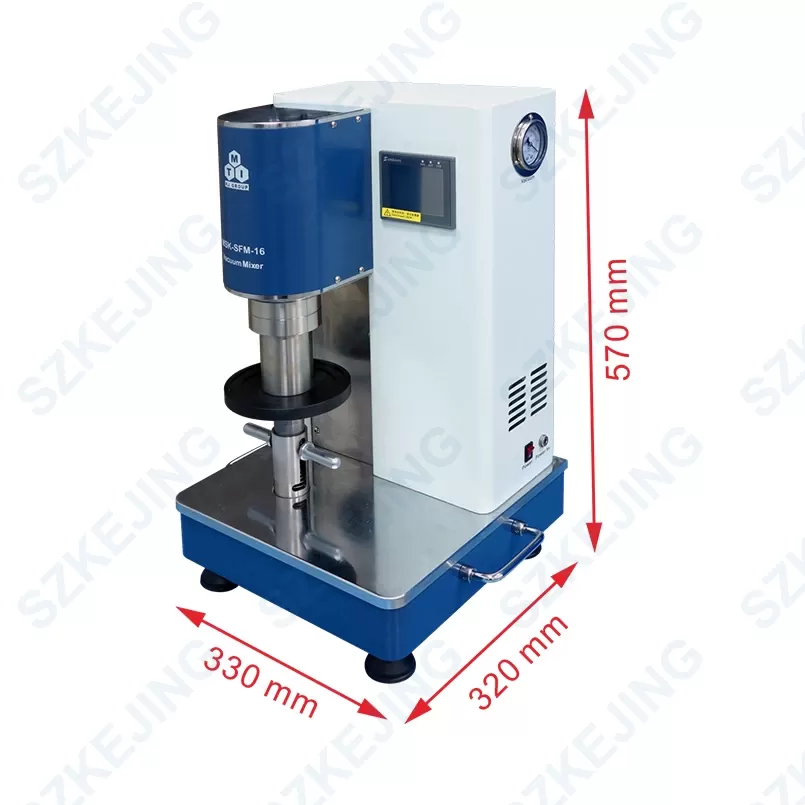

| Equipment Dimensions | L330*W320*H570mm |
| Net Weight | Approx. 35 KG |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
