Features
- Optimized Agitation: Mixing vessels are equipped with both disc-type and blade-type agitators to ensure superior mixing performance.
- High-Speed Efficiency: Operates at speeds up to 1500 rpm for enhanced dispersion results.
- High Viscosity Capability: Capable of high-speed mixing for relatively high-viscosity slurries, ensuring excellent uniformity.
- Integrated Vacuum Deaeration: Features a built-in vacuum system to effectively eliminate gas bubbles generated during the mixing process.
- Programmable Operation: Supports multi-stage speed operation, allowing users to set specific mixing speeds and durations for different stages.

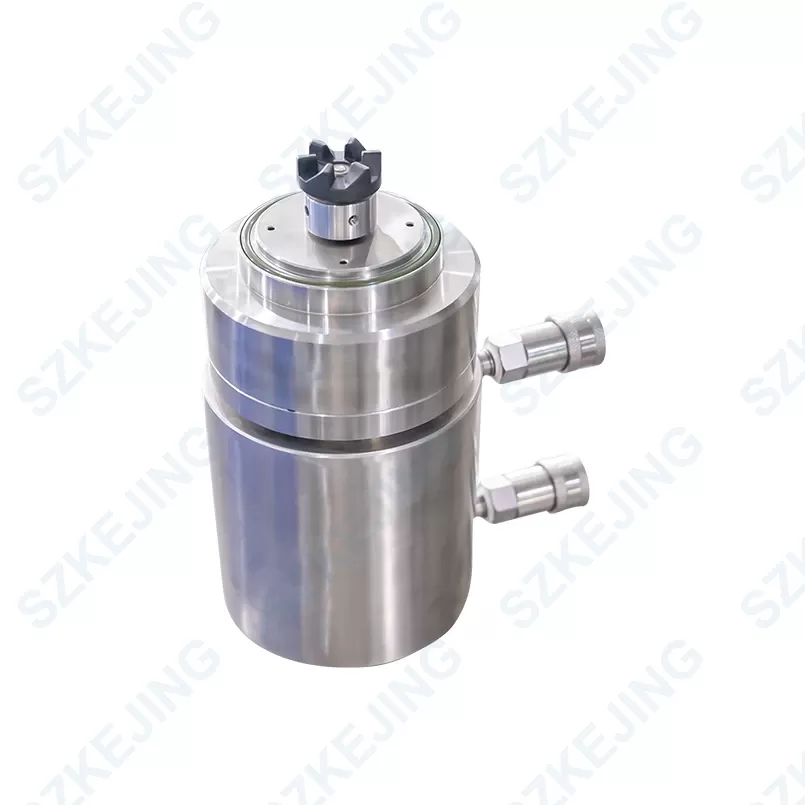

- Temperature Control: The vessel is designed with a cooling jacket to lower mixing temperatures via water circulation (Non-jacketed option available).
- Versatile Vessel Options: Available with effective vessel capacities of 50ml, 200ml, 500ml, and 1000ml.
- Safety Design: Equipped with a secure bracket mechanism to ensure easy operation and safety during the vacuum mixing process.
| Specifications | |
| Power Supply | Single-Phase AC220V ±10%, 50/60Hz, Power: 1.3 KW |
| Operating Environment | Recommended Temperature: 25±3°C;
Humidity: 30-90% RH; Free from vibration and electromagnetic interference |
| Rotation Speed | 50ml Vessel: Max. 1500 rpm
200ml Vessel: Revolution Max. 500 rpm, Rotation Max. 1500 rpm (Ratio 1:3) 500ml Vessel: Revolution Max. 500 rpm, Rotation Max. 1500 rpm (Ratio 1:3) 1000ml Vessel: Revolution Max. 500 rpm, Rotation Max. 1500 rpm (Ratio 1:3) |
| Vacuum System | Built-in vacuum pump. Vacuum degree ≥ -75 KPa (under standard atmospheric pressure) |
| Mixing Time | 1 – 600 min (Settable) |
| Multi-stages Function | 3-Stage Speed Settable (Range: 300 – 1500 RPM) |
| Application Viscosity | Max. 10,000 mPa.s (at 1500 rpm) |
| Mixing Cooling | Method: Standard equipped with Jacketed Mixing Tank for water cooling bath (Optional: Non-jacketed mixing tank available) |
| Cooling Water Supply | Standard equipped with CW-3000TG Chiller (Use at Room Temp 0-30°C).
(Note: Chiller is not required if the optional non-jacketed tank is selected) |
| Mixing Vessel (Processing Capacity) | 50ml Tank: Reference Effective Capacity 20ml – 50ml
200ml Tank: Reference Effective Capacity 60ml – 300ml (Recommended Max. 200ml) 500ml Tank: Reference Effective Capacity 100ml – 700ml (Recommended Max. 500ml) 1000ml Tank: Reference Effective Capacity 250ml – 1200ml |
| Mixing Vessel (Actual Volume) | 50ml Tank: Volume 90ml
200ml Tank: Volume 500ml 500ml Tank: Volume 1000ml 1000ml Tank: Volume 1700ml |
| Agitation Configuration | 50ml Tank: Standard Single-Shaft Disc Agitator
200ml Tank: Standard Dual-Shaft Disc and Blade Agitator 500ml Tank: Standard Dual-Shaft Disc and Blade Agitator 1000ml Tank: Standard Dual-Shaft Disc and Blade Agitator |

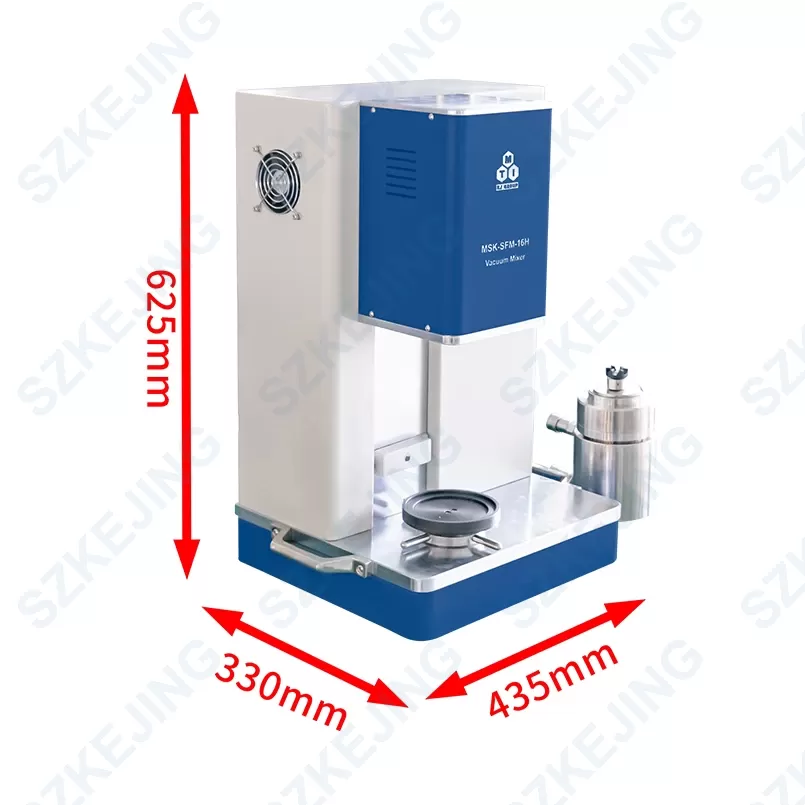

| Equipment Dimensions | L 435mm × W 330mm × H 625mm |
| Net Weight | 50kg |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
