Features
- Dual-Shaft Planetary Mixing System: The system features a unique configuration of two twist-frame paddles, a high-speed dispersion disc, and a wall scraper. This combination ensures thorough mixing with zero dead angles.
- High-Quality Mixing Tank: The 2L effective volume tank is constructed from premium SUS304 stainless steel, offering resistance to acid and alkali corrosion. It is designed with a water jacket to support cooling or heating integration.
- Advanced Control System: Equipped with PLC control and a Human-Machine Interface (HMI) touch screen for intuitive and convenient parameter setting.
- Temperature Monitoring: Built-in temperature detection functionality allows for real-time monitoring of the slurry temperature during processing.
- Automated Operation: Features an automatic tank lifting function with stable movement and “jog” (inching) operation capabilities for precise positioning.
- Vacuum Integrity: Designed for external vacuum pump connection to effectively remove bubbles generated during mixing. It maintains high vacuum retention for optimal result quality.
| Specifications | |
| Power Supply | Single-phase AC 220V ±10% (Customizable AC 110V), 50/60Hz, Power Rating,1600W (2350W including vacuum pump) |
| Vacuum Performance | Max. Vacuum: -0.095 MPa (Pressure drop < 5 KPa over 8 hours)
Vacuum Source: Customer to provide central vacuum or optional vacuum pump |
| Working Environment | Recommended Temp: 25±3°C; Humidity: 30–90% RH; No vibration or electromagnetic interference |
| Agitator Configuration | 2 × Twist-frame paddles, 1 × Dispersion disc, 1 × Scraper |
| Revolution Speed (Orbital) | Max. 47 rpm |
| Mixing Speed (Paddle) | Max. 295 rpm |
| Dispersion Speed | Max. 4000 rpm |
| Mixing Time | 0 – 9999 min (Settable) |
| Tank Capacity | Total Volume: 2.9L |
| Tank Dimensions | Inner Diameter: φ150 mm × Height: 165 mm (Includes water jacket; compatible with chiller/heater) |

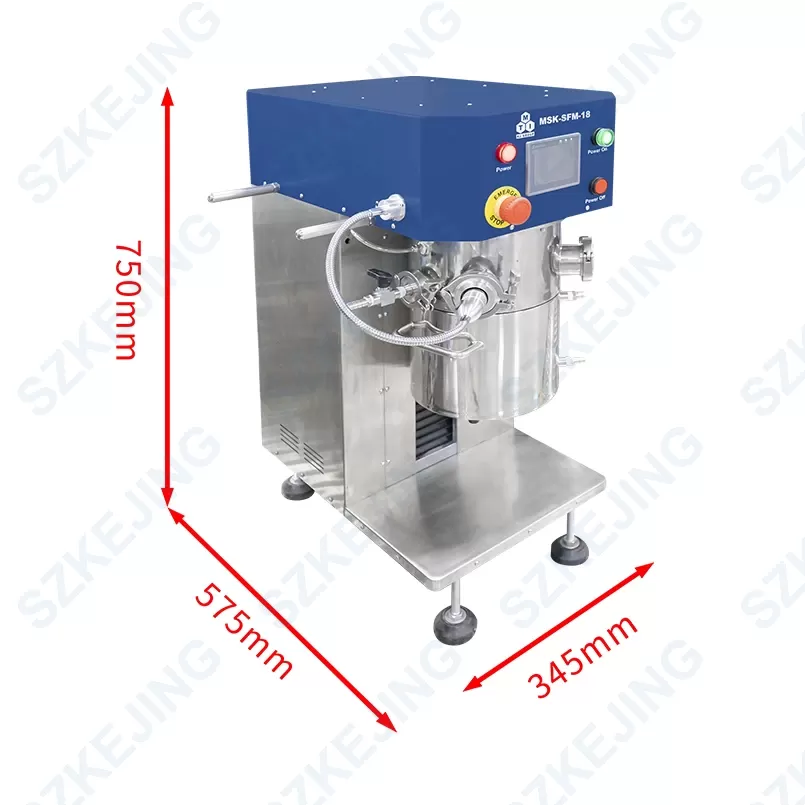

| Equipment Dimensions | L 575 × W 345 × H 750 mm |
| Net Weight | Approx. 150 kg |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
