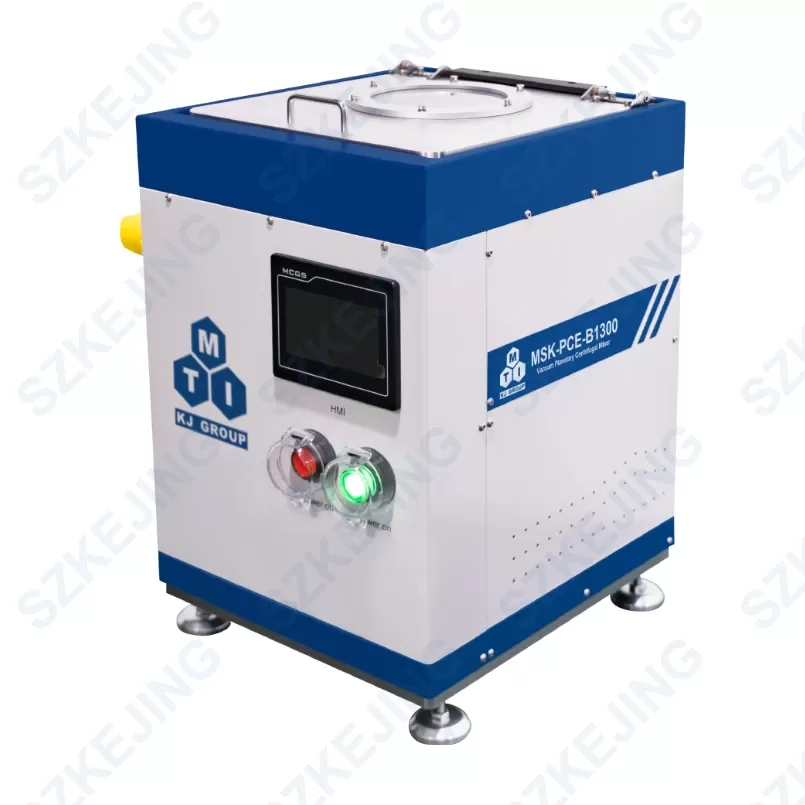

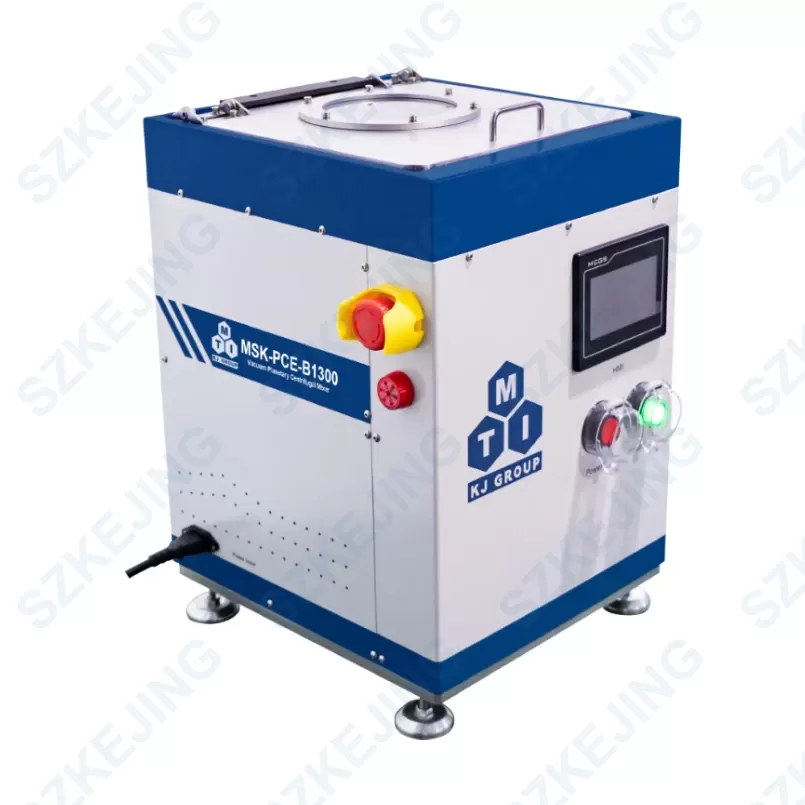

Planetary Centrifugal Vacuum Mixer- MSK PCE B1300

Application Range

The MSK‑PCE‑B1300 is a single‑channel planetary centrifugal mixer for mixing various liquid or powder materials. Sample materials include nanopowders, conductive ceramics, battery powders or slurries, carbon nanotubes, oxide powders, metal powders and more. This unit is especially suitable for high‑viscosity materials. It comes with one 300 mL mixing jar, enabling high‑speed sample mixing for improved experimental performance.

Model: MSK‑PCE‑B1300

Dimensions:420 mm(L) × 360 mm(W) × 520 mm(H)

Net Weight:Approx. 39 kg

Features

Planetary‑centrifugal mixing: centrifugal force from rotation and convection induced by revolution homogenize sample materials.
Simplified structure with belt‑drive design for reduced noise.
Counterweight adjustment via knob‑driven counterweight block.
Contact‑free operation without mixing blades to minimize contamination.
Mixing and dispersion are performed simultaneously.
Compact size and lightweight design while maintaining sufficient capacity for easy transportation.

Specifications

Power Supply	Single‑phase AC220V±10%, 50/60Hz, 1KW
Mixing Method	Planetary‑centrifugal mixing
Working Principle	Planetary gravity mixing & defoaming (Rotation / Revolution = fixed at 0.4)
Revolution Speed	Stepless speed regulation (200‑2000rpm)Max.2000rpm, max. single running time: 30min
Rotation Speed	Revolution speed ×0.4
Container Material	Container & outer lid: HDPEInner lid: PP
Optional Containers	100 mL jar — Max. effective volume: 50 mL (jar fixture included)200 mL jar — Max. effective volume: 100 mL (jar fixture included)300 mL jar — Max. effective volume: 150 mL (sample net weight 150g; 300 mL jar supplied as standard if no special request)
Balance Adjustment	Before mixing, adjust the counterweight block to the corresponding weight scale mark via the counterweight knob on the opposite side
Time Setting	0‑999 sec
Time Segments	3 segments
Recipe Groups	8 groups
Transmission Type	Belt drive
Equipment Dimensions	420mm(L) × 360mm(W) × 520mm(H)
Weight	Approx. 39kg
