Features
- High-Efficiency Processing: Capable of achieving dispersion, mixing, agitation, and granulation functions within a short processing cycle.

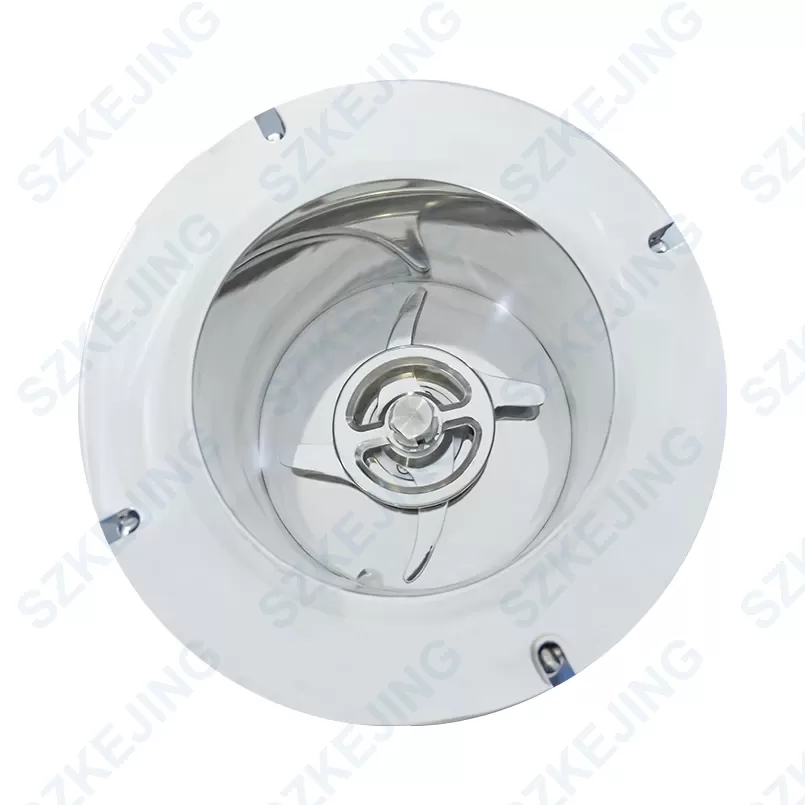

- Sanitary Design: The vessel interior is designed without unnecessary obstacles to minimize material adhesion. This ensures ideal 3-dimensional particle movement and facilitates easy disassembly and cleaning.
- Process Versatility: High universality is achieved through interchangeable blades, allowing for various processes including mixing, dispersion, granulation, fiberization, drying, and surface modification.
- Wide Particle Size Range: Capable of handling spherical granulation for materials ranging from Ultra-fine (Nano-scale) to Millimeter scale (\mu m – mm).
- Zero Dead-Zone Construction: The cylindrical body combined with a curved arc bottom eliminates dead angles, ensuring low residue and easier material discharge.
- High-Speed Performance: Equipped with a variable frequency motor capable of achieving a maximum speed of 6000 rpm.
- Integrated Cooling System: Features a jacketed design on both the top cover and the mixing vessel wall, allowing for water cooling during operation.
- Advanced Control: Designed for ease of use with a low operational barrier. Includes a programmable PLC control system for precise, flexible, and automated adjustment of process parameters.
| Specifications | |
| Power Supply | 3-Phase 5-Wire, AC380V, 50Hz, Power: Approx. 3KW (Customizable to 3-Phase AC220V, 60Hz). |
| Gas Source Requirements | Pressure ≤ 0.4 MPa. Dry compressed air required (Used strictly for sealing the mixing vessel). |
| Cooling Water Requirements | Flow Rate ≥ 60 L/min, Water Temp 10-20°C.
(Note: Customer to provide chiller or recommended model SDA-0502. Temp <10°C may cause condensation and material adhesion). |
| Construction Material | Powder contact parts: SUS304 (Optional Tungsten Carbide coating available).
Surface Finish: Polished Inner Surface, Brushed Exterior. Other parts: Carbon Steel. |
| Max. Rotation Speed | 6000rpm |
| Max. Linear Speed | 56m/s |
| Vessel Volume | Approx. 5L |
| Vessel Dimensions | Approx. Diameter 200mm x Height 200 mm |

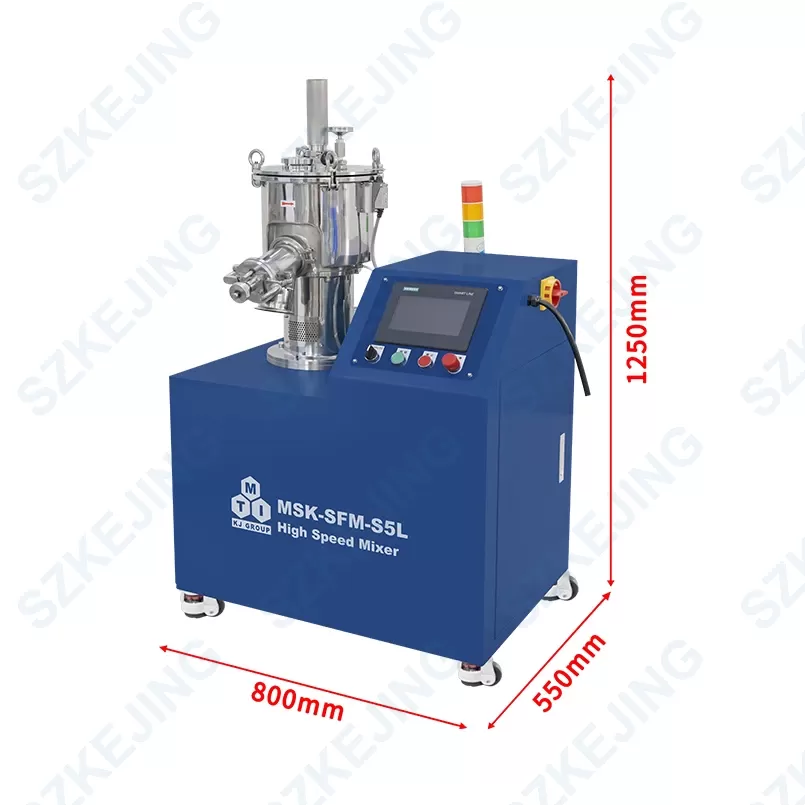

| Equipment Dimensions | Approx. L 800mm × W 600mm × H 1250mm (Includes protrusions). |
| Net Weight | Approx. 160kg |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
