Features
- Planetary Centrifugal Action: Simultaneous revolution and rotation movements ensure thorough homogenization of sample materials.
- Temperature Monitoring: Equipped with a temperature sensor to detect internal temperature changes during mixing; features an over-temperature alarm and automatic shutdown for safety.
- Compact Design: Small footprint allows for operation inside a standard glovebox.
- Contamination-Free: Contactless mixing without agitator blades minimizes the risk of sample contamination.
- Multi-Function Process: Performs mixing, dispersion, and deaeration (defoaming) simultaneously.
- Dual-Channel Capacity: Capable of processing up to two samples simultaneously.
- Versatile Operation Modes: Features both Automatic and Manual operation modes; Automatic mode supports the selection of different process recipes.
| Specifications | |
| Power Supply | Single-Phase AC220V ±10%, 50Hz, Power: 1 KW |
| Vacuum System | Vacuum Degree Max -0.085 Mpa. (Vacuum source to be supplied by customer or optional vacuum pump; Recommended model: DRV-10) |
| Standard Container | Single Vessel Volume: 150ml — Effective Volume Max. 75ml (Equipped with dual jars) |
| Optional Container | Single Vessel Volume: 30ml — Effective Volume Max. 15ml (Equipped with dual jars and adapters) |
| Container Material | White HDPE (High-Density Polyethylene) |
| Mixing Weight | Max. 150g per jar |
| Revolution Speed | Stepless Speed Regulation (10 – 2000 rpm)
Low Speed: 10 – 1499 rpm (Unlimited duration) High Speed: 1500 – 2000 rpm (Cumulative run time within one process limited to 7.5 min) |
| Rotation Speed | Revolution Speed × 0.6 |
| Balance Adjustment | Dual-jar mixing requires equal mass; Single-jar mixing requires a counterweight in the other holder to ensure equal mass balance |
| Time Setting | 1 – 999 Seconds |
| Program Stages | 3 Stages |
| Recipe Parameters | 8 Groups |

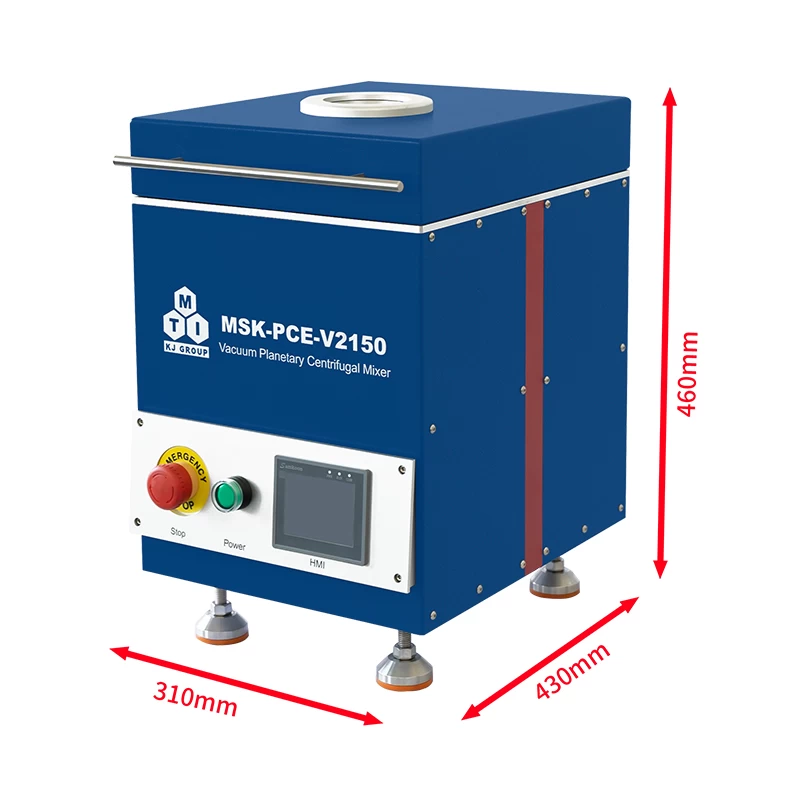

| Equipment Dimensions | 430mm (L) × 310mm (W) × 500mm (H); Open Lid Height: 830mm |
| Net Weight | Approx. 60 kg |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
