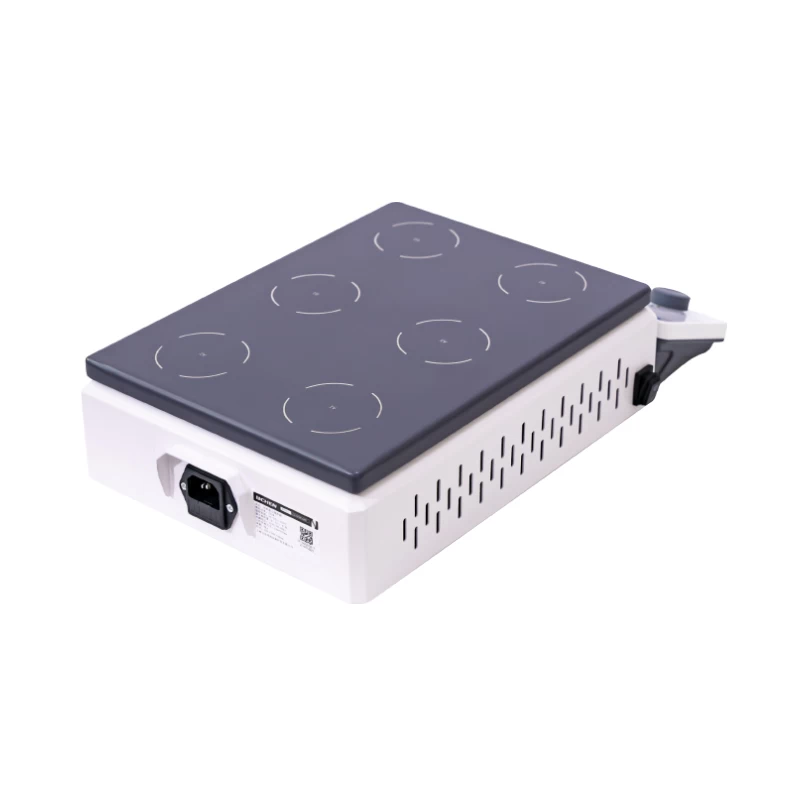

Multi-Position Magnetic Stirrer LCA-MSM-6HD

Multi-Position Magnetic Stirrer LCA-MSM-6HD

Application Range

The LCA-MSM-6HD is a precision laboratory instrument engineered for liquid mixing applications. It is designed to stir—or simultaneously heat and stir—low-viscosity liquids and solid-liquid suspensions. Integrated with an advanced temperature control system, the device allows for precise heating and maintenance of sample temperatures to meet specific experimental conditions and ensure optimal mixing results.



Model: LCA-MSM-6HD

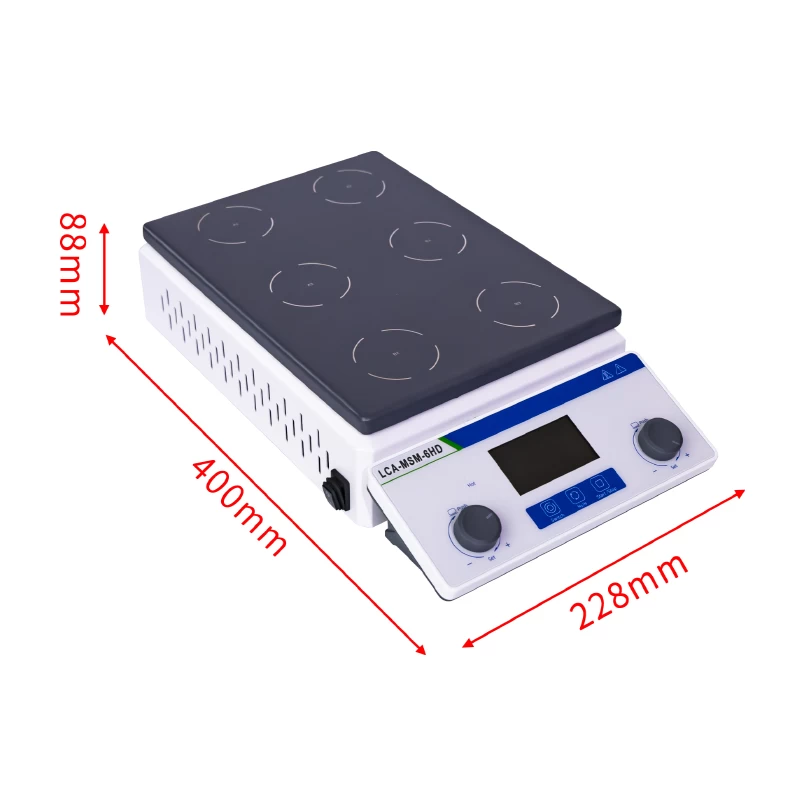

Dimensions: L228mm*W398mm*H88mm

Net Weight: 6kg

Category:
Share your love

Features

  • Versatile Operation Modes: Features a one-key switch between Asynchronous and Synchronous operation. (Note: Asynchronous/Synchronous switching applies to stirring speed only; Heating and Timer functions operate in Synchronous mode only).
  • Advanced Stirring Control: Offers three selectable stirring directions: Forward, Reverse, and Auto-Reverse (automatically switches direction every 5 minutes) to significantly enhance mixing efficiency.
  • Robust Construction: Built with a durable carbon structural steel chassis driven by a powerful DC Brushless Motor.
  • Intuitive Interface: Equipped with a high-resolution LCD screen for clear parameter monitoring.
  • Superior Work Plate: The working surface is constructed from SUS304 Stainless Steel with a high-temperature sintered Teflon (PTFE) spray coating, offering excellent corrosion resistance and high mechanical strength.
  • Precision Positioning: Features a laser-etched work surface for precise vessel alignment, facilitating easier visual operation and interaction.
  • Enhanced Safety & Sealing: Designed with a waterproof power switch and integrated rubber sealing to eliminate gaps and prevent liquid ingress.
  • Overheat Protection: Incorporates a thermosensitive ceramic mechanical switch for fail-safe protection. This eliminates electronic failure risks by automatically cutting power if the detection temperature exceeds 170°C.
Specifications
Power Supply Single-Phase AC220V, 50-60Hz, Power: Approx. 320W
Display Type LCD
Stirring Speed Range 100 ~ 1600 rpm
Time Range 1 min ~ 99h 59min
Temperature Control Range RT (Room Temp) +5°C ~ 150°C
Temperature Accuracy ±3°C (Measured after 20 minutes of stability
Stirring Positions 6 Channels
Max. Stirring Capacity 0.8L (H2O) × 6 Channels
Work Plate Material 304 Stainless Steel + Teflon (PTFE) Coating
Motor Type DC Brushless Motor
Work Area Dimensions L 200mm × W 300mm
Equipment Dimensions Approx. L 228mm × W 398mm × H 88mm
Net Weight Approx. 6kg
