Features
- Planetary Mixing Mechanism: Utilizes simultaneous rotation and revolution to generate powerful centrifugal forces and convection, ensuring thorough material homogenization without the use of invasive mixing blades.
- Integrated Vacuum System: Features a built-in vacuum pump capable of reaching -90kPa, effectively removing sub-micron bubbles and improving material density and conductivity.
- Non-Contact Processing: The blade-free design minimizes cross-contamination and facilitates easy cleaning, ideal for high-purity applications.
- Advanced Control: Offers both Automatic and Manual operation modes with programmable multi-step mixing cycles.
- Safety & Monitoring: Equipped with real-time temperature sensors and an overheat alarm/shutdown mechanism to protect sensitive samples.
- Multifunctional: Performs mixing, dispersion, and degassing simultaneously in a single step.
| Specifications: | |
| Model | MSK-PCE-V2300 |
| Power Supply | Single Phase AC220V ±10%, 50Hz, 2.6kW |
| Mixing Principle | Planetary Gravity
(Rotation/Revolution fixed ratio = 0.6) |
| Transmission Type | Gear Drive |
| Revolution Speed (Main) | Variable Speed: 10 – 2000 RPM (Accuracy: ±1 RPM)
• Low Speed (10-1499 RPM): Unlimited duration • High Speed (1500-2000 RPM): Max. 3 minutes continuous run per cycle |
| Rotation Speed (Spin) | 0.6 × Revolution Speed (Fixed Ratio) |
| Vacuum Capability | Max. -90 kPa (under standard atmospheric pressure) |

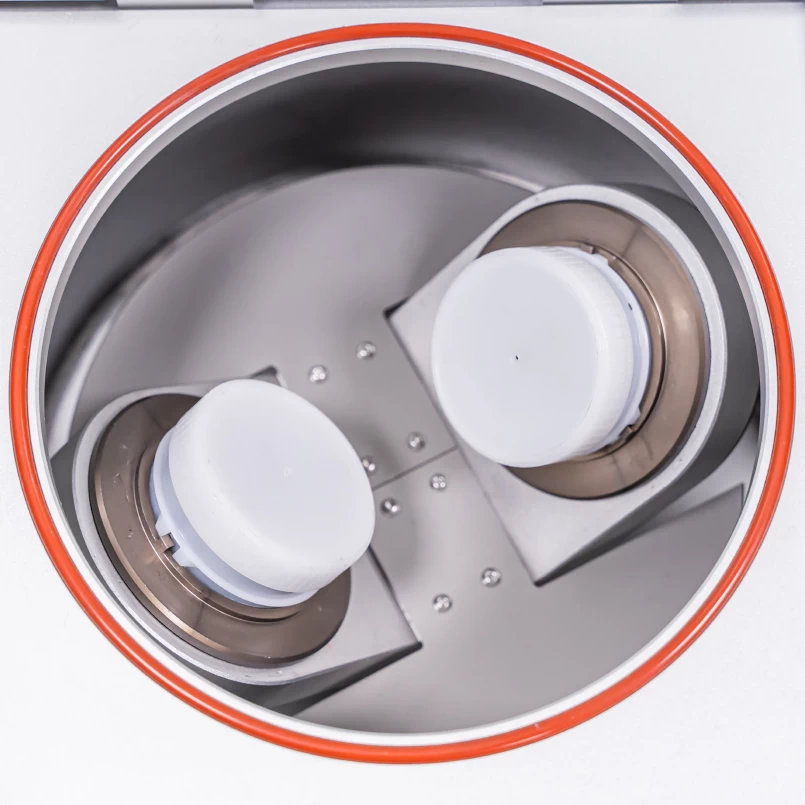

| Standard Containers | 300mL Jar (Dual Configuration)
• Effective Processing Volume: Max. 150mL per jar |
| Container Materials | • Container & Outer Lid: HDPE (High-Density Polyethylene)
• Inner Lid: PP (Polypropylene) |
| Optional Adapters | • 100mL Jar: Max. effective vol. 50mL (requires adapter)
• 200mL Jar: Max. effective vol. 100mL (requires adapter) |
| Balance Requirement | Strict Weight Balancing Required: The total mass (sample + jar + adapter) on both sides must be equal. Use a counterweight or dummy sample if processing a single jar. |
| Timer Setting | 1 – 999 seconds |
| Programmable Steps | 3 Segments per recipe |
| Memory Slots | 8 Programmable Recipe Groups |

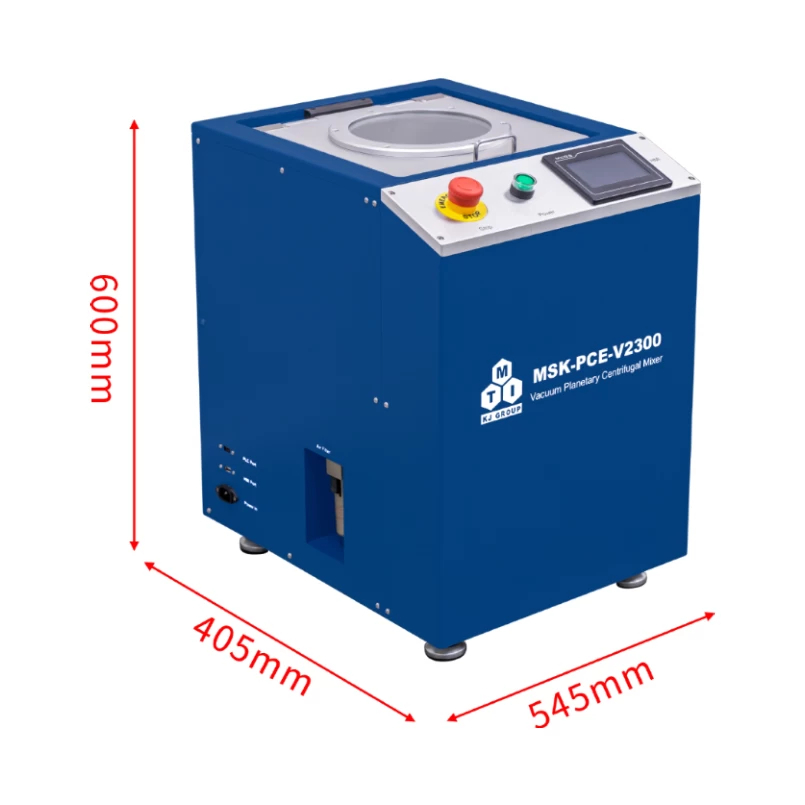

| Dimensions | Approx. 545mm (L) × 405mm (W) × 600mm (H) |
| Net Weight | Approx. 58 kg |
Operational Notes & Disclaimer
- Balancing: To prevent damage to the planetary gear system, ensure that the two mixing containers are perfectly balanced by weight before operation.
- Product Updates: Please note that product images, descriptions, and technical parameters are for reference only. Due to continuous product improvement, specifications are subject to change without prior notice. Please confirm the latest details with our sales team before ordering.
