Features
- Patented design electric heating roller, featuring precise temperature control, environmental friendliness and no pollution.
- Integrated electric control box and main machine, operable inside a glove box for easy maintenance.
- Optional independent unwinding and winding device to realize continuous lamination of coiled materials (optional function).
- Equipped with a precision pressure regulating valve, enabling uniform and adjustable lamination pressure.

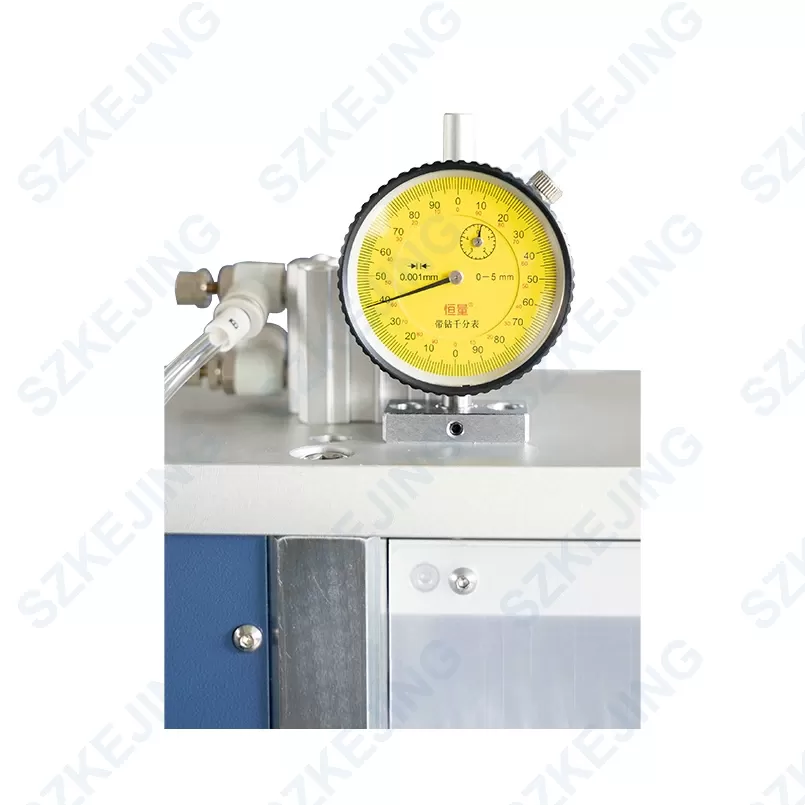

- Manual adjustment of the gap between the two rollers.
- High lamination precision and excellent temperature uniformity.
- Equipped with leakage protection function, ensuring safety and reliability.
- Protective and anti-scalding design.
- Compact and small-sized equipment with a small footprint.
Specifications
| Power | Single-phase AC220V±10%, Frequency 50/60Hz, Power 600W |
| Air Supply | Compressed air at 0.5-0.8MPa |
| Operating Environment | Recommended ambient temperature 25±3℃, free from vibration and electromagnetic interference |
| Substrate Width | Max. 180mm |
| Guide Roller Width | 200mm |
| Lamination Width | Max. 180mm |
| Lamination Speed | Max 0.7m/min |
| Steel Roller Specification | Diameter Φ80*220mm |
| Steel Roller Hardness | Surface hardness ≥ HRC58° |
| Steel Roller Material | High-temperature alloy steel, with hard chrome plating on the surface (thickness ≥ 0.08mm) |
| Steel Roller Temperature | Maximum heating temperature of the roller: 80℃, temperature uniformity of the roller surface ≤ ±2.5℃ |
| Rubber Roller Specification | Diameter Φ80*220mm |
| Rubber Roller Material | EPDM rubber (Ethylene Propylene Diene Monomer) for the surface layer, stainless steel for the core |
| Lamination Drive | Equipped with a special motor, suitable for use under argon atmosphere |
| Lamination Gap | Manually adjustable |

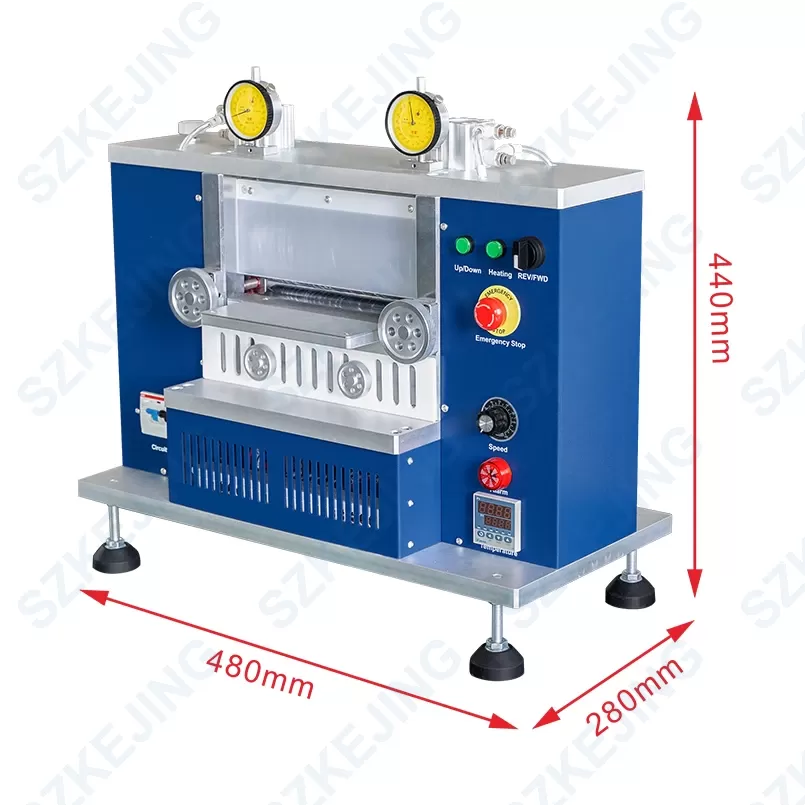

| Dimension | Host unit L480mm*W280mm*H440mm |
| Weight | About 70kg |
| Warranty | 1 year |
