Features
- Low demand for coating materials and substrates, easy‑to‑use, suitable for process verification;
- High precision and wear resistance of coated substrates;
- Coated substrates equipped with vacuum adsorption function, vacuum pump is standard;
- Various coaters are available as optional accessories.
| Specifications | |
| Power Supply | Single-phase AC220V±10%, 50Hz, 420W |
| Coating Type | Single‑piece blade coating |
| Environment | Normal environment, glove box (Custom flanges required for special environments such as nitrogen and argon) |
| Coating Range | Max. L600 × W250 mm (Allowable coating area; actual coating size depends on coater parameters) |
| Coating Speed | 20‑96 mm/s, manually adjustable |
| Coating Applicator | 1. Model: Se‑KTQ‑250 (optional)
2. Blade precision: Straightness ≤4 μm 3. Blade height: 0‑6 mm, manually adjustable |
| Coating Dimension | Max. L600 × W250 mm (related to actual coating material quantity) |
| Coating Thickness | 1. Accuracy: ±3 μm
2. Reference for graphite anode coating: viscosity 2000 mPa·s, solid content 45% |

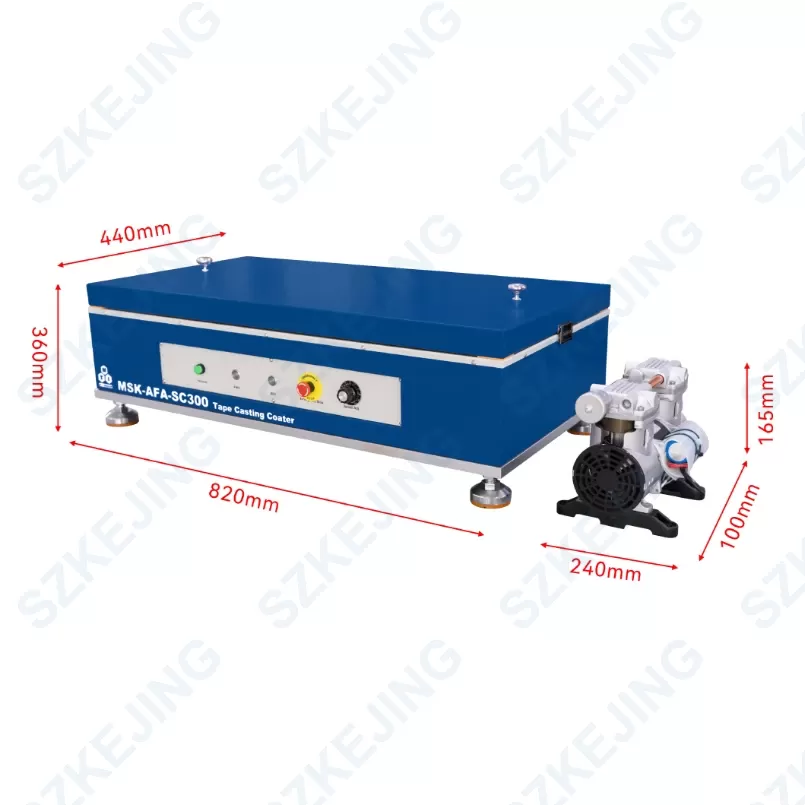

| Equipment Dimensions | Coater: Approx. L820×W440×H360 mm (with sealing cover)
External vacuum pump: Approx. L240×W100×H165 mm (excluding aviation socket and air pipe connector) |
| Weight | Coater: Approx. 70 kg (with sealing cover)
External vacuum pump: Approx. 6 kg (excluding aviation socket and air pipe connector) |
