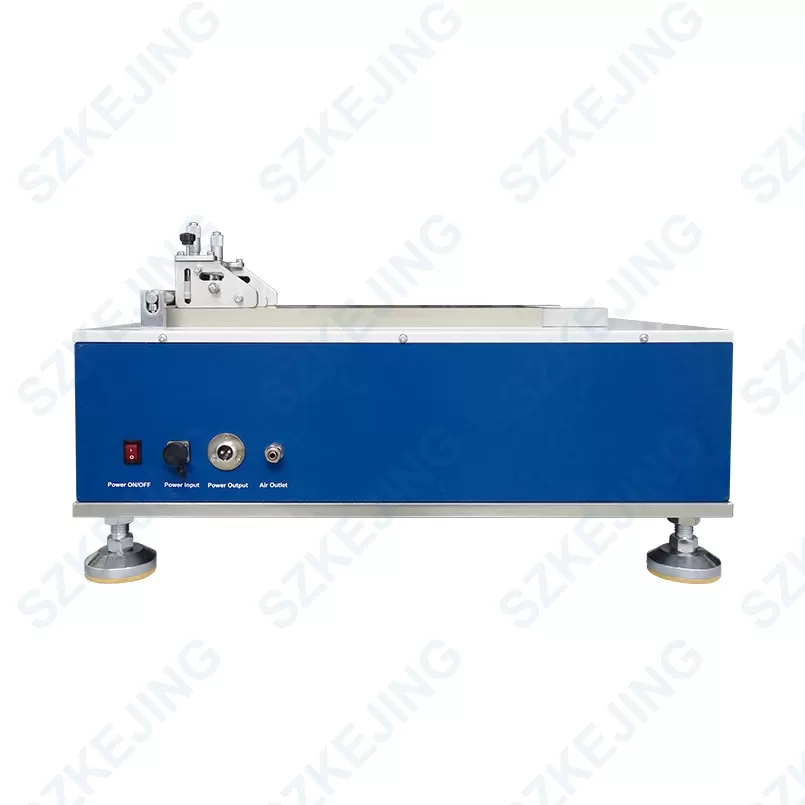

Features
- Low consumption of coating material and substrates, easy‑to‑operate, ideal for process verification.
- The coating substrate features high precision and excellent wear resistance.
- The coating substrate is equipped with vacuum adsorption function, with an external vacuum pump.
- Multiple coating applicators are available as optional accessories.
- Suitable for operation inside glove boxes.
- Compliant with UL certification standards.
| Specifications | |
| Power Supply | Single-phase AC110-220V±10%, 50/60Hz, 120W |
| Coating Type | Single‑piece blade coating |
| Environment | Normal environment, glove box (nitrogen, argon) |
| Coating Range | Max. L300 × W150 mm (allowable coating area; actual coating size depends on coating applicator parameters) |
| Coating Speed | 20‑96 mm/s, manually adjustable |
| Coating Applicator | 1. Model: Blade KTQ‑150S‑C (optional)
2. Blade precision: Straightness ≤4 μm 3. Blade gap height: 0‑3 mm, manually adjustable 4. Precision adjustment: a. Graduated micrometer head (standard): 10 μm b. Digital micrometer head (optional): 1 μm |
| Coating Dimension | Max. L300 × W150 mm (dependent on actual coating material quantity) |
| Coating Thickness | 1. Precision: ±3 μm
2. Reference condition: graphite negative electrode coating speed, viscosity 2000 mPa·s, solid content 45% |
| Equipment Dimensions | Coater: approx. L590 × W340 × H270 mm (including sealing cover)

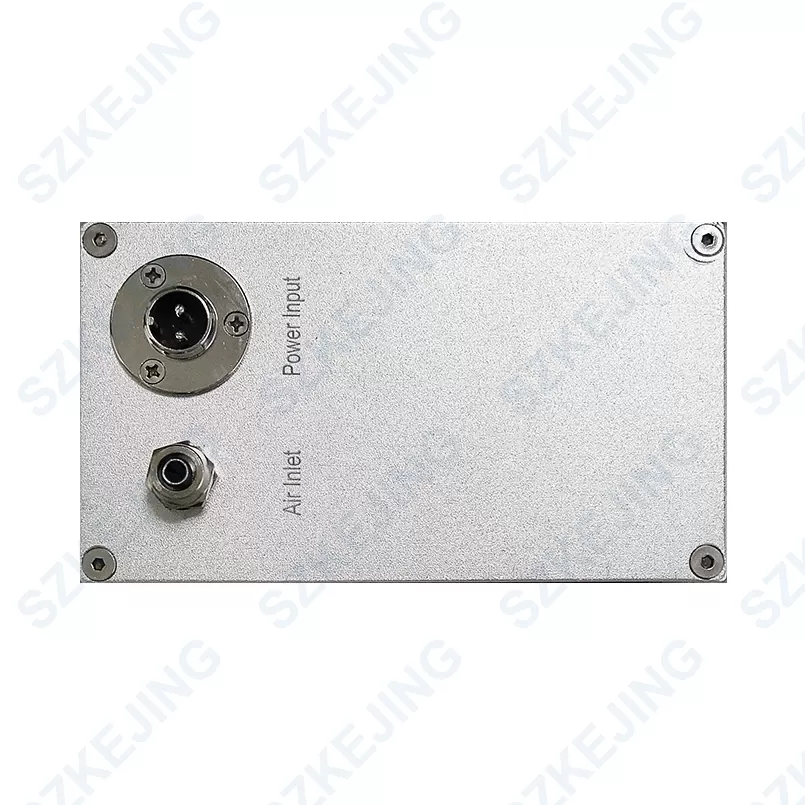

External vacuum pump: approx. L150 × W90 × H140 mm (excluding aviation sockets and air pipe connectors) Coating applicator: approx. L190 × W80 × H85 mm |
| Weight | Coater: approx. 50 kg (including sealing cover)
External vacuum pump: approx. 1 kg (excluding aviation sockets and air pipe connectors) Coating applicator: approx. 0.9 kg |
